Simulation Workflow

[workflow].mode = "simulation" runs one forward model. It turns one validated configuration into one persisted run with solver outputs, catalog rows, result stores, and optional figures.

Use it when the question is: “Given this physical setup, what does one model run produce?”

Functional Role

The simulation workflow is the canonical HydroModPy forward run. It usually performs these phases:

resolve workspace
    -> build geographic context
    -> load requested data
    -> build supports and mesh input
    -> build process plan
    -> run solver backend(s)
    -> ingest outputs
    -> render figures
    -> finalize catalog and result store

It is appropriate for:

• one MODFLOW-NWT, MODFLOW 6, or Boussinesq run;

• steady or transient flow simulations;

• solver-specific option testing;

• producing persisted results for later inspection or comparison.

It is not the right first choice when the watershed geometry is still uncertain. Run overview first in that case.

Typical Command

hmp run examples/projects/06_vire_selune/run_vire_mf6_irregular.toml

Reference examples:

• examples/projects/00_getting_started/project.toml

• examples/projects/02_nancon_watershed/run_transient_nwt.toml

• examples/projects/06_vire_selune/run_vire_mf6_irregular.toml

• examples/projects/06_vire_selune/run_vire_nwt.toml

• examples/projects/09_comparison_workflow/base_dupuit_shared_mesh.toml

The figures below use the committed gallery case headwater_100km2_outlet_2_mf6_transient_reference. It is a more complete transient MODFLOW 6 example than a minimal launcher run: it combines a natural headwater support, a transient recharge chronology, integrated discharge response, and water-table diagnostics.

Representative Results

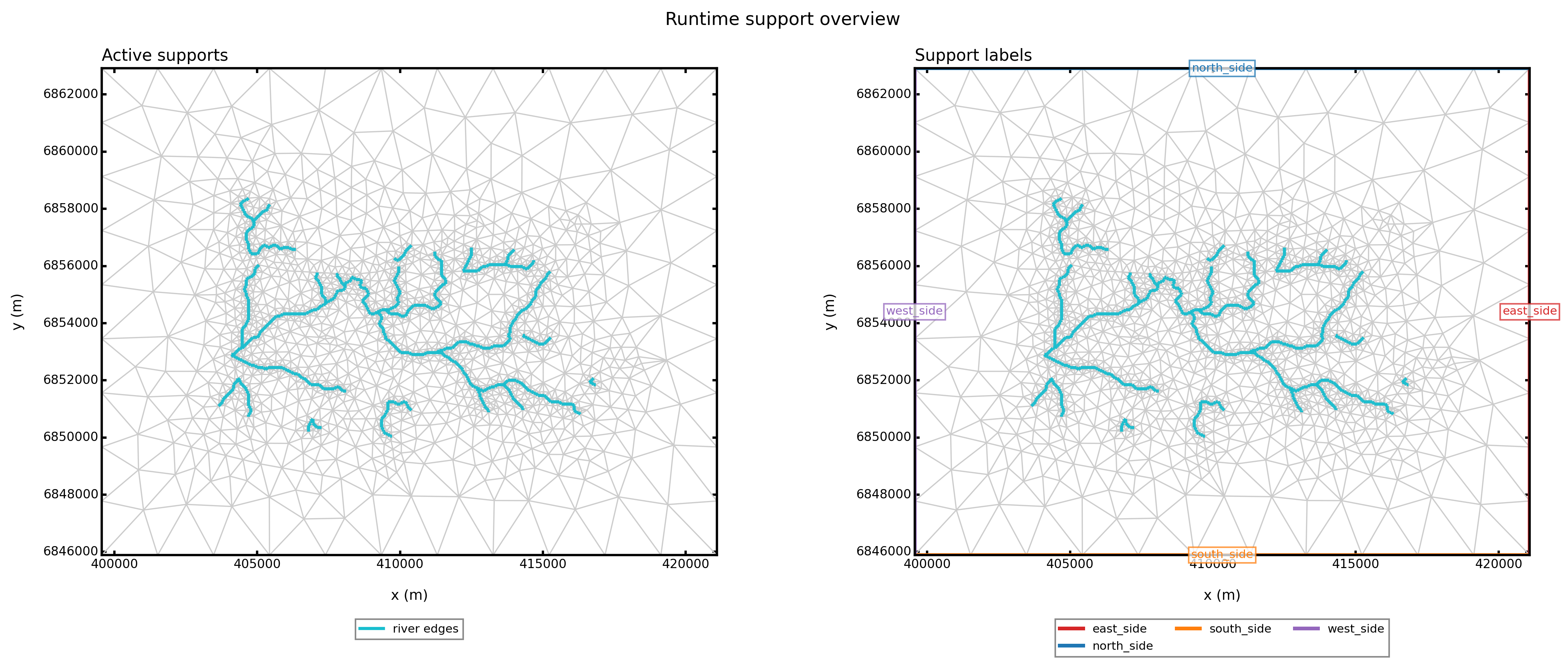

The support overview shows the spatial support that the solver actually used: watershed, outlet, hydrographic context, and discretization footprint. This is the first figure to inspect when a simulation result looks suspicious, because many numerical symptoms start as support-definition errors.

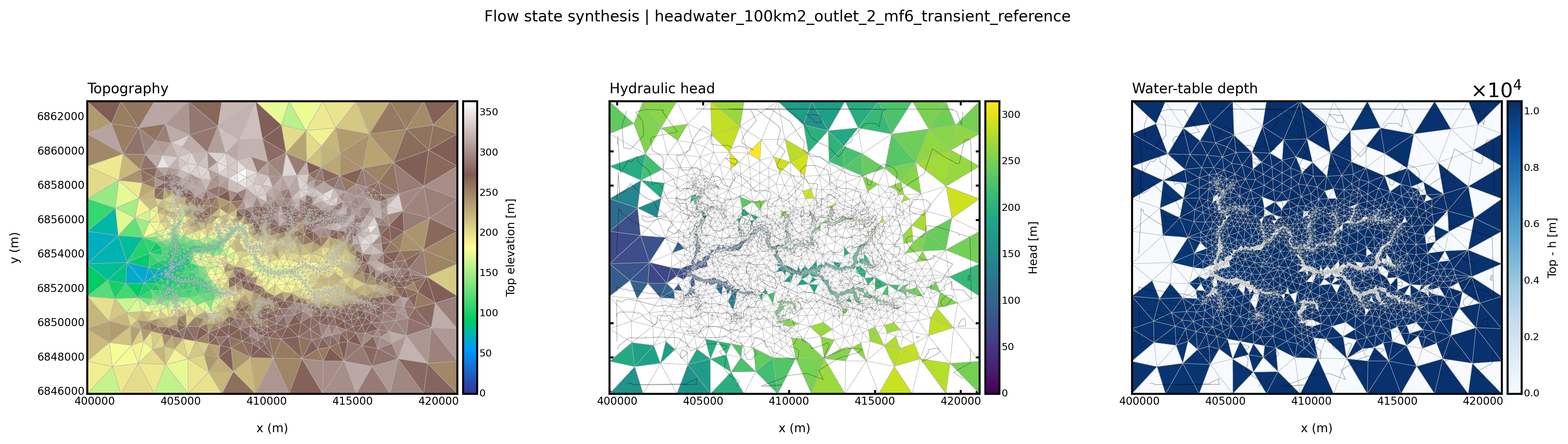

The triptych is the main state diagnostic for one forward run. It puts the spatial response, active domain, and hydraulic state side by side so that the user can read the simulated behaviour before moving to budgets or downstream analytics.

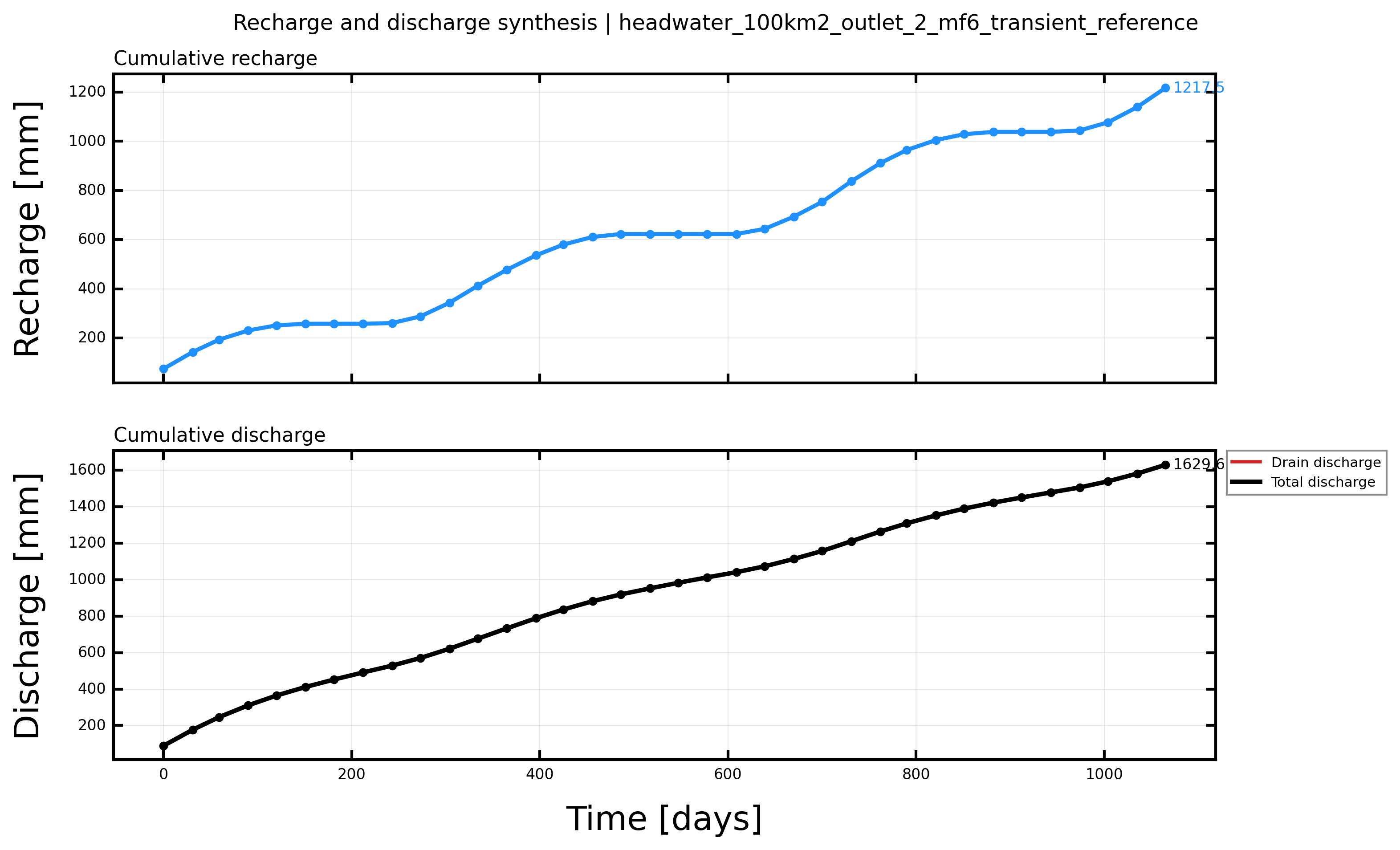

The cumulative recharge/discharge curve checks whether the transient forcing chronology produces a plausible integrated hydraulic response. It is a compact mass-balance diagnostic, not only a pretty hydrograph.

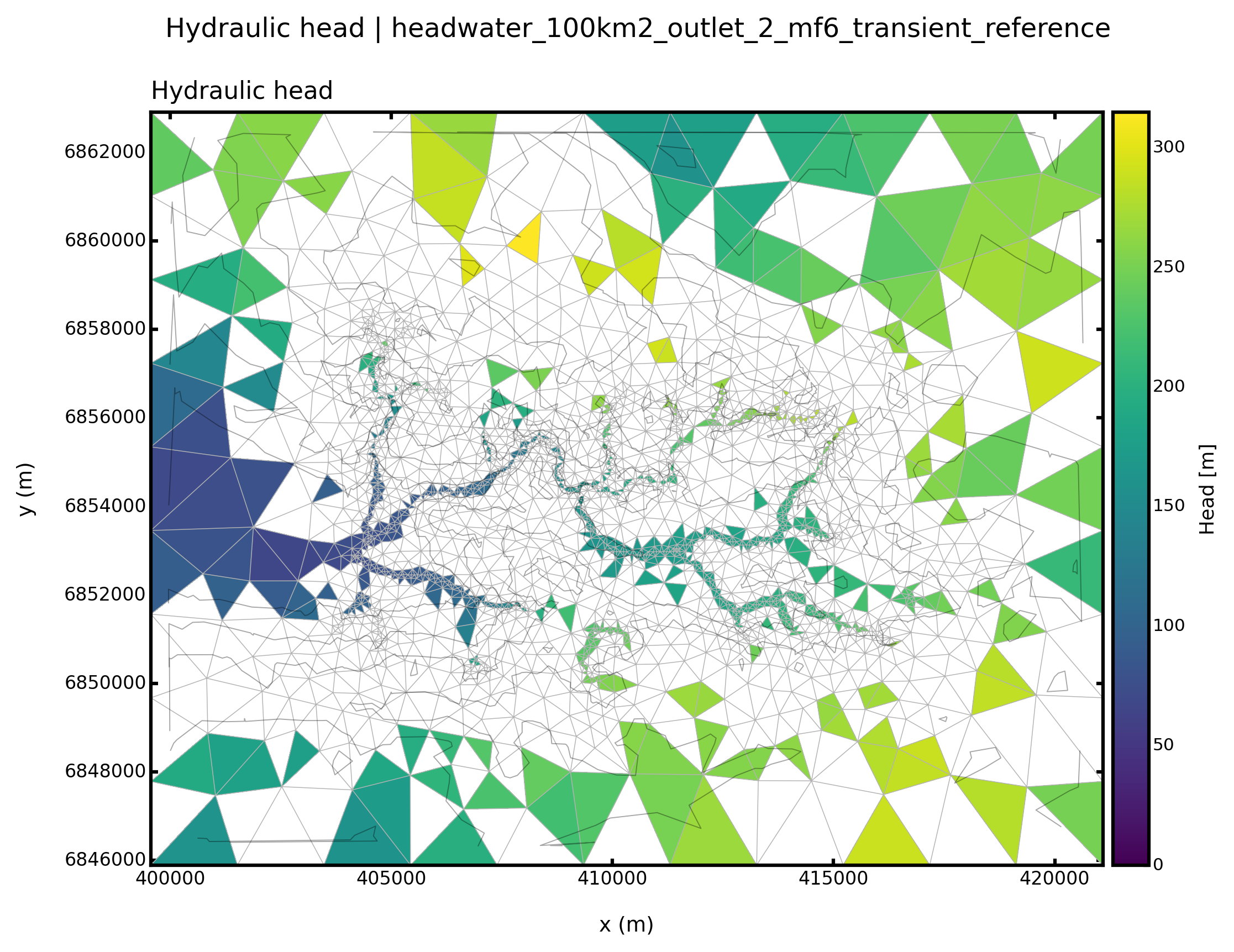

Water-table elevation makes the hydraulic gradient visible in physical coordinates. Use it to check whether the simulated heads are consistent with terrain, outlet position, and expected flow direction.

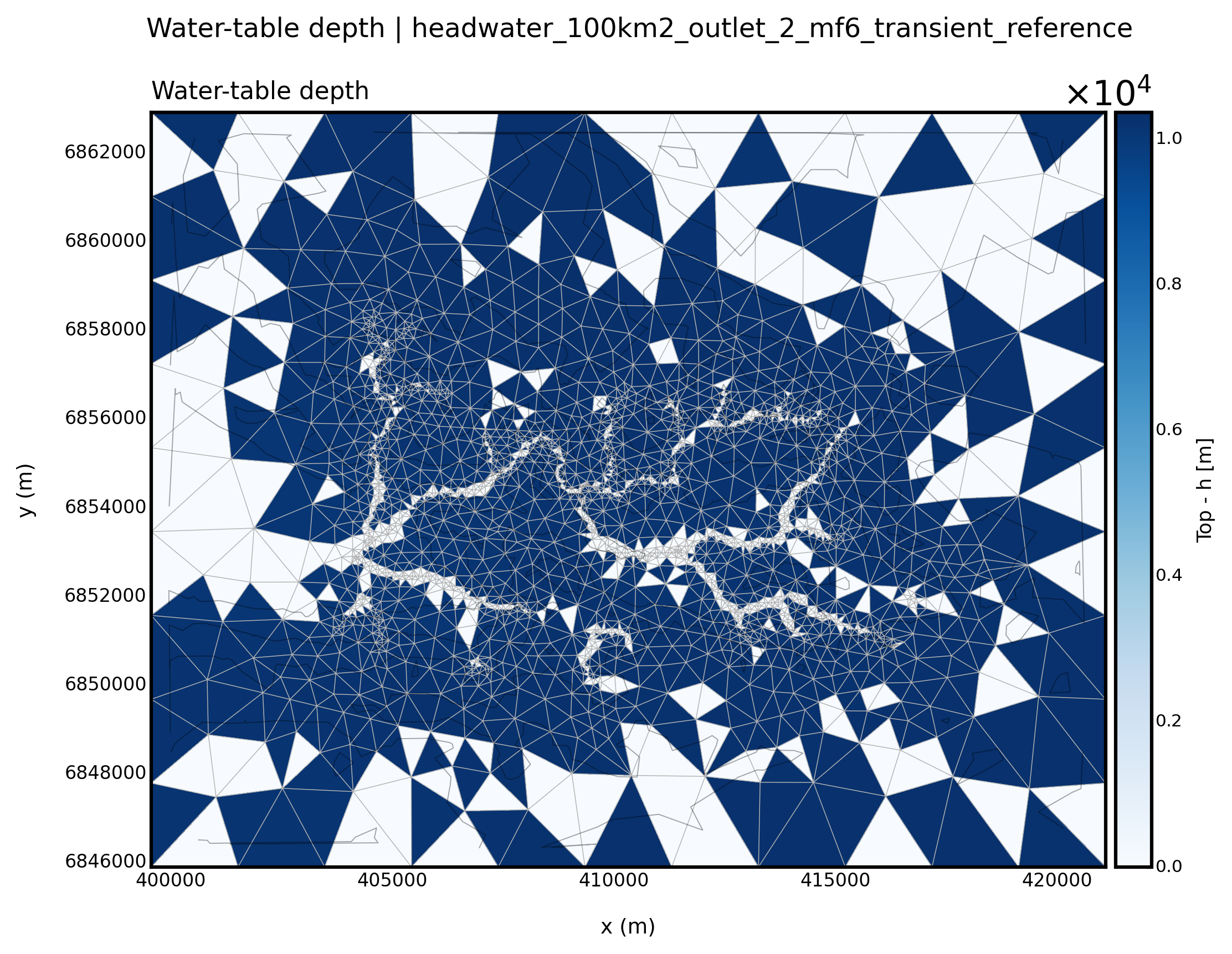

Water-table depth is often the more operational view: it shows where the simulated aquifer is near the surface or deep below ground, which is useful for diagnosing dry cells, drainage assumptions, and recharge sensitivity.

Minimal Shape

[workflow]
mode = "simulation"

[workspace]
project_root = "outputs/my_run"

[simulation]
name = "my_first_forward_run"

[simulation.time]
start_datetime = "2020-01-01 00:00:00"
end_datetime = "2020-12-31 00:00:00"
step_value = "1 month"

[[simulation.process]]
id = "flow_main"
type = "flow"
solvers = ["modflow6"]

[solver]
backend = { backend = "modflow6" }

Important Parameters

Section / field	Role	Practical guidance
base_config	Inherits a shared project TOML.	Use overlays for run-specific solver, time, or outlet changes.
workflow	Selects the forward-run launcher.	Must be "simulation".
[simulation].name	Human-readable run name in the catalog.	Use a short name that encodes basin, solver, and scenario.
[simulation].run_id	Optional stable output identifier.	Leave empty for filename-derived IDs unless you need strict output naming.
[simulation].on_collision	Controls what happens when a run name already exists.	replace is convenient for iteration; fail is safer for reproducible campaigns.
[simulation.time]	Defines stress-period and forcing alignment.	Check start/end dates and step_value before interpreting transient results.
[[simulation.process]]	Declares process type and active solvers.	Use type = "mesh" for mesh-only preparation, type = "flow" for flow solves, and type = "transport" for transport solves.
[flow]	Declares flow process parameters and boundary conditions.	This is where physical assumptions become runtime parameters.
[mesh_catchment]	Optional runtime catchment mesh used by solver backends.	Include it when MODFLOW 6 or Boussinesq should consume an irregular mesh.
Backend sections	Tune solver-specific behavior.	Use [modflow6.*] or [modflownwt.*] only for backend-specific details.

Time Window Example

[simulation.time]
start_datetime = "2000-01-01"
end_datetime = "2002-12-31"
step_value = "1 month"
coverage_policy = "warn"

coverage_policy = "warn" is useful while preparing data because it surfaces forcing gaps without immediately blocking exploratory runs. Use "error" for production runs when forcing coverage must be complete.

Process Example

[[simulation.process]]
id = "flow_main"
type = "flow"
solvers = ["modflow6"]

The process declaration says what HydroModPy is asked to solve. The backend sections say how a given solver family should solve it.

Mesh-only preparation is also represented as a simulation process, not as a solver:

[[simulation.process]]
id = "mesh_main"
type = "mesh"
backend = "catchment"

This delegates to the [mesh_catchment] runtime and stops before any flow or transport solver.

Outputs To Inspect

After a successful run, inspect in this order:

1. the catalog entry and run metadata;

2. solver logs and convergence messages;

3. support or mesh overview figure;

4. water-table maps and time-series outputs;

5. budget or recharge/discharge figures;

6. persisted Zarr or exported result tables if downstream analysis needs them.

Next Pages

• Simulation Walkthrough

• TOML To Solver Walkthrough

• Groundwater Flow Problem Definition

• Solvers
