Comparison Workflow#

[workflow].mode = "comparison" creates several child simulations from one shared base configuration and compares declared observables.

Use it when the question is: “If the physical case stays fixed, how do solver, mesh, or option choices change the outputs?”

Functional Role#

The comparison workflow is an external orchestration layer. It does not ask you to duplicate whole TOML files manually. Instead it:

base simulation TOML
    -> child simulation overlays
    -> generated child TOMLs
    -> child hmp run executions
    -> equivalence audit
    -> observable extraction
    -> metrics and differences
    -> comparison figures and report

It is appropriate for:

  • MODFLOW 6 versus MODFLOW-NWT comparison;

  • MODFLOW 6 versus Boussinesq comparison;

  • structured versus irregular mesh experiments;

  • sensitivity to numerical options while keeping the base case stable;

  • producing stable comparison pages for documentation and teaching.

Typical Command#

Run a public example through the example helper:

python examples/projects/09_comparison_workflow/run_comparison_example.py --case synthetic --show

Or through the public CLI:

hmp run examples/projects/09_comparison_workflow/compare_dupuit_mf6_bouss.toml

Representative Results#

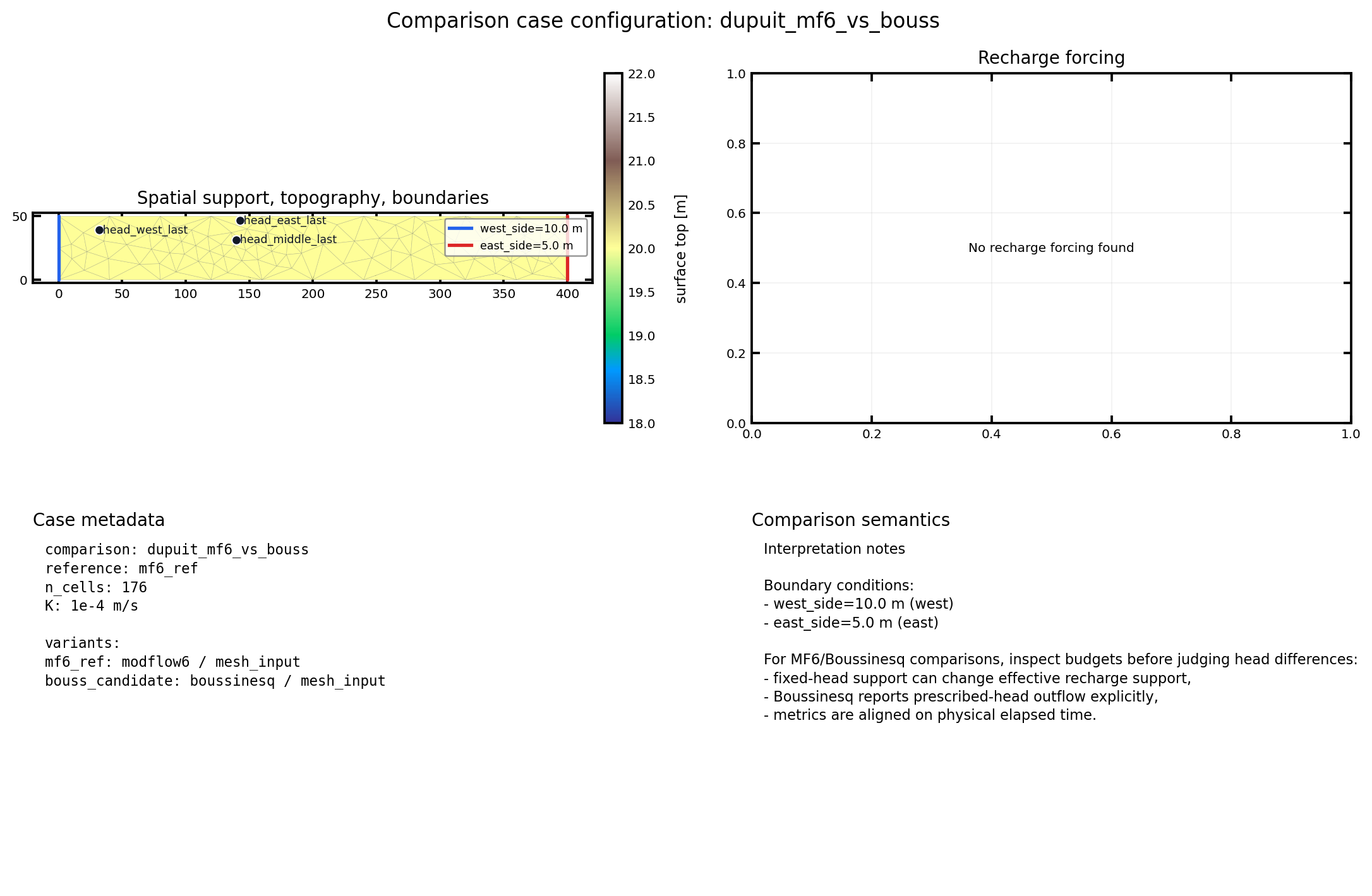

Comparison workflow configuration figure

Fig. 13 The configuration panel shows the shared physical case before any difference metric is interpreted as a solver effect.#

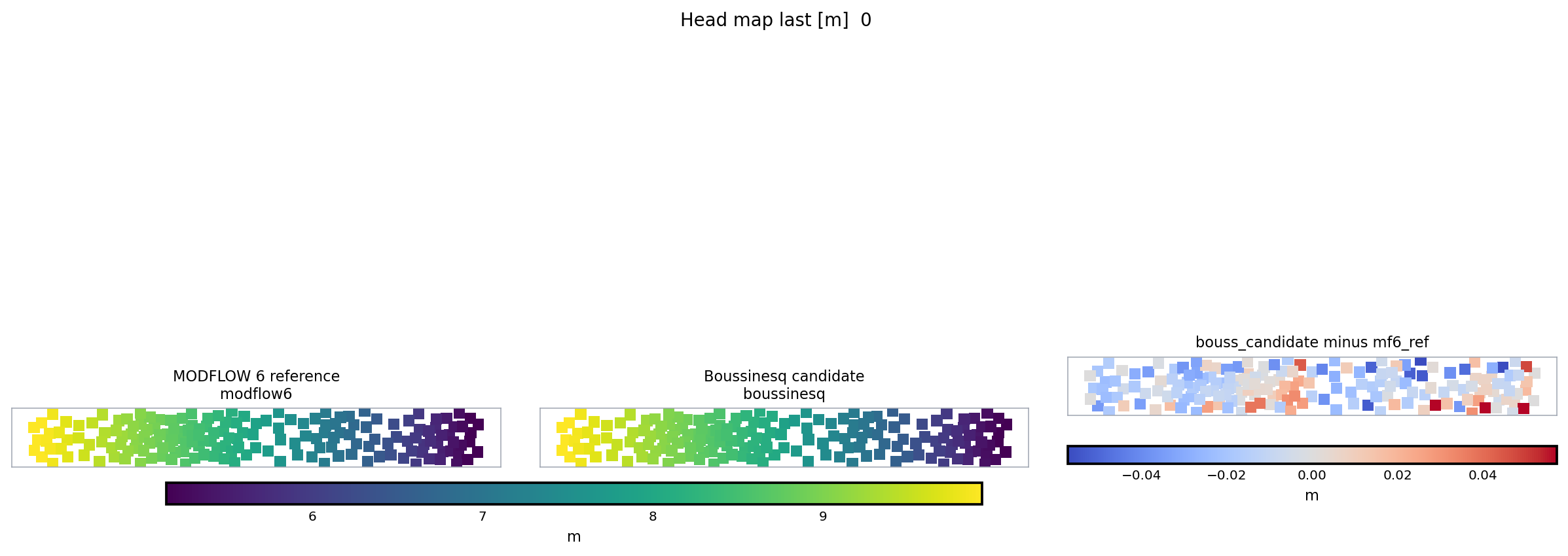

Comparison workflow head-map triptych

Fig. 14 The triptych is the core comparison visual: reference, candidate, and difference are kept in one read order instead of split across separate files.#

Minimal Shape#

[workflow]
mode = "comparison"

[comparison]
comparison_id = "dupuit_mf6_vs_bouss"
base_simulation_config = "base_dupuit_shared_mesh.toml"
output_root = "outputs/dupuit_mf6_vs_bouss"
reference_simulation = "mf6_ref"
continue_on_error = false

[comparison.execution]
backend = "subprocess_hmp_run"
max_parallel_runs = 1
run_simulations = true
keep_generated_configs = true

[[comparison.simulation]]
id = "mf6_ref"
label = "MODFLOW 6 reference"
solver = "modflow6"
mesh_mode = "mesh_input"

[[comparison.simulation]]
id = "bouss_candidate"
label = "Boussinesq candidate"
solver = "boussinesq"
mesh_mode = "mesh_input"

[[comparison.observable]]
name = "head_map_last"
variable = "watertable_elevation"
support = "map"
time = "last"
unit = "m"

Important Parameters#

Section / field

Role

Practical guidance

workflow

Selects the comparison launcher.

Must be "comparison".

[comparison].comparison_id

Names the experiment.

Used in reports, output paths, generated child names, and metrics.

base_simulation_config

Shared physical base case.

Keep all common geometry, forcing, time, and physical assumptions here.

output_root

Stores comparison artifacts.

Use a dedicated folder, not a child simulation folder.

reference_simulation

Defines the baseline for differences.

Pick the most trusted or conventional variant.

continue_on_error

Controls failure policy.

Keep false for strict studies; use true for exploratory grids.

[comparison.execution]

Controls child execution.

subprocess_hmp_run keeps child runs close to normal CLI behavior.

keep_generated_configs

Keeps generated child TOMLs.

Keep enabled while debugging overlays and audit mismatches.

[comparison.audit]

Checks same-case consistency.

Use strict_same_case to catch accidental physical differences.

[[comparison.simulation]]

Declares one child variant.

Use overlays for solver-specific changes only.

[[comparison.observable]]

Declares what to compare.

Prefer a small set of maps, points, and budgets before expanding.

[comparison.fine_raster]

Optional common rasterization for map comparisons.

Use it when comparing maps from different supports.

Overlay Example#

Each child simulation can override a small part of the base TOML:

[comparison.simulation.overlay.modflow6.runtime]
mf6_ims_complexity = "SIMPLE"
mf_verbose = false

[comparison.simulation.overlay.modflow6.process_specific]
vka = 1.0

Keep overlays narrow. If two child simulations differ in geometry, forcing, time window, and solver at once, the comparison will be hard to interpret.

Observable Example#

[[comparison.observable]]
name = "head_middle_last"
variable = "watertable_elevation"
support = "point"
cell_index = 88
time = "last"
unit = "m"

Point observables are cheap and clear. Map observables are richer but usually need careful support alignment, especially when meshes differ.

Allowed Variant Overlays#

The current public contract intentionally limits what can change between child simulations. Allowed overlay families are:

  • generic simulation metadata,

  • solver selection and solver-specific options,

  • display options,

  • a narrow flow overlay used for runtime-backend selection.

Sections that change physics ([domain], [flow.bc], [flow.sinks_sources]) are rejected. Cross the boundary by writing a different base config rather than a forbidden overlay. If the physical case changes too much between children, the result is no longer a clear simulation comparison.

When To Use This Workflow#

Use it when the goal is:

  • backend comparison on one shared support,

  • structured-versus-irregular discretization comparison,

  • numerical-option sensitivity on one fixed physical case,

  • production of stable difference figures and metrics.

Do not use it as a substitute for:

  • a first learning walkthrough,

  • analytical validation,

  • a fully free-form multi-physics experiment where every child case changes physically.

What You Should Inspect First#

Read the artefacts in this order:

  1. comparison_manifest.json for traceability across all artefacts.

  2. comparison_audit.md (or comparison_audit.json) to confirm the workflow still considers the child runs as one comparable case.

  3. comparison_report.md for reference variant, candidate variants, observables, and main outputs.

  4. comparison_figures/case_configuration.png for the orientation panel: mesh, topography (when available), detected fixed-head boundaries, point/outlet observables, and recharge forcing.

  5. comparison_metrics.csv and comparison_differences.csv for the bias, MAE, RMSE, and max-error quantification.

  6. comparison_figures/*triptych*.png to locate the discrepancy spatially: reference field, candidate field, candidate-minus-reference.

  7. Child run outputs only if a metric needs explanation.

When the runs expose canonical hydrographic networks, also inspect hydrographic_network_metrics.csv. If a variant is missing one of the canonical roles, hydrographic_network_metrics_skipped.json records the reason instead of silently dropping the export.

For the simulated active drainage signal, inspect:

  • simulated_active_network_metrics.csv

  • simulated_active_network_metrics_skipped.json

  • simulated_active_network_overlap_metrics.csv

  • simulated_active_network_overlap_metrics_skipped.json

  • simulated_active_network_distance_metrics.csv

  • simulated_active_network_distance_metrics_skipped.json

The first pair summarizes active-network occupancy from accumulation_flux. The second pair compares that occupancy against the observed reference network after rasterizing it onto the simulation mesh. The third pair adds bidirectional cell-centroid distances between active simulated cells and the same reference network.

For transient MODFLOW 6 versus Boussinesq examples, inspect the budget diagnostics before interpreting head metrics alone. The same physical case can still expose solver-specific accounting semantics, for example whether recharge is applied on fixed-head cells or exported as prescribed-head outflow. The workflow writes comparable_outflow_total_m3_s in the budget exports as drainage_total_m3_s + surface_excess_total_m3_s and should be preferred when the question is the total groundwater release rather than the native mechanism that produced it.

When the Boussinesq run exposes lower-obstacle state histories, also inspect boussinesq_obstacle_diagnostics.csv. It reports min(h-z_bot), potential negative storage volume, active q_dry cells, and surface-excess cells for each saved snapshot.

Each materialized comparison may also expose a browser-readable page at web/index.html. Treat it as the standard access point for a first review: it links the audit, metrics, key figures, flux dashboard, and CSV exports without replacing the underlying machine-readable files. Persisted child simulations still belong to the normal simulation catalog; the comparison folder is indexed locally by comparison_manifest.json.

If you want a strict reading order once the run is finished, continue with Comparison Output Reading Order.

Post-Run Stability Checks#

After a comparison has been materialized, use the stability checker when you want a quick non-regression answer without relaunching the solvers:

python examples/projects/09_comparison_workflow/check_comparison_stability.py

The checker reads the already written comparison outputs:

  • comparison_manifest.json for completed variants,

  • comparison_audit.json for the accepted audit status,

  • comparison_metrics.json for explicit metric thresholds,

  • selected files under comparison_figures/.

Default targets live in examples/projects/09_comparison_workflow/stability_targets.toml. The first locked cases are:

  • dupuit_mf6_vs_bouss for a compact synthetic shared-mesh check,

  • natural_mesh_10km2_transient_pulse_mf6_vs_bouss for the controlled transient pulse case,

  • nancon_transient_seasonal_hydrography_mf6_vs_bouss as a broad Nancon stress-test sentinel.

The Nancon target is deliberately loose. It is useful for detecting sudden regressions in a realistic workflow, but it is not yet a tight accuracy claim: current MF6/Boussinesq differences remain large and configuration-sensitive.

Current Limits#

  • Execution is sequential.

  • The strongest comparisons are those that share one saved support.

  • Cross-mesh comparisons rely on observables and derived products, not on a universal cell-to-cell correspondence.

  • The natural Boussinesq cases remain intentionally reduced and controlled.
