Comparison Output Reading Order#

Use this page after running one comparison case such as the examples in examples/projects/09_comparison_workflow/.

Its purpose is simple: help you decide what to open first, and what each file really proves.

If you have not yet run a comparison, start with Simulation Comparison Workflow.

What The Workflow Produces#

One comparison run usually leaves two kinds of artifacts:

  • normal child simulation outputs, one folder per generated child TOML;

  • one comparison output folder that summarizes the differences between those child runs.

The comparison output folder is the right place to start. Its role is to make the evidence readable without reopening each child simulation manually.

Persistence Model#

Child simulations keep the normal HydroModPy persistence model: simulation metadata are stored in the workspace/project catalog, while fields and tabular products live in the result storage controlled by that catalog.

The comparison folder is different. It is a post-processing layer above those runs, not a simulation run of its own. Its HTML, CSV, JSON, Markdown, and PNG files are therefore written as standalone artifacts under the comparison output root and indexed by comparison_manifest.json.

That means:

  • the child run results remain queryable through the simulation catalog;

  • comparison artifacts are discoverable from comparison_manifest.json;

  • web/index.html is a human-readable entry point, not the source of truth;

  • if fleet-scale queries over many comparison reports become necessary, the right extension is a dedicated comparison catalog rather than storing report HTML and images inside the simulation catalog.

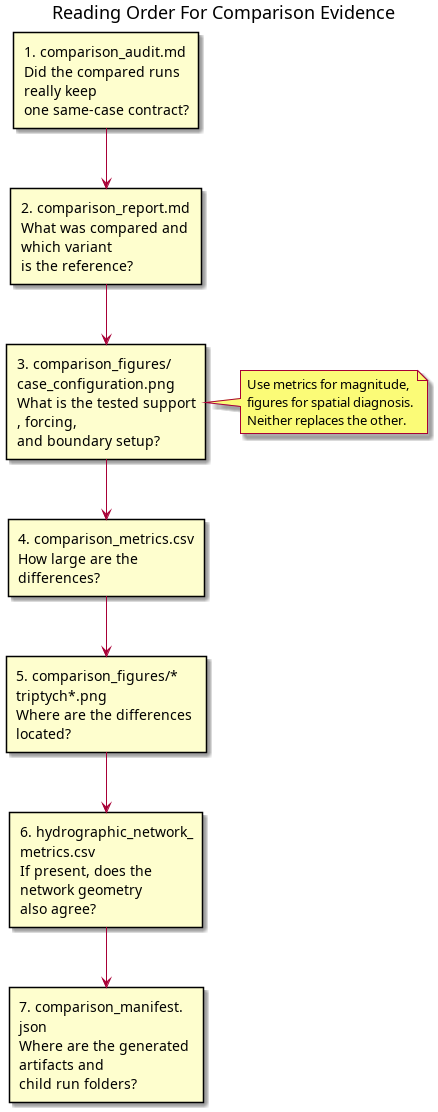

Reading Order#

@startuml title Reading Order For Comparison Evidence top to bottom direction skinparam componentStyle rectangle skinparam wrapWidth 180 skinparam maxMessageSize 180 rectangle "1. comparison_audit.md\nDid the compared runs really keep\none same-case contract?" as Audit rectangle "2. comparison_report.md\nWhat was compared and which variant\nis the reference?" as Report rectangle "3. comparison_figures/case_configuration.png\nWhat is the tested support, forcing,\nand boundary setup?" as Config rectangle "4. comparison_metrics.csv\nHow large are the differences?" as Metrics rectangle "5. comparison_figures/*triptych*.png\nWhere are the differences located?" as Triptych rectangle "6. hydrographic_network_metrics.csv\nIf present, does the network geometry\nalso agree?" as Hydro rectangle "7. comparison_manifest.json\nWhere are the generated artifacts and\nchild run folders?" as Manifest Audit --> Report Report --> Config Config --> Metrics Metrics --> Triptych Triptych --> Hydro Hydro --> Manifest note right of Config Use metrics for magnitude, figures for spatial diagnosis. Neither replaces the other. end note @enduml

Use the order above for a first pass.

  1. web/index.html Open this first when it exists. It is the generated reading page that links the audit, metrics, categorized figures, budget tables, and child outputs.

  2. comparison_audit.md Read this first. It tells you whether the workflow still considers the child runs to be one comparable physical case.

  3. comparison_report.md Read this next for context: reference variant, candidate variants, observables, and main outputs.

  4. comparison_figures/case_configuration.png Open this before judging numerical differences. It shows the support, topography when available, detected fixed-head boundaries, point/outlet observables, and recharge forcing.

  5. comparison_metrics.csv Use this to quantify the gap: bias, MAE, RMSE, and max error.

  6. comparison_figures/*triptych*.png Use the figures to see where the discrepancy is concentrated.

  7. hydrographic_network_metrics.csv Inspect this when the compared runs both expose canonical hydrographic networks and geometry matters to the question.

  8. comparison_manifest.json Keep this for traceability. It is the index that points to the report, metrics, generated configs, and child run folders.

Why This Order Matters#

Starting with figures is tempting, but it is often the wrong first move.

The safer order is:

  • audit first, to confirm that the comparison stayed scientifically coherent;

  • configuration second, to understand the tested case;

  • metrics third, to measure the discrepancy;

  • field figures fourth, to locate and diagnose it.

This avoids one common failure mode: reading an impressive difference map before realizing the compared runs do not actually share the same support, observable, or physical setup.

Case Configuration Figure#

comparison_figures/case_configuration.png is the orientation view. In the HTML report, it appears in the dedicated Configuration du cas section. It is not a solver result; it is a compact description of the case that produced the results.

Use it to answer:

  • what mesh or cell-centroid support is being compared,

  • where the fixed-head boundaries are detected,

  • which point/outlet observables are sampled,

  • which recharge chronicle is applied,

  • which solver variants are compared.

Triptych Figures#

In web/index.html, solver-output figures are grouped by category before being listed:

  • charges hydrauliques;

  • flux, drainage, surface excess and seepage;

  • budgets and balance diagnostics;

  • networks and spatial diagnostics;

  • performance;

  • uncategorized figures when no standard rule applies.

The most useful visual artifact is usually one triptych image:

  1. reference field,

  2. candidate field,

  3. candidate minus reference difference.

That layout is valuable because it keeps three questions separate:

  • what the reference solution looks like,

  • what the candidate solution looks like,

  • where the mismatch is actually located.

For map observables, this is usually the fastest way to see whether the main difference is:

  • one broad bias,

  • one localized hotspot,

  • one boundary effect,

  • or one support-resolution artifact.

How To Read Metrics#

Use the metrics file to answer magnitude questions before making causal claims.

Metric

Main use

What it does not prove by itself

Bias

Detect one systematic signed offset

A small bias does not mean the fields agree everywhere

MAE

Measure the typical absolute discrepancy

It can hide a few strong local outliers

RMSE

Penalize stronger local deviations more heavily

A large RMSE does not tell you where the hotspot is

Max error

Flag the worst local mismatch

One peak does not mean the whole field is poor

Time Columns In CSV Files#

When reading observables.csv, timeseries_long.csv, comparison_differences.csv, or budget_timeseries_long.csv, first check time_role.

  • initial_state is the explicit state before the first transient period.

  • state_snapshot is an instantaneous state such as head or watertable.

  • period_value is an interval value such as recharge, drainage, or a budget component.

  • reduced is a statistic computed from several time rows.

For period_value rows, elapsed_seconds is the end of the period. Budget exports also carry period_index, period_start_seconds, and period_end_seconds so that interval quantities are not confused with instantaneous states.

Comparable Outflow#

For transient MODFLOW/Boussinesq comparisons, do not read drainage and surface excess as interchangeable native variables.

  • drainage_total_m3_s is the outflow through the drainage operator.

  • surface_excess_total_m3_s is the outflow associated with saturation or surface excess when the backend exposes it.

  • comparable_outflow_total_m3_s is a post-processed comparison quantity: drainage_total_m3_s + surface_excess_total_m3_s with missing components treated as zero.

Use comparison_figures/comparable_outflow_dashboard.png and budget_timeseries_wide.csv when the question is “how much water leaves the groundwater system?” Keep the native components visible when the question is “which numerical mechanism produced the outflow?”

Synthetic Shared-Mesh Case#

The smallest comparison case is:

  • examples/projects/09_comparison_workflow/compare_dupuit_mf6_bouss.toml

For a first reading pass, the right order is:

  1. check that both variants use the same irregular shared mesh;

  2. confirm that the observable is watertable_elevation;

  3. read the point observables to see whether the mismatch is upstream, mid-domain, or downstream;

  4. then read the map triptych for the spatial pattern.

This case is intentionally small, which makes it the best entry point for understanding what the workflow does without mixing in too many natural-case complications.

Natural Shared-Mesh Case#

The next stronger example is:

  • examples/projects/09_comparison_workflow/compare_10km2_natural_mesh_mf6_bouss.toml

Here the same reading order still applies, but one extra check matters:

  • inspect the fine-raster products and triptychs as support harmonization artifacts, not as exact cell-to-cell truth.

This case is useful because it keeps one shared natural mesh while moving away from a purely synthetic strip-style setup.

Common Misreadings#

Avoid these shortcuts when reading comparison outputs.

  • A small discrepancy is not the same thing as analytical validity.

  • A clean triptych does not guarantee the same hydrological assumptions upstream.

  • A large difference near one boundary does not automatically mean one solver is wrong; it may expose a support, closure, or boundary-condition mismatch.

  • A fine-raster comparison is a harmonized observable space, not a universal proof of exact mesh equivalence.

When To Open The Child Runs#

Stay in the comparison folder first.

Open child run folders only when one discrepancy needs a second-level diagnosis, for example:

  • to inspect one solver package setup,

  • to check one exported field directly,

  • to read one backend-specific log or budget artifact.

That keeps the workflow readable:

  • comparison folder for evidence,

  • child run folders for diagnosis.
