Overview Workflow#

[workflow].mode = "overview" builds a watershed identity card. It runs the geographic and data-loading parts of HydroModPy without running a groundwater solver.

Use it when the first question is: “What basin am I modelling, what data are available, and does the spatial support look coherent?”

Functional Role#

The overview workflow is a pre-solver inspection workflow. It is designed to:

  • delineate or load the watershed geometry;

  • build the domain and support context;

  • load declared observation and input-data families;

  • render maps, station inventories, and time-series panels;

  • populate the workspace cache so later workflows can reuse data.

It is not designed to:

  • execute MODFLOW or Boussinesq;

  • calibrate parameters;

  • compare solver outputs;

  • make numerical-method claims.

Typical Command#

hmp run examples/projects/04_data_overview/project.toml

Reference examples:

  • examples/projects/04_data_overview/project.toml

  • examples/projects/05_nancon_data_overview/config_overview.toml

  • examples/projects/02_nancon_watershed/run_overview_all_apis.toml

Representative Results#

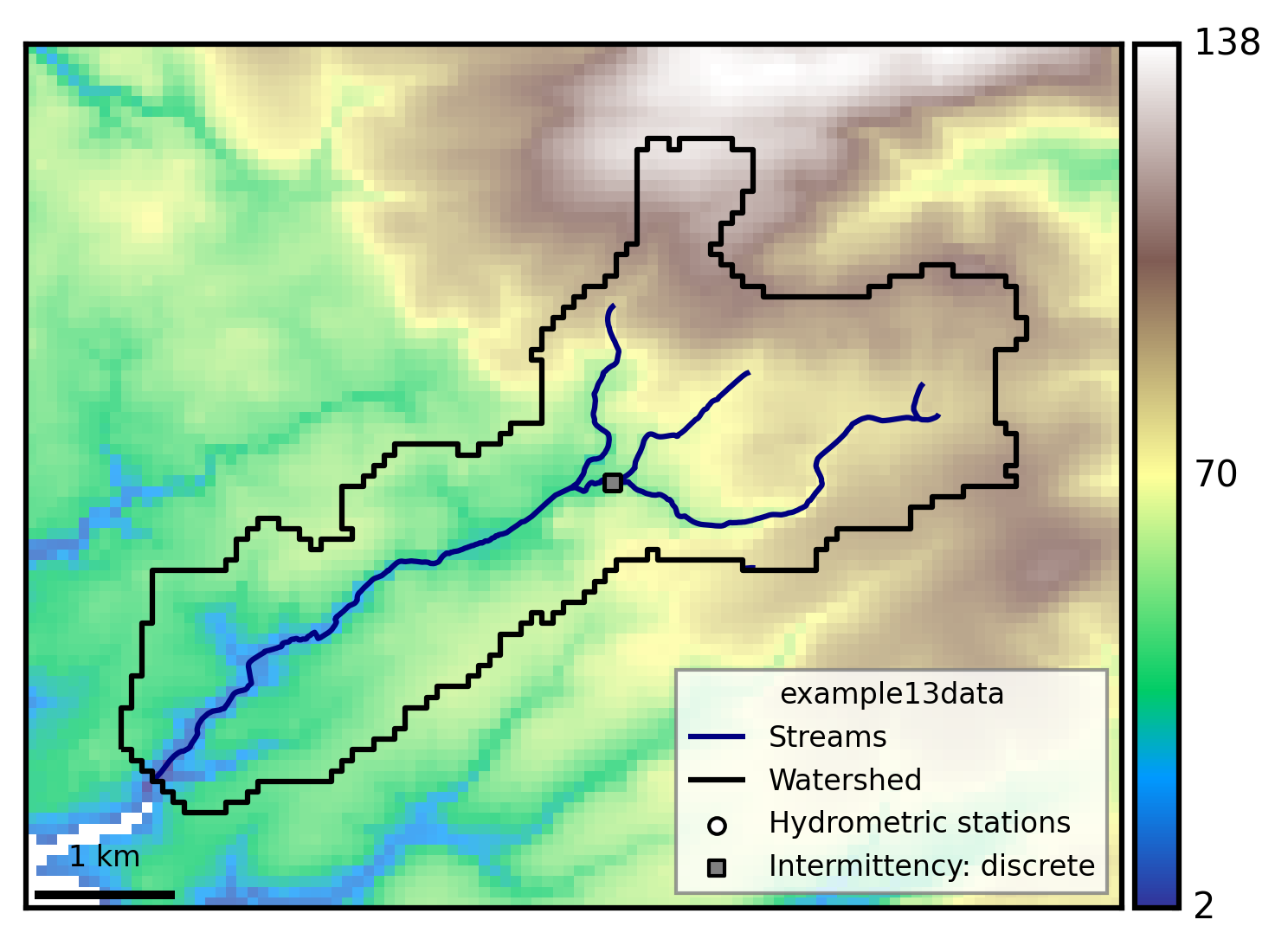

DEM-oriented overview result for the overview workflow
A correct overview run should first produce a convincing DEM-oriented watershed framing.

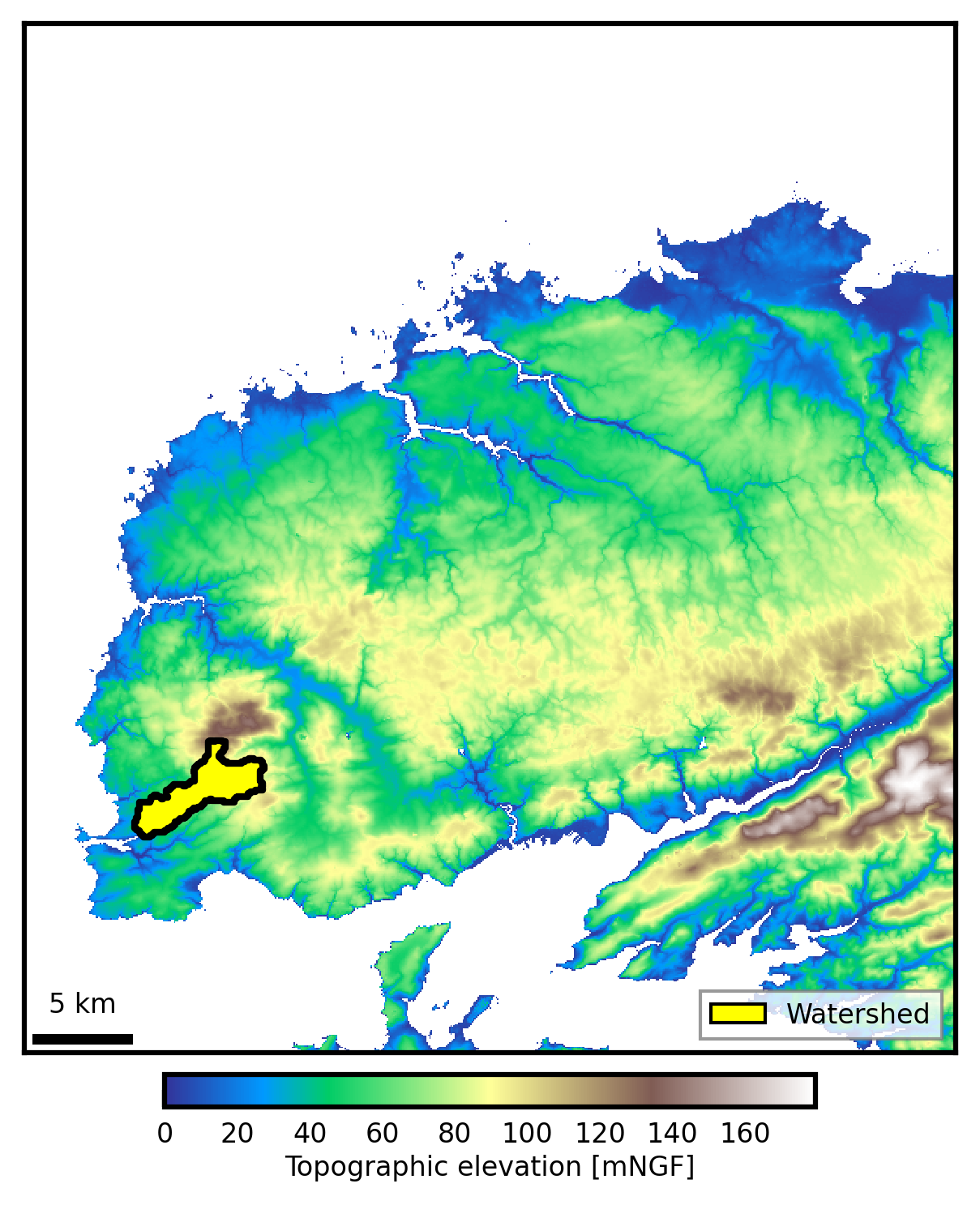

Local watershed overview result for the overview workflow
The local figure then confirms which basin overlays and loaded data layers are actually available before moving on to meshing or solving.

Data Families And Representations#

The overview workflow is not only a map generator. It is the place where HydroModPy makes heterogeneous input data visible before they become modelling assumptions. A single report can combine local files, cached workspace assets, and API-backed sources, but each family should be represented in the form that best exposes its modelling role.

Family

Typical sources

Report representation

What it validates

Terrain and watershed support

DEM rasters, outlet coordinates, precomputed watershed polygons.

DEM map, watershed boundary, outlet marker, derived slope or extent summary.

CRS consistency, outlet snapping, catchment scale, and the spatial support used by later workflows.

Hydrography and drainage network

Local river layers, national hydrographic APIs, workspace-cached network extracts.

River overlay, stream ordering, station-to-network context, optional buffered constraints.

Whether the drainage network is spatially coherent with the watershed and usable for mesh constraints or boundary diagnostics.

Geology, zones, and domain masks

Geological polygons, interpreted hydrogeological zones, manual masks.

Zone map, polygon inventory, area shares, conflict warnings.

Whether heterogeneity should enter the support, the mesh, calibration parameters, or only remain contextual.

Observation stations

Hydrometry, piezometry, intermittency, water-quality inventories from APIs or local station tables.

Station inventory table, map markers, distance-to-network checks, coverage counts.

Which observations are actually inside or near the model domain and which stations should be excluded before calibration.

Time-series observations

Discharge, head, intermittency state, chemistry, or other measured chronicles.

Time-series panels, availability bars, missing-data summaries, observation-window statistics.

Whether the requested date window has enough information for transient simulation, comparison, or calibration.

Forcing and boundary context

Meteorology, recharge proxies, sea level, imposed hydraulic heads, upstream/downstream conditions.

Forcing summaries, cumulative curves, date coverage checks, boundary context panels.

Whether forcing chronology and boundary assumptions are compatible with the intended simulation period.

Derived or interpreted products

Cached transformations, inferred recharge, simplified zones, cleaned station selections.

Provenance cards, derived-layer overlays, before/after inventories.

Which modelling choices were computed by HydroModPy rather than supplied directly by an external source.

Source Modes#

The same conceptual family can enter the workspace through several routes. The overview report should make that route explicit because it changes how the result is audited.

Source mode

Typical use

Practical consequence

Local file

Stable DEM, shapefile, GeoPackage, CSV, NetCDF, or Zarr input owned by the study.

The report mainly checks projection, extent, schema, and temporal coverage. Reproducibility depends on keeping the file under the project or workspace convention.

API-backed download

Hydrometric stations, public hydrography, meteorological or piezometric services.

The report should expose date of access, query extent, station counts, and missing responses. Cache the result before using it in a calibrated or published run.

Workspace cache

Previously downloaded or normalized assets reused across several workflows.

The report verifies that later simulations read the same data object, not a silently refreshed API response.

Generated product

Watershed delineation, cleaned station selection, derived forcing, support masks, or mesh-preparation layers.

The report must show provenance and enough visual evidence to decide whether the derived product can become part of a solver workflow.

Minimal Shape#

[workflow]
mode = "overview"

[workspace]
project_root = "."

[geographic]

[geographic.catchment]
catch_def = "from_outlet_coord"
dem_init_path = "../../data/dem/DEM_armorican_massif.tif"
x_outlet = 127348.427
y_outlet = 6835802.564
snap_dist = "150 m"
buff_area = "20%"
crs_project = "EPSG:2154"

[domain]
zone_ids = ["geology"]

[data]
types = ["geology", "hydrography", "hydrometry"]
inference_mode = "strict"

[overview]
name = "Watershed Data Overview"
date_start = "2019-01-01"
date_end = "2025-12-31"

Important Parameters#

Section / field

Role

Practical guidance

workflow

Selects the overview launcher.

Must be exactly "overview" for hmp run dispatch.

[workspace]

Resolves where cache and outputs live.

Keep one stable workspace while iterating on data choices.

[geographic.catchment]

Defines catchment extraction or loading.

catch_def, outlet coordinates, DEM path, CRS, snap distance, and buffer are the first parameters to inspect.

[domain]

Defines the model support and depth model.

Use it to decide whether geology or zones are part of the spatial support even before solving.

[data].types

Declares data families to load.

Start with support-defining layers, then add station inventories, observation time series, forcing, and boundary-context sources as the question becomes more specific.

[overview]

Names and dates the report.

Match the date range to the observation families you request.

[overview.panels]

Enables or disables report panels.

Turn off panels for missing or irrelevant data instead of forcing every source to exist.

Panel Controls#

[overview.panels] controls the generated identity-card sections:

[overview.panels]
map_dem = true
map_geology = true
map_hydrography = true
stats_card = true
timeseries_discharge = true
timeseries_piezometry = false
climatic_summary = false
timeseries_intermittency = true
timeseries_water_quality = false
station_inventory = true

Use panel toggles as documentation intent. For example, disabling timeseries_piezometry says that this overview does not evaluate piezometric observations, while keeping the rest of the watershed report valid.

Outputs To Inspect#

Start with the map panels:

  1. DEM and watershed boundary.

  2. Hydrography overlay.

  3. Geology or support map.

  4. Station inventory.

  5. Observed time series.

If these panels look wrong, do not continue to simulation yet. Fix the catchment, source, CRS, or date-range issue first.
