Mesh And Discretization Strategies

Purpose

This page documents one of the strongest scientific choices in HydroModPy: the separation between the physical problem, the planar support, the vertical layering, and the solver-specific interpretation of that discretization.

That separation is not only a software concern. It determines:

• which geometric constraints the model honours,

• how heterogeneous properties are projected to cells,

• which comparisons between solvers are scientifically meaningful,

• and which numerical errors are likely to dominate.

Common Discretization Chain

At a high level, HydroModPy turns one catchment description into one solver mesh through the following chain:

domain surfaces (topography + substratum)
-> planar support or runtime mesh
-> vertical layering
-> SolverMesh
-> property / forcing discretization
-> solver packages or finite-volume operators

The key point is that the planar support and the solver backend are not the same thing.

Conceptual Diagram

Two planar supports are derived from the domain surfaces (topography + substratum) and the support constraints (stream, ocean, zones, catchment outline):

• a structured sgrid of raster-aligned quads that approximates the support constraints,

• a catchment-conformal planar mesh of triangles or polygons that follows them more explicitly.

Both planar supports are then repeated vertically and assembled into a layered SolverMesh (cell centers, neighbors, layer ids, support labels). The catchment-conformal mesh also reduces to a 2D shallow-flow mesh that exposes a natural planar support without vertical repetition.

Backend wiring:

Backend	Mesh consumed	Notes
MODFLOW-NWT	Structured sgrid (DIS)	No layered SolverMesh; the structured raster is fed directly.
MODFLOW 6	Layered SolverMesh (DISV)	XT3D activated when needed.
Boussinesq	2D shallow-flow mesh	Finite-volume operators on the natural planar support.

The figure above shows why HydroModPy keeps mesh choice visible. The same catchment description can feed several backend families, but the numerical contract changes depending on whether the support is raster-aligned, layered, or reduced to one shallow-flow planar mesh.

Result Illustration: Nancon Basin Support To Solver Result

The Nancon pages are the best first example here because they stay close to one observed basin. They show the practical order in which discretization should be read: basin support first, hydrography and geology second, solver result only after that.

Start with the terrain and basin support. This is the physical surface that later has to be sampled by a grid or mesh; it is not yet a solver result.

Then inspect the hydrography on the same basin support. This is where discretization choices become visible: a structured grid can approximate the hydrographic geometry, while a catchment-conformal mesh can try to honour it more explicitly.

Geology is a second support constraint. If the solver cells do not align with geological boundaries, the field-to-cell transfer becomes a parameterization choice rather than exact geometry preservation.

Only after the support and mapped constraints are understood should the solver field be interpreted. This Nancon result comes from the public transient MODFLOW-NWT path, so it is best read as a structured legacy-style basin example, not as a runtime Gmsh mesh example.

What Nancon Shows, And What It Does Not

The Nancon example is useful because it connects real input layers with a real basin result:

• DEM and basin mask;

• hydrography on the basin support;

• geology on the same support;

• transient MODFLOW-NWT output;

• hydrographic-network comparison and active-network diagnostics on top of the simulated state.

It should not be over-read as a demonstration that one discretization is always better than another. In the current committed Nancon NWT case, the key lesson is simpler:

• inspect the observed support before the solver result;

• report whether the run is structured-grid or runtime-mesh based;

• avoid interpreting a map discrepancy as “physics” before checking whether it is partly a support/discretization effect.

Runtime Mesh Contrast

The committed MODFLOW 6 Gmsh case illustrates a different situation: the support itself is generated as a runtime catchment mesh. It is a useful contrast to Nancon because the mesh is the first-order object to inspect before reading the flow state.

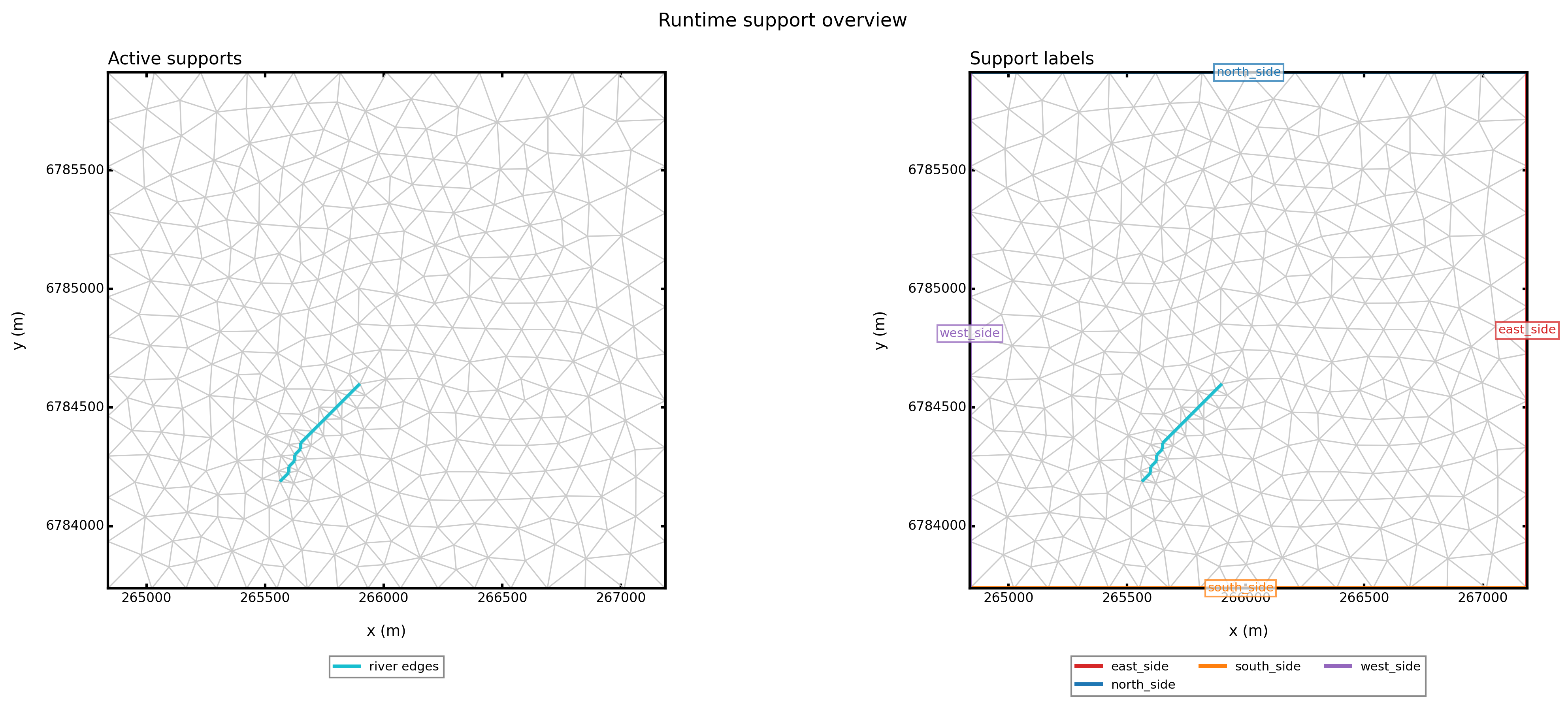

Runtime support overview for a MODFLOW 6 basin run. This figure answers "what geometry did the solver consume?"

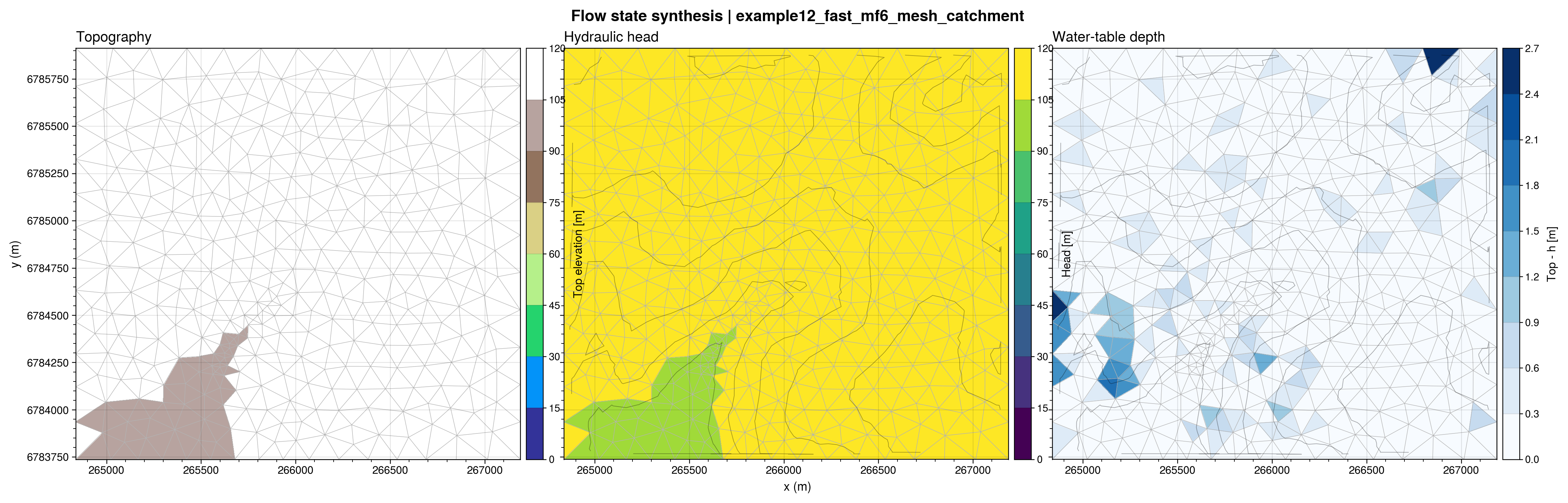

The flow-state triptych then answers "what did the solver compute on that support?"

Planar Support Families

HydroModPy currently exposes two main planar support families.

Family	Typical geometry	Main strength	Main scientific trade-off
Structured sgrid	Raster-aligned quadrilateral grid	Simple, predictable, easy to connect to raster inputs and legacy MODFLOW workflows	Interfaces such as rivers or geology boundaries are only approximated by the Cartesian grid
Runtime catchment-conformal mesh	Irregular planar mesh, typically triangular, generated from catchment, hydrography, and zone constraints	Better geometric fidelity for rivers, support boundaries, and heterogeneous zones	Higher numerical sensitivity to cell shape, non-orthogonality, and discretization choices such as XT3D

Solver-Side Interpretations

The same scientific case can then be interpreted differently by each solver family.

Backend	Geometry contract	What it solves on that geometry	Practical consequence
modflownwt	Structured DIS	Layered groundwater flow on a structured grid	Best continuity with historical MODFLOW-NWT, MODPATH, and MT3DMS paths
modflow6	DISV built from a unified SolverMesh	Layered groundwater flow on either structured or irregular planar meshes	Preferred backend when one runtime catchment mesh must be honoured
boussinesq	Triangular planar mesh	Shallow-groundwater finite-volume balance with explicit groundwater/surface-interaction closures	Strong for simulation comparison on a shared natural mesh, but not identical in physical scope to a full layered MODFLOW model

Why Mesh Choice Matters Scientifically

The mesh does not only affect speed or aesthetics. It changes how the physical system is represented.

On a structured grid:

• boundary placement is stair-stepped,

• narrow hydrographic features are approximated cell by cell,

• heterogeneous zones are often mixed within the same cell,

• raster exports and diagnostics are straightforward.

On a catchment-conformal mesh:

• rivers and polygon boundaries can be followed more closely,

• geological interfaces can be honoured more explicitly,

• support cells can be reused across solver-comparison workflows,

• but cell orientation and shape quality become first-order numerical issues.

Field-To-Cell Transfer

HydroModPy separates:

• the spatial support that says where a field exists,

• the parameter law that says which value the field takes,

• the solver mesh that needs one value per cell.

This is why the repository distinguishes:

• spatial fields and support objects,

• parameter objects such as hydraulic conductivity or storage,

• mesh-level discretization steps.

Scientifically, this matters because two very different situations must be distinguished:

1. a cell is homogeneous because the geology and the mesh align well;

2. a cell is numerically assigned one value even though several materials or support classes intersect it.

The second case is not wrong by itself, but it must be understood as a parameterization choice rather than as exact geometry preservation.

Why Dedicated Mesh Execution Exists

Dedicated mesh execution is justified scientifically, not only operationally.

Its main roles are:

• to make discretization choices visible before a solve,

• to export a reusable support for later solver runs,

• to compare two solvers on the same support rather than on two different discretizations,

• to perform mesh QA before mixing numerical and physical interpretation.

This is why mesh execution should not be described as mere preprocessing. It is where one of the most consequential modelling choices becomes explicit.

What To Check Before Solving

Before interpreting any result, the mesh or grid should be checked against at least the following questions.

• Do topography and substratum define a physically valid thickness everywhere?

• Does the mesh actually follow the intended river and zone constraints?

• Are there sliver or highly distorted cells that are likely to dominate the numerical error?

• Is the resolution transition too abrupt between refined and coarse zones?

• Are key boundaries represented by explicit support labels rather than only by geometric coincidence?

• Is the proportion of mixed geology cells acceptable for the intended study?

• Is the support reusable across solver-comparison runs?

Structured grids and irregular meshes fail these checks in different ways, so the QA criteria should not be reduced to one generic “mesh quality” number.

Practical Choice Guide

The choice below is not absolute, but it reflects the current project logic.

On Nancon today, the public NWT case is the natural structured-grid reference. Use it when the question is “how do observed support layers, MODFLOW-NWT package assembly, and basin diagnostics connect?” Use a runtime catchment-conformal mesh when the question is explicitly about support fidelity or solver comparison on a shared irregular support.

If the main goal is to…	Prefer	Because
Keep a legacy MODFLOW-NWT or transport workflow stable	Structured sgrid	It preserves the historical structured-grid contracts expected by NWT, MODPATH, and MT3DMS tooling
Compare MODFLOW 6 and Boussinesq on the same natural support	Runtime catchment-conformal mesh	The support becomes a shared reference instead of a hidden source of discrepancy
Preserve rivers and polygon boundaries more faithfully	Runtime catchment-conformal mesh	The geometry can follow those constraints explicitly
Stay close to raster-based inputs and outputs	Structured sgrid	Resampling, plotting, and GeoTIFF exports are simpler and more direct
