Simulation Comparison Workflow#

Use this page when you want to understand why the comparison workflow is kept separate from standard simulation and validation, and which scientific notes matter before interpreting outputs.

For the operational steps (TOML structure, command, parameters, outputs to inspect, stability checker), see Comparison Workflow. For a strict artefact-by-artefact reading order once a comparison has been materialized, see Comparison Output Reading Order.

What This Workflow Is#

The comparison workflow is an external orchestration layer declared through [workflow].mode = "comparison". It does not replace the standard simulation workflow. Instead, it:

  1. reads one comparison TOML,

  2. reads one shared base simulation TOML,

  3. generates child simulation TOMLs,

  4. runs those children through the public HydroModPy entry point,

  5. extracts observables from persisted results,

  6. computes metrics, audits, and figures.

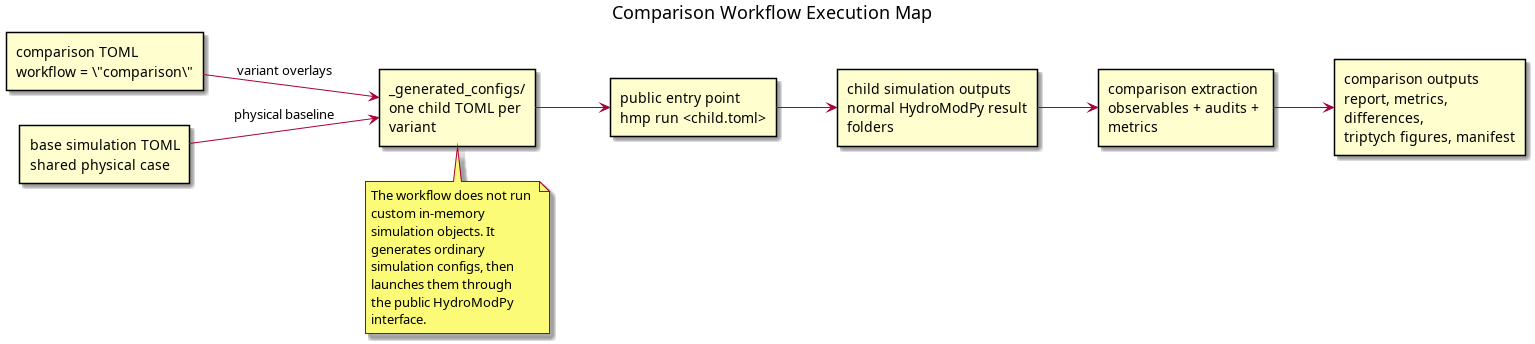

Execution Map#

@startuml title Comparison Workflow Execution Map left to right direction skinparam componentStyle rectangle skinparam wrapWidth 180 skinparam maxMessageSize 180 rectangle "comparison TOML\nworkflow = \"comparison\"" as Cfg rectangle "base simulation TOML\nshared physical case" as Base rectangle "_generated_configs/\none child TOML per variant" as Child rectangle "public entry point\nhmp run <child.toml>" as Run rectangle "child simulation outputs\nnormal HydroModPy result folders" as SimOut rectangle "comparison extraction\nobservables + audits + metrics" as Compare rectangle "comparison outputs\nreport, metrics, differences,\ntriptych figures, manifest" as Out Cfg --> Child : variant overlays Base --> Child : physical baseline Child --> Run Run --> SimOut SimOut --> Compare Compare --> Out note bottom of Child The workflow does not run custom in-memory simulation objects. It generates ordinary simulation configs, then launches them through the public HydroModPy interface. end note @enduml

The workflow does not bypass standard simulations. It builds ordinary child simulation configs, runs them through the public entry point, then compares persisted outputs.

Why It Exists As A Separate Workflow#

Keeping comparison separate from standard simulation is a deliberate scientific and architectural choice.

It means:

  • each child run remains a real HydroModPy simulation,

  • solver-to-solver comparison stays explicit instead of becoming a hidden side effect inside simulation,

  • comparison outputs are clearly post-hoc evidence products rather than raw simulation artifacts.

This also prevents one important confusion: a comparison workflow is not a validation workflow.

Comparison asks: “How different are these runs on the same declared case?”

Validation asks: “Does this run match an analytical or trusted reference within stated tolerances?”

Method Notes Before You Interpret Results#

The comparison workflow keeps one physical case as constant as possible, but it does not remove the need to interpret method choices explicitly.

Before reading the output figures as “solver differences”, confirm at least the following:

  • whether the child runs use the exact same support,

  • whether the comparison is backend-only or also changes mesh family,

  • whether XT3D is active for irregular MODFLOW 6 cases,

  • whether the comparison mixes a layered MODFLOW representation with a reduced shallow-flow Boussinesq representation,

  • whether heterogeneous properties are being transferred to cells in the same way for both runs.

The key scientific notes are:
