MODFLOW 6 Versus MODFLOW-NWT: Scientific Comparison

Purpose

This page explains the scientific meaning of keeping both modflow6 and modflownwt inside HydroModPy.

It is not a software migration guide. Its role is to answer a narrower question:

“When two HydroModPy runs differ only by MODFLOW backend, what scientific and numerical differences are still being exercised?”

Primary Official Anchors

The discussion here should stay aligned with the official USGS material:

• USGS TM 6-A55, Documentation for the MODFLOW 6 Groundwater Flow Model

• USGS TM 6-A56, Documentation for the XT3D Option in the Node Property Flow Package of MODFLOW 6

• MODFLOW 6 Input Guide

• USGS TM 6-A37, MODFLOW-NWT, A Newton Formulation for MODFLOW-2005

• Online Guide to MODFLOW-NWT

HydroModPy documentation should synthesize these sources at project level, not replace them.

Shared Scientific Core

The shared HydroModPy flow payload (head unknown, K/Sy/Ss, boundaries, recharge, wells) feeds two backend translations:

• MODFLOW-NWT path: structured DIS grid, UPW + NWT Newton path, legacy MODFLOW-2005 ecosystem. Picked for structured benchmarks and legacy continuity.

• MODFLOW 6 path: structured DIS or layered DISV, NPF + IMS, optional Newton path, XT3D when justified. Picked for irregular support, modern default, and a shared natural mesh.

Both paths must report explicitly: support equality, DIS vs DISV choice, XT3D on/off, storage regime, and the comparison intent.

The scientific core stays comparable, but the backend choice still changes the discretization contract, the internal flow package, and the nonlinear path.

Within HydroModPy, both backends are used to solve the same high-level groundwater-flow problem:

• hydraulic head is the canonical unknown,

• hydraulic properties are carried by the solver-agnostic [flow] payload,

• storage, recharge, wells, drains, and imposed-head boundaries are normalized before backend translation,

• results are interpreted as cell-based groundwater solutions.

That means a backend comparison is never a comparison between unrelated physical models. It is a comparison between two members of the MODFLOW family that share a broad groundwater-flow interpretation, while differing in discretization options, nonlinear treatment, package contracts, and ecosystem history.

Why Both Backends Still Exist

The short answer is:

• modflow6 is the modern and more general path,

• modflow_nwt remains useful as a legacy structured benchmark and for historical workflows that still depend on the MODFLOW-2005 ecosystem.

HydroModPy therefore keeps both for different reasons:

• scientific comparison on a stable structured case,

• continuity with existing NWT, MT3DMS, or MODPATH habits,

• access to a modern MF6 path for irregular runtime meshes and evolving package choices.

Side By Side On The Same Case

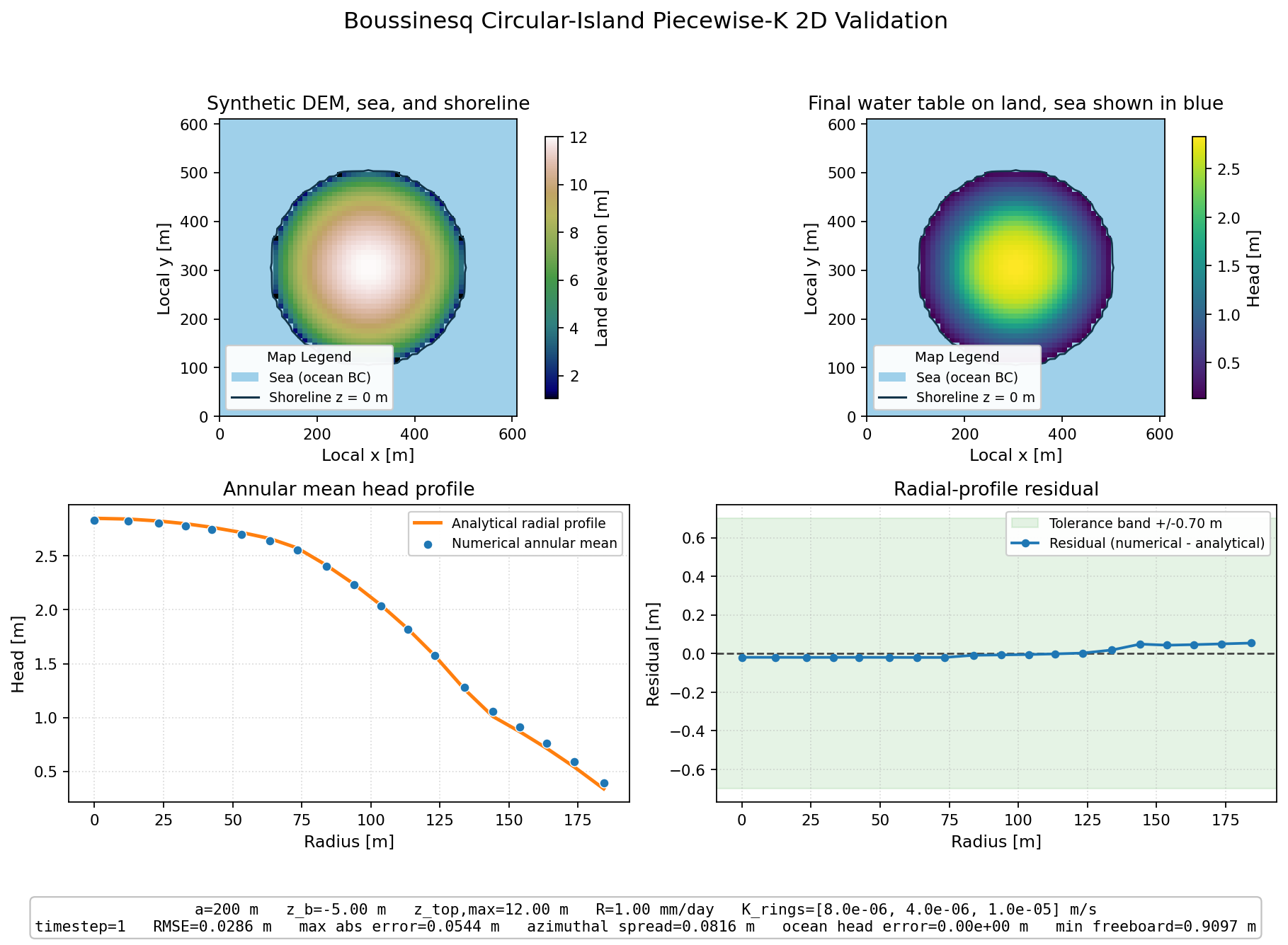

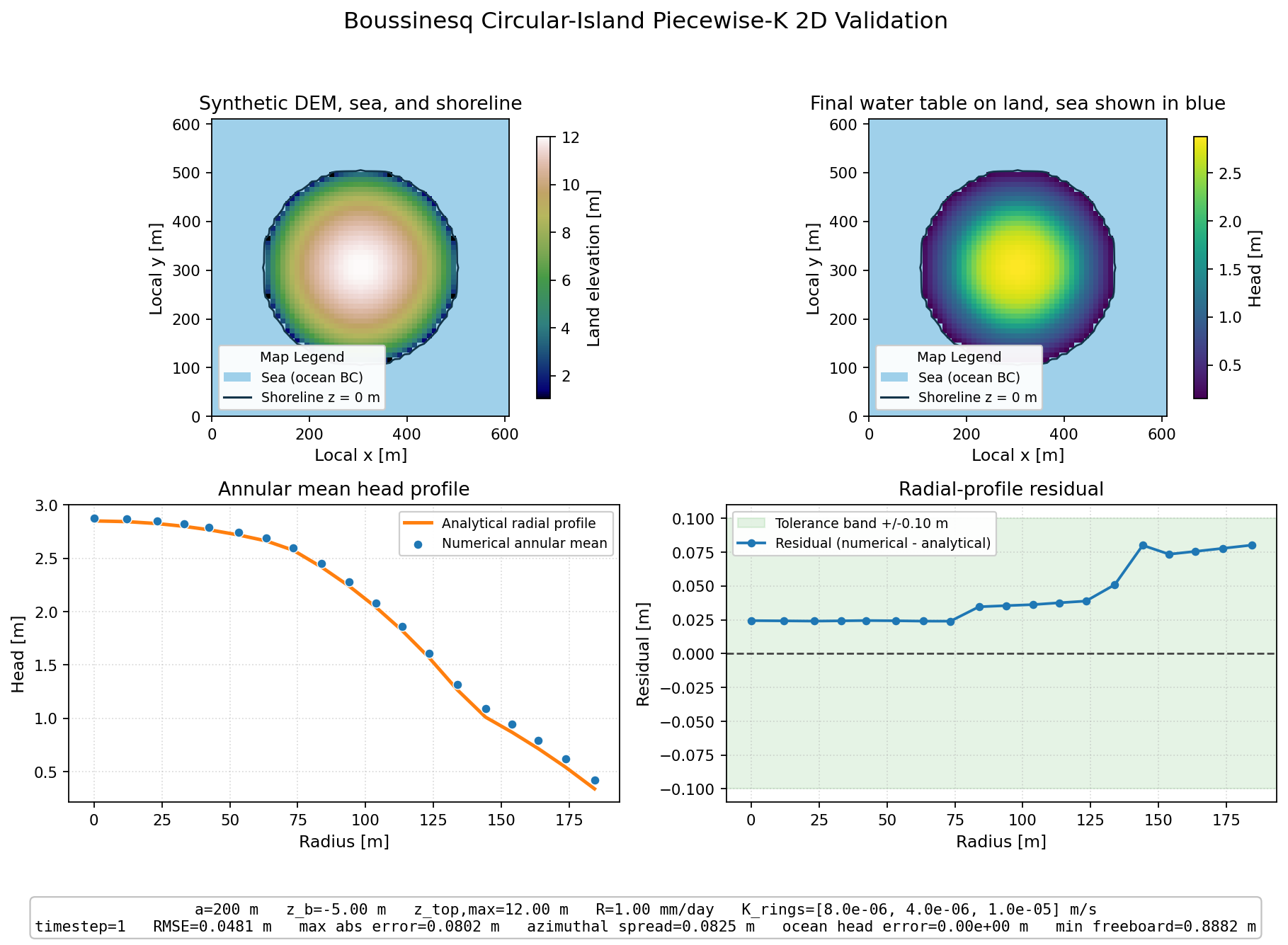

The slider below compares the rendered piezometric surfaces produced by both backends on a single validation case (Boussinesq circular island, piecewise hydraulic conductivity). Drag the handle to bring either rendering forward.

MODFLOW 6MODFLOW-NWT

Same physical case, two backends. Use the slider to switch between the rendered head fields.

High-Level Difference Map

Topic	modflownwt	modflow6	Scientific consequence in HydroModPy
Grid family	Structured DIS path	Structured DIS or layered DISV path	A backend switch can also be a mesh-contract switch if the support is not kept identical
Internal flow package	UPW with Newton-oriented legacy contract	NPF with modern MF6 package semantics	The intercell flow law is not identical even when the physical case is intended to be the same
Nonlinearity handling	NWT-specific Newton formulation for difficult unconfined problems	MF6 general framework with optional Newton-Raphson path for complex water-table conditions	Convergence behaviour and wetting/drying robustness can differ
Irregular runtime meshes	Not the HydroModPy path	Supported through DISV	MF6 is the only public HydroModPy route for those comparisons
XT3D	Not applicable in the same way	First-class option in NPF for irregular or anisotropic cases	Irregular MF6 runs can differ because of XT3D as well as because of the backend itself
Ecosystem continuity	Strong historical continuity with MODFLOW-2005 family tools	Modern MODFLOW 6 ecosystem	Backend choice can also be a compatibility choice, not only a method choice

Discretization Contract: DIS Versus DISV

For HydroModPy, one of the most important differences is geometric.

modflow_nwt is currently the structured-grid branch. It is the natural path when the study deliberately keeps a raster-aligned layered grid and wants continuity with legacy MODFLOW-2005 practice.

modflow6 can reproduce that structured path, but it can also consume HydroModPy runtime irregular supports through DISV. This makes it the preferred backend whenever the scientific question requires:

• a catchment-conformal planar support,

• explicit honouring of polygon and hydrography constraints,

• one shared irregular support for solver-comparison workflows.

This also means that a naive MF6-versus-NWT comparison can silently mix two effects:

1. backend-family differences;

2. discretization-family differences.

Those two effects should be separated whenever possible.

Internal Flow Law: UPW Versus NPF

The two backends do not expose the same internal flow package.

For modflow_nwt, the official NWT formulation is tied to the UPW package. The USGS NWT documentation states that MODFLOW-NWT must be used with UPW and that UPW treats drying and rewetting nonlinearities through a continuous head-based function rather than the older discrete wet/dry logic.

For modflow6, the public HydroModPy path uses NPF. In the MF6 documentation, NPF is part of a generalized control-volume finite- difference framework and can be combined with options such as XT3D.

At HydroModPy level, the practical conclusion is simple:

• even if two runs share the same K, Sy, Ss, recharge, wells, and boundary declarations,

• they are still being interpreted through different package-level flow contracts.

That does not make the comparison invalid. It means the package family is part of the scientific method choice and should be reported as such.

Nonlinearity And Solver Behaviour

The NWT path exists mainly because difficult unconfined problems are not just a matter of linear algebra convenience.

The official NWT report describes MODFLOW-NWT as a Newton formulation intended for drying and rewetting nonlinearities of the unconfined groundwater-flow equation. It also states that the NWT linearization yields an asymmetric matrix.

MF6 has a broader numerical framework. TM 6-A55 states that an optional Newton-Raphson formulation can be activated for complex water-table problems, and that doing so often improves convergence relative to traditional wetting-and-drying approaches.

HydroModPy users should therefore read backend differences in two layers:

• the physical case may be the same,

• the nonlinear treatment and convergence path may still differ materially.

When one backend converges more robustly than the other, that should not be described as an implementation accident. It is often evidence that the chosen nonlinear formulation is part of the modelling decision.

Why MODFLOW 6 Is Usually Preferred

For new HydroModPy work, modflow6 is usually the stronger default choice when:

• the support is irregular or catchment-conformal,

• DISV is required,

• XT3D is scientifically justified,

• one wants the most modern public project path,

• one wants to reduce dependence on legacy MODFLOW-2005 assumptions.

It is also the cleaner choice for comparison workflows where the support itself is part of the experiment, especially against the in-house Boussinesq backend.

Why MODFLOW-NWT Is Still Worth Keeping

modflow_nwt still matters when the question is specifically about:

• continuity with an established structured-grid workflow,

• legacy comparability with existing NWT studies,

• compatibility with historical transport or particle-tracking paths in the MODFLOW-2005 ecosystem,

• a controlled benchmark where the grid family must remain the familiar structured DIS contract.

In other words, keeping NWT alive is not only technical inertia. It preserves a scientifically interpretable baseline for some classes of structured unconfined problems and for legacy project continuity.

Concrete Result Anchor

The figures below use one committed validation family to make the comparison less abstract. They are not meant to prove that one backend is always better. They show how HydroModPy publishes the same physical benchmark through two MODFLOW-family routes.

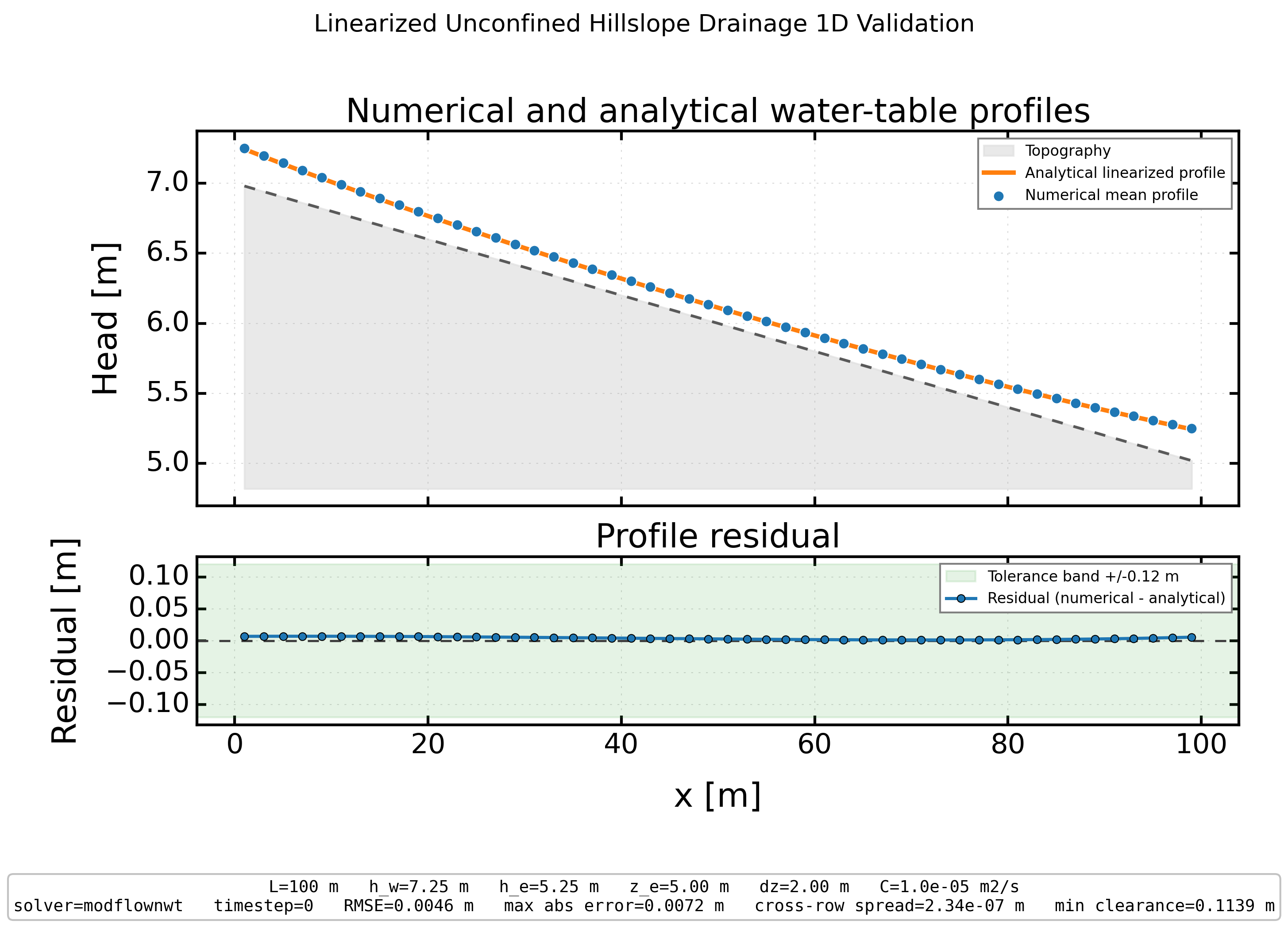

MODFLOW-NWT

The NWT result is the legacy structured-grid reading of the same hillslope drainage benchmark. It is useful as a continuity baseline for older structured MODFLOW studies.

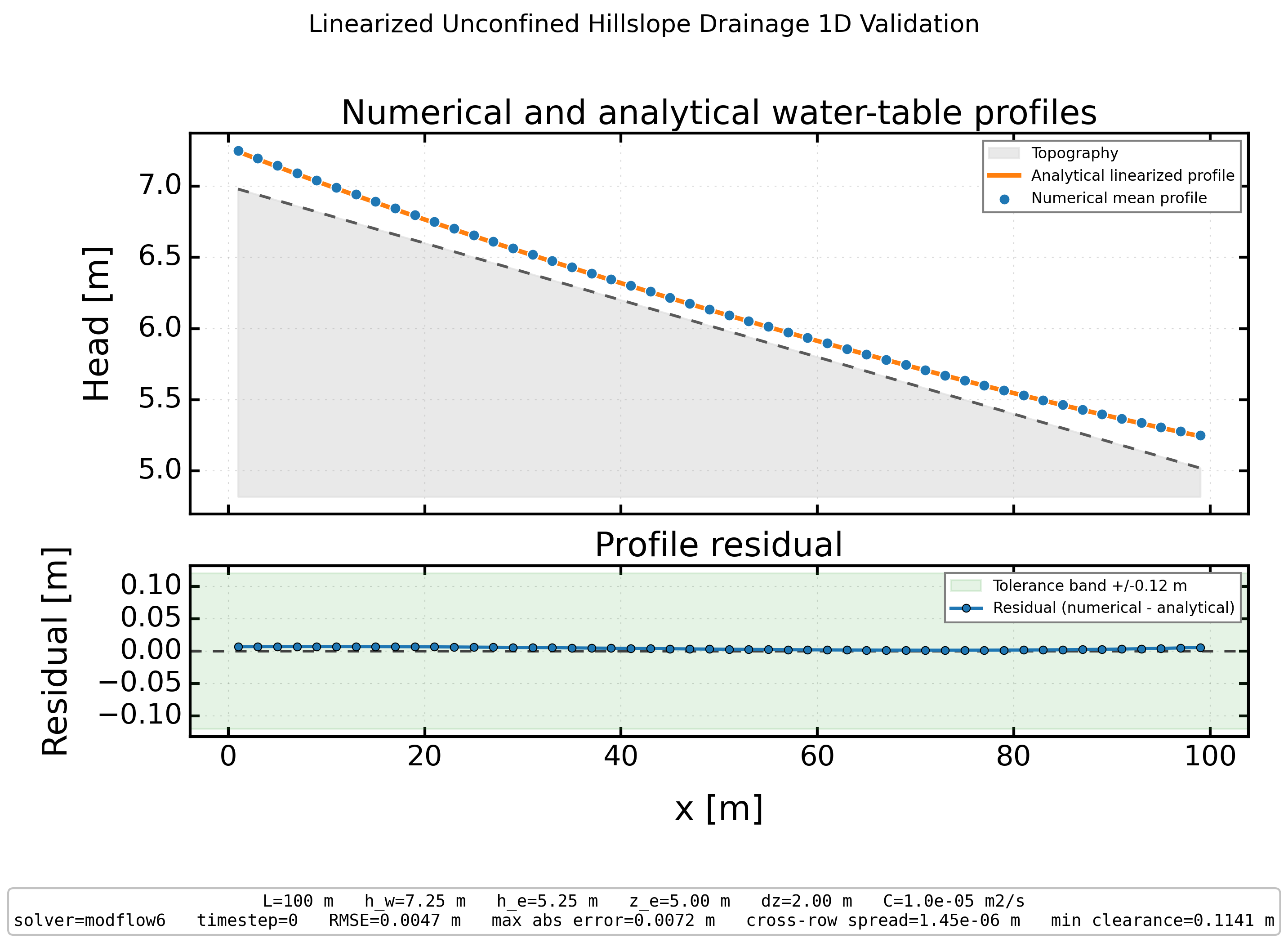

MODFLOW 6

The MF6 result is the modern package-stack reading. It should be compared with the NWT result only after reporting support, package, storage, and solver settings.

The detailed metrics live in the committed gallery case: Linearized Unconfined Hillslope Drainage 1D.

What Must Be Reported In Comparisons

When a page or report says “MF6 versus NWT”, the following should be stated explicitly:

• whether both runs use the exact same support,

• whether the comparison is DIS versus DIS or DISV versus structured DIS,

• whether XT3D is active,

• whether the case is steady or transient,

• which storage terms are active,

• whether the case is mainly testing backend continuity, mesh fidelity, or nonlinear robustness.

Without those controls, a backend comparison becomes hard to interpret.

Recommended Reading Order

This page is best read together with:

• MODFLOW Governing Equation And CVFD Formulation

• Mesh And Discretization Strategies

• Field-To-Cell Parameter Transfer

• Vertical Representation And Storage Assumptions

• MODFLOW Package Semantics And Option Selection

• XT3D On Irregular DISV Meshes

• Simulation Comparison Workflow

Current Limitation

This page still stays at the synthesis level. It does not yet walk package by package through all MF6/NWT differences actually exercised by HydroModPy on every workflow.

Its purpose is narrower: make backend choice scientifically legible before a reader dives into package pages, comparison pages, or architecture notes.
