Network Metrics And Extreme K-Sweep

Purpose

This page separates three notions that are easy to confuse:

• reference is the observed hydrographic network loaded with the run.

• persistent is the transient simulated-active extraction mode used in the examples below: a cell is retained when it is active for at least 50% of the simulated timesteps.

• steady is a flow regime. A steady active network should come from a flow_regime = "steady" run, not from a transient persistence rule.

The extreme K-sweep below is therefore a transient sensitivity experiment. It compares a persistent simulated-active network with the observed reference network.

Metric Families

HydroModPy currently exposes three modern metric families for stream-network diagnostics.

Family	What is compared?	Current implementation	Relation to [Abhervé et al., 2023]
Vector linework overlap	reference vector network versus another vector network, usually generated	run.hydrographic_network_comparison()	Different: it compares vector linework with a tolerance buffer, not simulated seepage cells routed downslope.
Simulated-active cell overlap	simulated active cells versus the observed reference network rasterized onto mesh cells	run.cell_field_network_overlap_metrics()	Compatible as a first diagnostic, but different from the article: it measures cell overlap, coverage, precision, F1 and Jaccard.
Simulated-active planar distance	active simulated cells versus the observed reference network, in both directions	run.cell_field_network_distance_metrics()	Intermediate: it measures planar cell-centroid distances and is explicitly not the downslope DEM-routing metric from the article.
Legacy matching streams	observed stream raster versus simulated seepage raster, in both directions	historically implemented as MatchingStreams in hydromodpy/analysis/postprocess/flow/matching_streams.py	Closest conceptual match: it created downslope-distance rasters and point samples needed to compute the bidirectional criterion.

The legacy MatchingStreams code did not persist a clean scalar CSV with D_so, D_os and D_optim. It produced the artifacts needed to derive them:

• obs.tif and sim.tif: observed and simulated stream supports.

• obsflow.tif and simflow.tif: traced downslope flowpaths.

• dist_dem_obs.tif and dist_dem_sim.tif: downslope-distance rasters.

• sampled point layers such as sim_pt.shp and obs_pt.shp.

To make it fully compatible with [Abhervé et al., 2023], HydroModPy should modernize that logic into a result view and CSV export that computes at least:

• \(D^{down}_{s\to o}\): average simulated-to-observed downslope distance.

• \(D^{down}_{o\to s}\): average observed-to-simulated downslope distance.

• \(D_{optim}\): combined downslope-distance criterion.

• \(r_{optim}\): \(D_{optim}\) normalized by the DEM or analysis resolution.

Current Extreme Sweep

The sweep is centered on K = 2e-4 m/s and adds hydraulic conductivities that are 10 and 100 times lower and higher.

Simulation	K	Factor vs reference	Interpretation
k_2e6	2e-6 m/s	0.01x	very low-K saturated stress test
k_2e5	2e-5 m/s	0.1x	low-K branch
k_2e4	2e-4 m/s	1x	reference simulation for this sweep
k_2e3	2e-3 m/s	10x	high-K branch; this stress test failed to converge in the run below
k_2e2	2e-2 m/s	100x	very high-K dry stress test

Run Command

From the repository root:

hmp run examples/projects/09_comparison_workflow/compare_nancon_transient_seasonal_hydrography_extreme_k_sweep_mf6_only.toml

The run writes results under:

examples/projects/09_comparison_workflow/outputs/nancon_transient_seasonal_hydrography_extreme_k_sweep_mf6/

The most useful files are:

• simulated_active_network_metrics.csv

• simulated_active_network_overlap_metrics.csv

• simulated_active_network_distance_metrics.csv

• run_figures/<simulation_id>/simulated_active_network_reference_overlay.png

• comparison_report.md

• comparison_audit.md

After rerunning the workflow, refresh the committed documentation figures with:

python docs/source/theory/streams_and_seepage/diagrams/render_nancon_k_sweep_doc_figures.py --sweep extreme

The script reads the exported CSV metrics and recomposes the map figures with their metric bands, then writes the trend and tradeoff graphs shown below.

Case Configuration

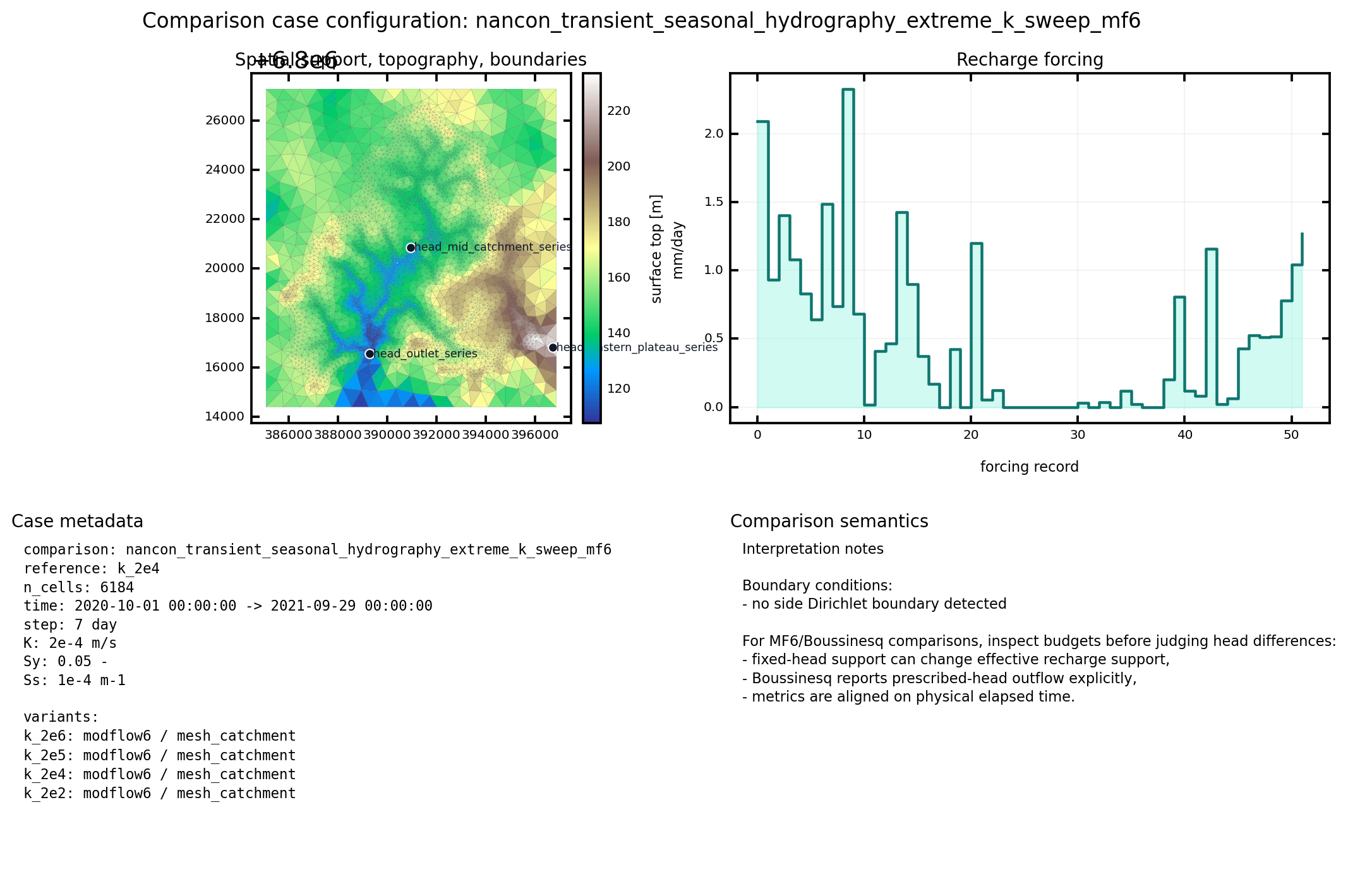

Fig. 96 Common comparison support for the extreme MODFLOW 6 simulations.

Run Status

Four simulations completed and one failed:

• k_2e6 completed in 4.63 min.

• k_2e5 completed in 3.84 min.

• k_2e4 completed in 5.34 min.

• k_2e3 failed by MODFLOW 6 non-convergence at stress period 37.

• k_2e2 completed in 16.25 min.

The failed k_2e3 case is kept in the design table because it is scientifically informative: the high-K branch is numerically stiff for this setup and should not be treated as a calibrated production case without solver/settings review.

Overlap Metrics

The table below uses the current cell-overlap metrics. It is intentionally not presented as the Abherve et al. distance criterion.

Simulation	K	Active cells	Missing ref.	Extra active	Coverage	Precision	F1
k_2e6	2e-6	3033	302	1656	0.820	0.454	0.584
k_2e5	2e-5	1496	788	612	0.529	0.591	0.558
k_2e4	2e-4	811	1164	301	0.305	0.629	0.410
k_2e2	2e-2	174	1579	73	0.060	0.580	0.109

Planar Distance Metrics

The table below is produced by simulated_active_network_distance_metrics.csv. It is a planar cell-centroid diagnostic. It is useful for reading the existing sweep, but it does not replace the downslope DEM-routing metric described below.

Simulation	K	Sim -> ref mean m	Ref -> sim mean m	Bidirectional mean m	Quadratic mean m
k_2e6	2e-6	310.7	10.1	160.4	310.8
k_2e5	2e-5	292.4	52.7	172.6	297.1
k_2e4	2e-4	321.8	253.8	287.8	409.8
k_2e2	2e-2	94.1	2139.5	1116.8	2141.6

Metric Notation

The generated figures use compact notation so the map and metrics can be read together:

• \(N_a\): persistent simulated-active cells.

• \(N_{ref}\): cells intersected by the observed reference network.

• \(N_{ov}\): overlap cells, active and reference at the same time.

• \(N_{miss}\): reference cells not captured by simulated activity.

• \(N_{extra}\): active cells outside the reference-network support.

• \(C_{ref}=N_{ov}/N_{ref}\): reference-network coverage.

• \(P_a=N_{ov}/N_a\): simulated-active precision.

• \(F_1=2 C_{ref} P_a/(C_{ref}+P_a)\): harmonic overlap score.

• \(D^{plan}_{s\to o}\): simulated-active to observed-reference planar distance.

• \(D^{plan}_{o\to s}\): observed-reference to simulated-active planar distance.

• \(\bar{D}^{plan}\): symmetric mean of those two directional planar distances.

• \(R_D^{plan}=D^{plan}_{s\to o}/D^{plan}_{o\to s}\): planar distance ratio. It is the current proxy for reading an optimum-like crossing; the article uses downslope distances instead.

Visual Sweep

Each map below is regenerated from the workflow outputs by render_nancon_k_sweep_doc_figures.py. The metric band is intentionally placed below the map so the spatial pattern and scalar diagnostics stay together.

K = 2e-6 m/s: 100x lower than reference

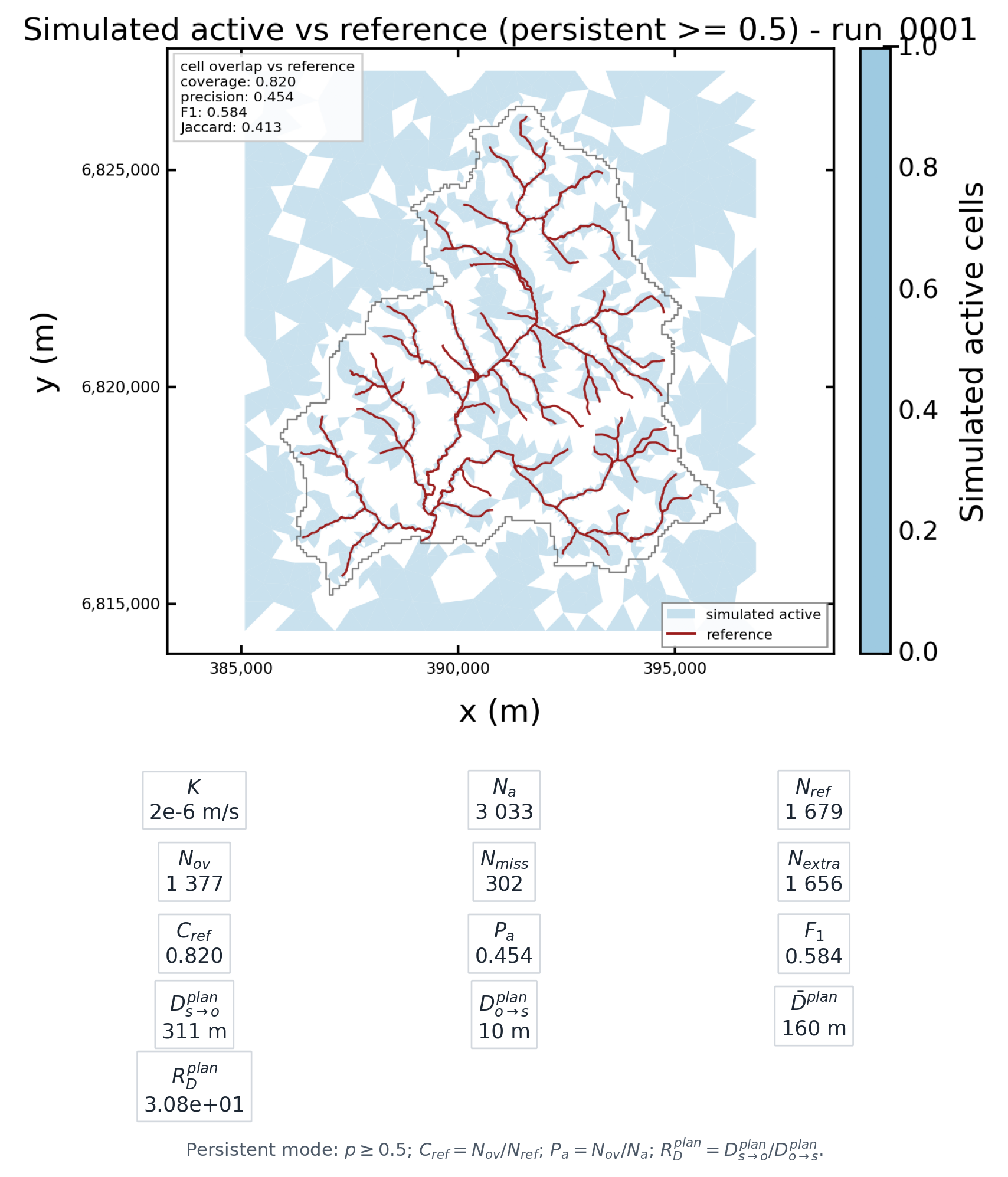

Fig. 97 k_2e6: \(N_a=3033\), \(C_{ref}=0.820\), \(P_a=0.454\), \(F_1=0.584\), \(\bar{D}^{plan}=160\) m.

K = 2e-5 m/s: 10x lower than reference

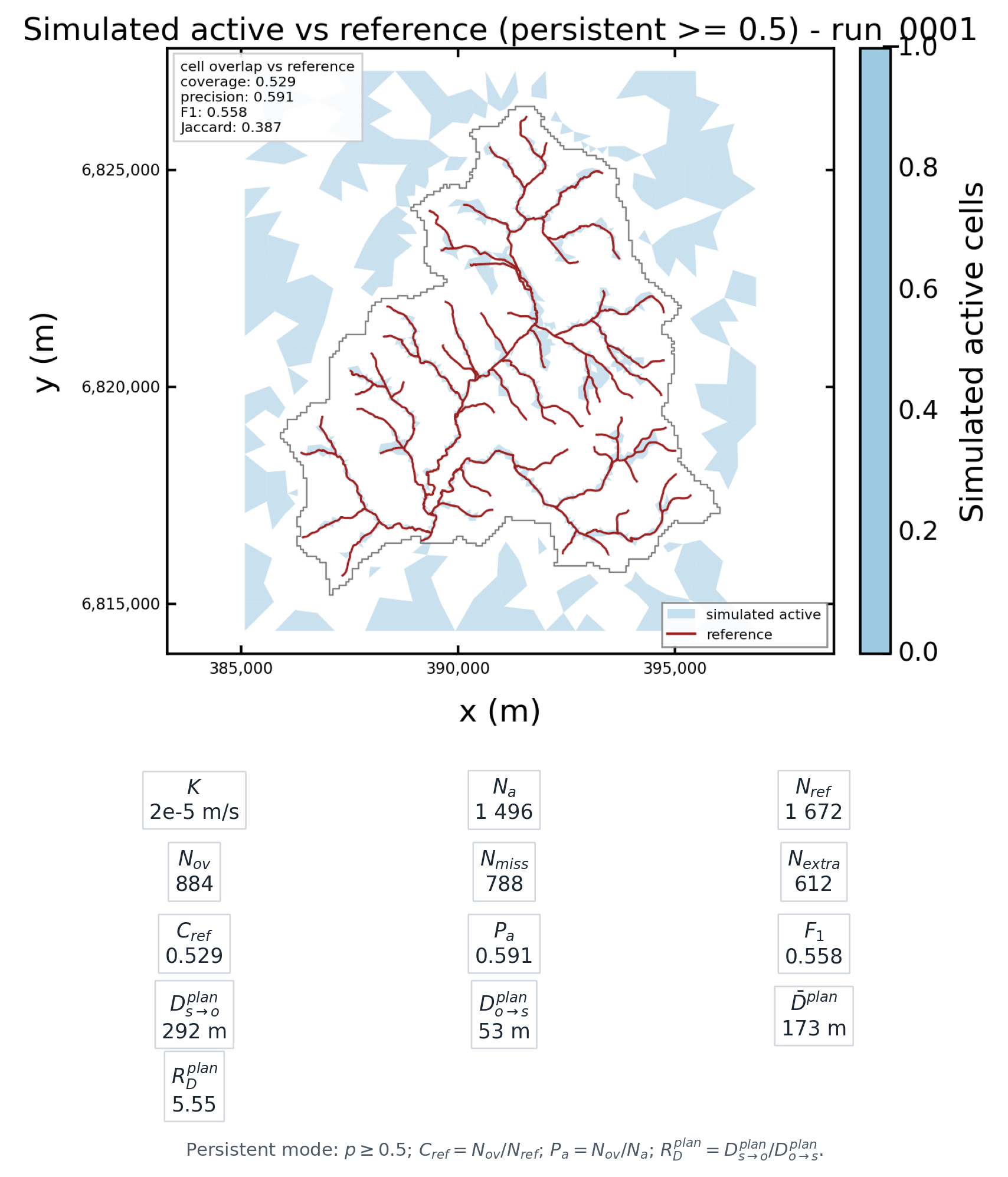

Fig. 98 k_2e5: \(N_a=1496\), \(C_{ref}=0.529\), \(P_a=0.591\), \(F_1=0.558\), \(\bar{D}^{plan}=173\) m.

K = 2e-4 m/s: reference simulation

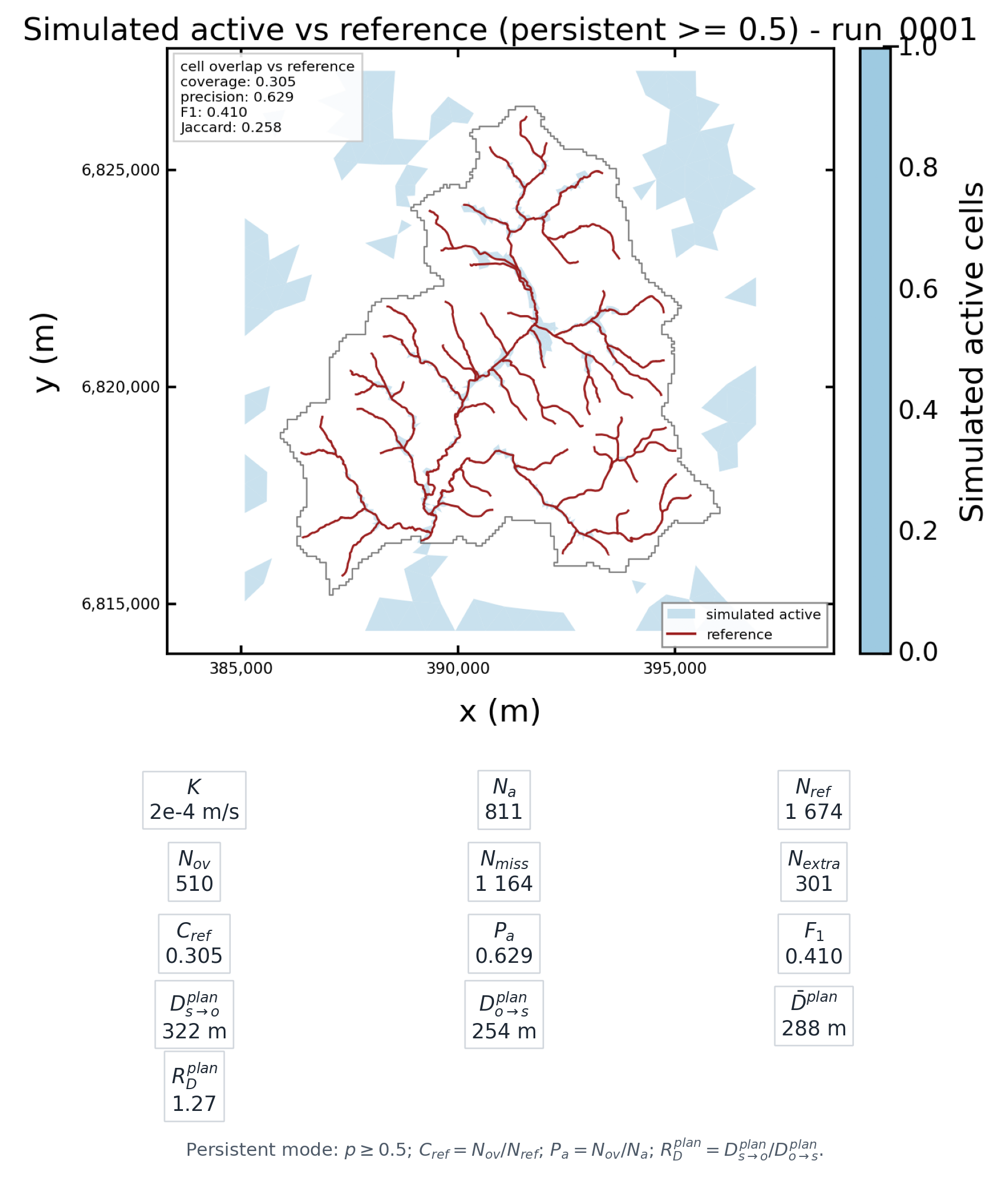

Fig. 99 k_2e4: \(N_a=811\), \(C_{ref}=0.305\), \(P_a=0.629\), \(F_1=0.410\), \(\bar{D}^{plan}=288\) m.

K = 2e-2 m/s: 100x higher than reference

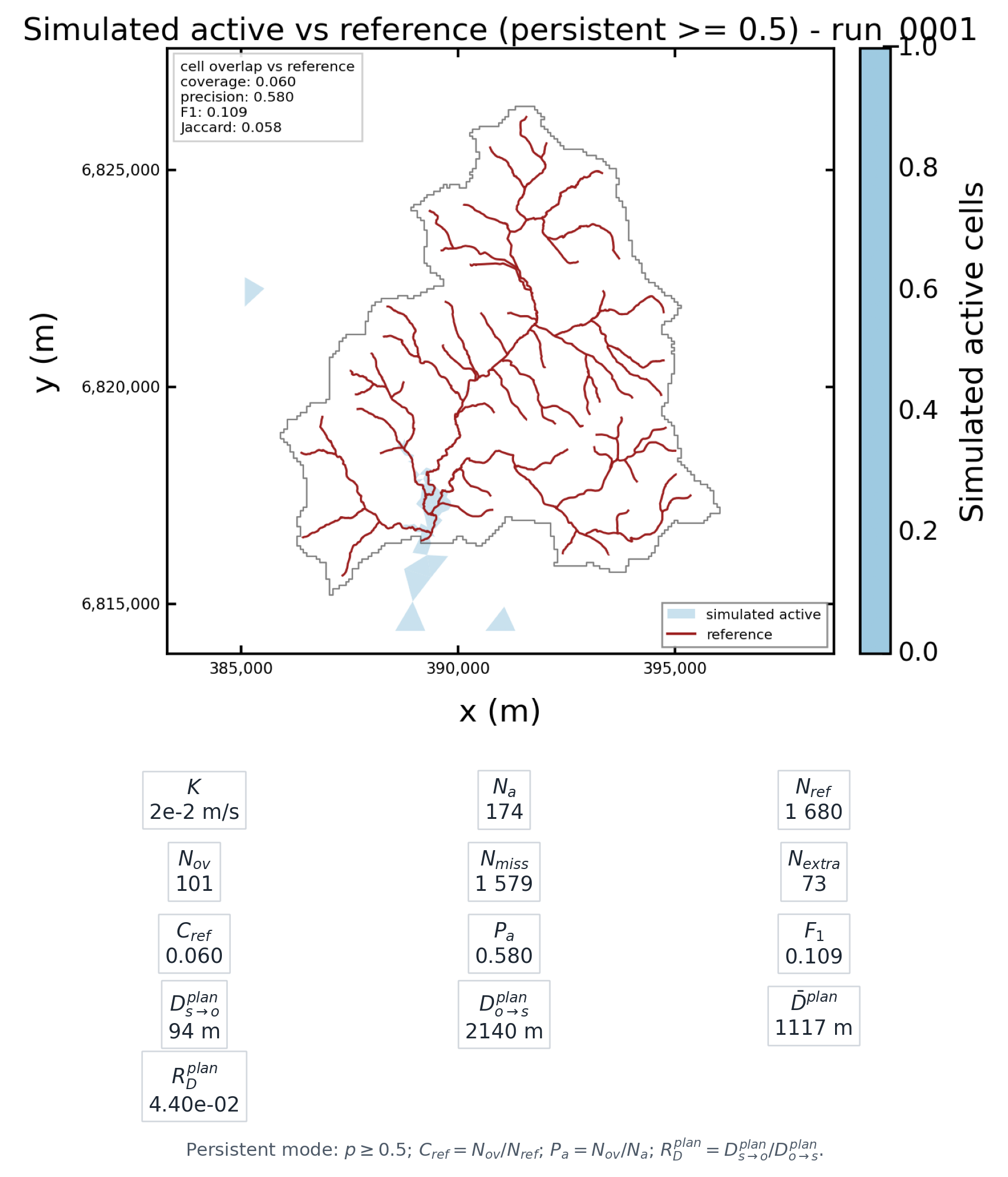

Fig. 100 k_2e2: \(N_a=174\), \(C_{ref}=0.060\), \(P_a=0.580\), \(F_1=0.109\), \(\bar{D}^{plan}=1117\) m.

There is no figure for k_2e3 because the MODFLOW 6 solve did not converge.

Metric Evolution

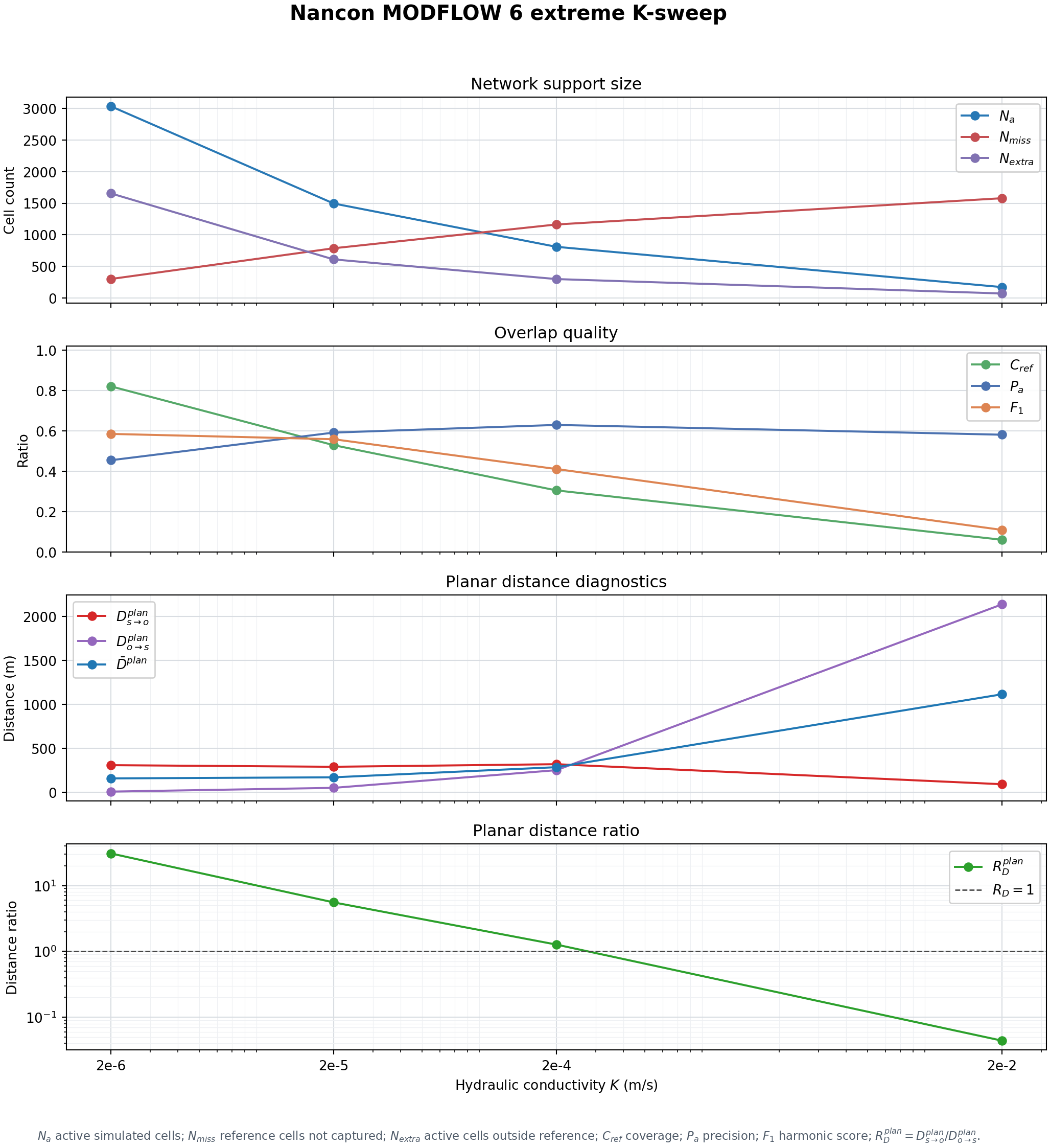

Fig. 101 Evolution of support size, overlap quality, planar distance metrics, and the positive distance ratio \(R_D^{plan}\) across the completed extreme K values. The horizontal reference line marks \(R_D^{plan}=1\). The failed k_2e3 solve is excluded from the curve because no valid simulated-active network was produced for that simulation.

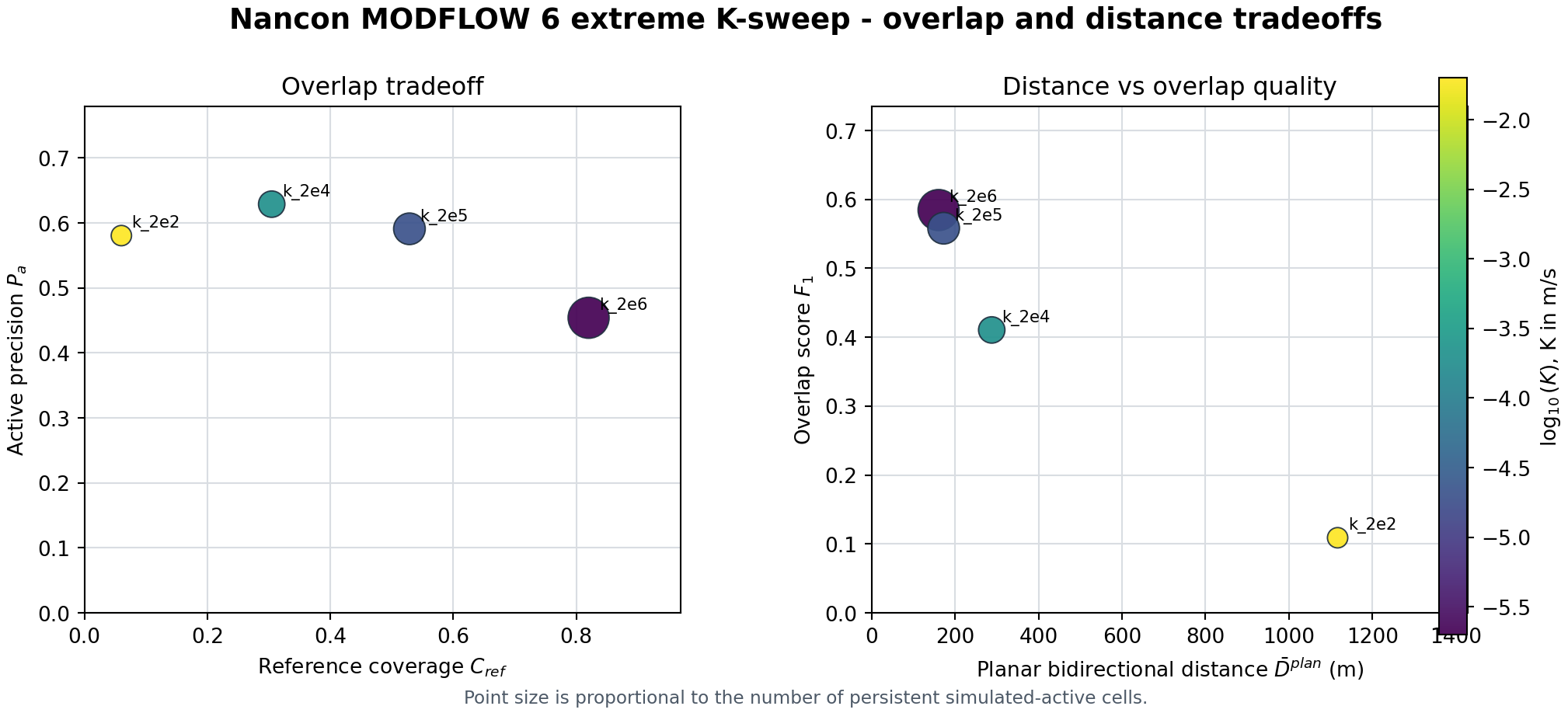

Fig. 102 Tradeoff view: coverage versus precision, then \(\bar{D}^{plan}\) versus \(F_1\). Point size is proportional to \(N_a\).

Current Reading

The current metric should be read as a diagnostic of network support co-location on the model mesh:

• high coverage means the simulated active network captures much of the observed reference network;

• high precision means simulated active cells mostly fall near the observed reference network;

• missing reference cells diagnose under-development of the simulated active network;

• extra active cells diagnose over-development or active cells away from the observed network.

The article-style distance metric would add directional distance information: how far simulated seepage must be routed to reach observed streams, and how far observed streams are from simulated seepage. That is the next implementation step if this diagnostic is promoted from visual development to calibration.

The current planar metrics do contain an optimum-style distance ratio: planar_distance_ratio and planar_distance_log10_ratio. The ratio is useful for inspecting whether the two directional distances cross as K changes. It is not \(r_{optim}\) from [Abhervé et al., 2023], because the paper computes \(D_{optim}\) from downslope flowpath distances and then normalizes it by the DEM resolution.

The current code now adds a safer intermediate CSV, simulated_active_network_distance_metrics.csv. It contains:

• sim_to_network_*: \(D^{plan}_{s\to o}\) distances from active simulated cell centroids to the selected network role, usually reference;

• network_to_sim_*: \(D^{plan}_{o\to s}\) distances from cells intersected by the selected network to the simulated-active support;

• bidirectional_distance_mean_m and bidirectional_distance_quadratic_mean_m as compact symmetric planar summaries;

• bidirectional_distance_absolute_difference_m as the absolute difference between the two directional planar means;

• planar_distance_ratio and planar_distance_log10_ratio as the current planar crossing proxy;

• distance_method = "planar_cell_centroid_to_network" to make clear that these are planar mesh diagnostics, not downslope DEM distances.

Related Reading

• Nancon K-Sweep Results

• Conceptual Model

• Simulated Active Network

• [Abhervé et al., 2023] for the published bidirectional downslope-distance criterion; see also Bibliography.
