Spatial Support UML Diagrams#

Scope#

These diagrams document the architecture around:

  • domain.supports and domain.zone_ids,

  • the different support-definition cases (generated bands, rings, catchment, geology),

  • the bridge from domain-side supports to the generic Field contract,

  • the way FieldParam consumes those supports during solver property mapping.

Code map#

  • hydromodpy/spatial/domain/domain_config.py: high-level domain declaration including support registration.

  • hydromodpy/spatial/domain/spatial_support_config.py: typed support-definition models.

  • hydromodpy/spatial/domain/spatial_support.py: runtime support builders and providers.

  • hydromodpy/spatial/field/core/field_param.py: consumption point through field_spatial_id.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_fieldparam_discretization.py: downstream discretization over solver meshes.

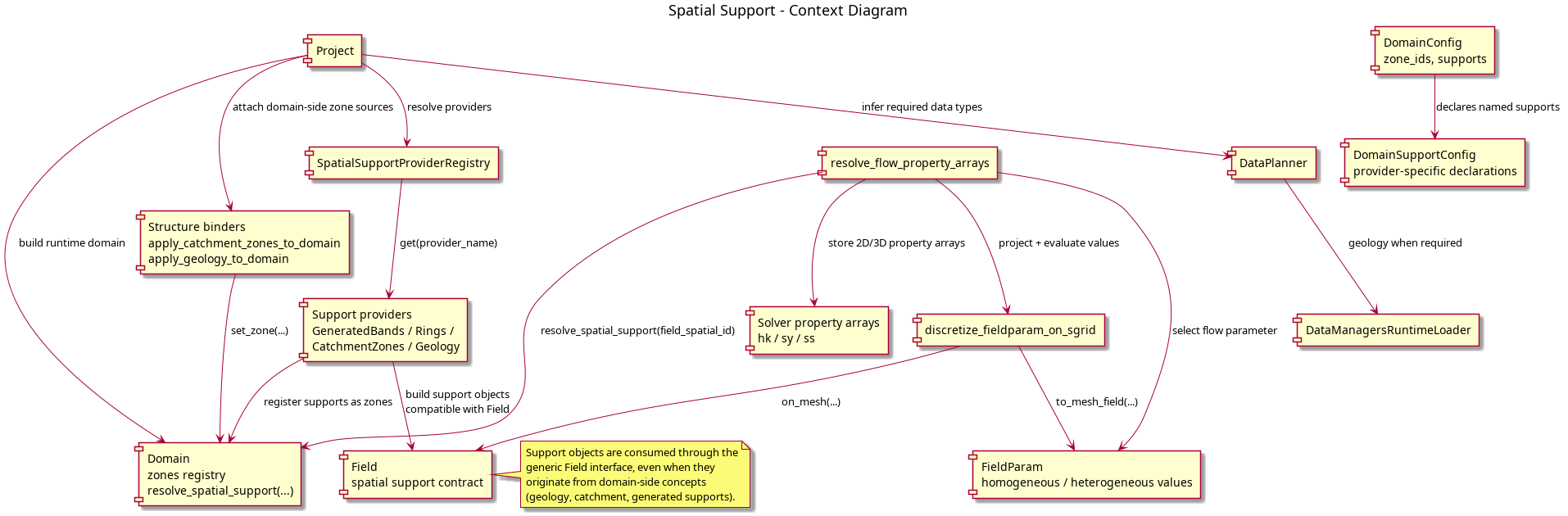

Context Diagram#

Use this diagram to position the main modules and runtime responsibilities.

@startuml title Spatial Support - Context Diagram component "DomainConfig\nzone_ids, supports" as DomainConfig component "DomainSupportConfig\nprovider-specific declarations" as SupportConfig component "Project" as Project component "DataPlanner" as Planner component "DataManagersRuntimeLoader" as Loader component "Structure binders\napply_catchment_zones_to_domain\napply_geology_to_domain" as Binders component "Domain\nzones registry\nresolve_spatial_support(...)" as Domain component "SpatialSupportProviderRegistry" as Registry component "Support providers\nGeneratedBands / Rings /\nCatchmentZones / Geology" as Providers component "Field\nspatial support contract" as Field component "FieldParam\nhomogeneous / heterogeneous values" as FieldParam component "discretize_fieldparam_on_sgrid" as Discretizer component "resolve_flow_property_arrays" as PropertyMapping component "Solver property arrays\nhk / sy / ss" as SolverArrays DomainConfig --> SupportConfig : declares named supports Project --> Planner : infer required data types Planner --> Loader : geology when required Project --> Domain : build runtime domain Project --> Binders : attach domain-side zone sources Binders --> Domain : set_zone(...) Project --> Registry : resolve providers Registry --> Providers : get(provider_name) Providers --> Field : build support objects\ncompatible with Field Providers --> Domain : register supports as zones PropertyMapping --> FieldParam : select flow parameter PropertyMapping --> Domain : resolve_spatial_support(field_spatial_id) PropertyMapping --> Discretizer : project + evaluate values Discretizer --> Field : on_mesh(...) Discretizer --> FieldParam : to_mesh_field(...) PropertyMapping --> SolverArrays : store 2D/3D property arrays note right of Field Support objects are consumed through the generic Field interface, even when they originate from domain-side concepts (geology, catchment, generated supports). end note @enduml

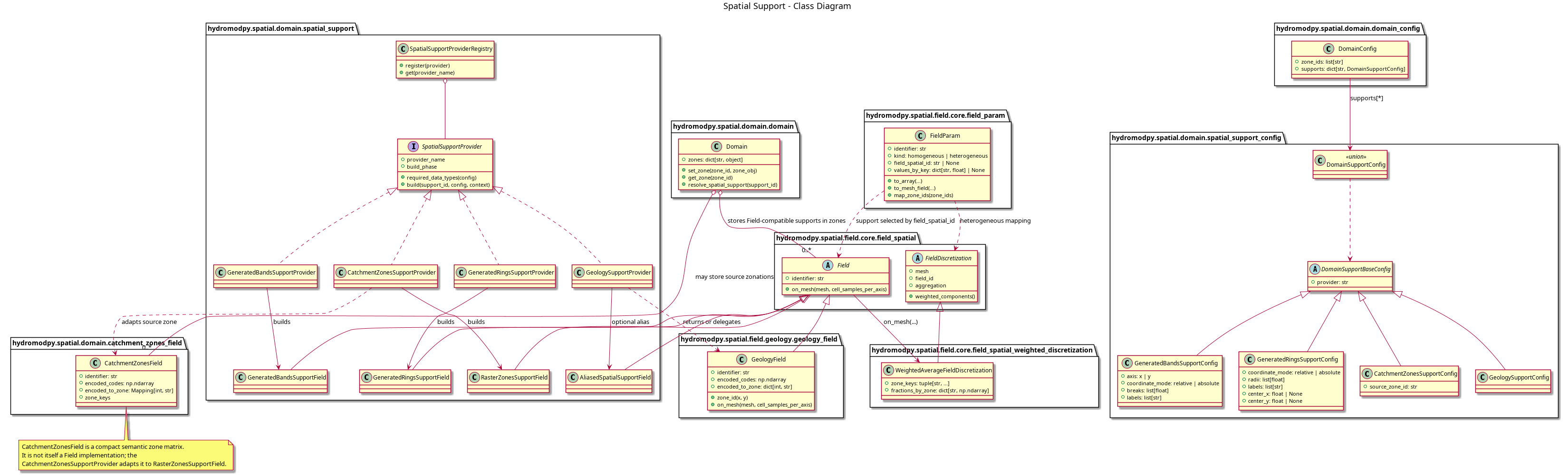

Class Diagram#

Use this diagram to document the supported zone-definition cases and the relationships between DomainConfig, support configs, provider classes, support-field implementations, Field, and FieldParam.

@startuml title Spatial Support - Class Diagram package "hydromodpy.spatial.domain.domain_config" { class DomainConfig { +zone_ids: list[str] +supports: dict[str, DomainSupportConfig] } } package "hydromodpy.spatial.domain.spatial_support_config" { abstract class DomainSupportBaseConfig { +provider: str } class GeneratedBandsSupportConfig { +axis: x | y +coordinate_mode: relative | absolute +breaks: list[float] +labels: list[str] } class GeneratedRingsSupportConfig { +coordinate_mode: relative | absolute +radii: list[float] +labels: list[str] +center_x: float | None +center_y: float | None } class CatchmentZonesSupportConfig { +source_zone_id: str } class GeologySupportConfig class DomainSupportConfig <<union>> } package "hydromodpy.spatial.domain.spatial_support" { interface SpatialSupportProvider { +provider_name +build_phase +required_data_types(config) +build(support_id, config, context) } class SpatialSupportProviderRegistry { +register(provider) +get(provider_name) } class AliasedSpatialSupportField class RasterZonesSupportField class GeneratedBandsSupportField class GeneratedRingsSupportField class GeneratedBandsSupportProvider class GeneratedRingsSupportProvider class CatchmentZonesSupportProvider class GeologySupportProvider } package "hydromodpy.spatial.domain.domain" { class Domain { +zones: dict[str, object] +set_zone(zone_id, zone_obj) +get_zone(zone_id) +resolve_spatial_support(support_id) } } package "hydromodpy.spatial.domain.catchment_zones_field" { class CatchmentZonesField { +identifier: str +encoded_codes: np.ndarray +encoded_to_zone: Mapping[int, str] +zone_keys } } package "hydromodpy.spatial.field.geology.geology_field" { class GeologyField { +identifier: str +encoded_codes: np.ndarray +encoded_to_zone: dict[int, str] +zone_id(x, y) +on_mesh(mesh, cell_samples_per_axis) } } package "hydromodpy.spatial.field.core.field_spatial" { abstract class Field { +identifier: str +on_mesh(mesh, cell_samples_per_axis) } abstract class FieldDiscretization { +mesh +field_id +aggregation +weighted_components() } } package "hydromodpy.spatial.field.core.field_spatial_weighted_discretization" { class WeightedAverageFieldDiscretization { +zone_keys: tuple[str, ...] +fractions_by_zone: dict[str, np.ndarray] } } package "hydromodpy.spatial.field.core.field_param" { class FieldParam { +identifier: str +kind: homogeneous | heterogeneous +field_spatial_id: str | None +values_by_key: dict[str, float] | None +to_array(...) +to_mesh_field(...) +map_zone_ids(zone_ids) } } DomainConfig --> DomainSupportConfig : supports[*] DomainSupportBaseConfig <|-- GeneratedBandsSupportConfig DomainSupportBaseConfig <|-- GeneratedRingsSupportConfig DomainSupportBaseConfig <|-- CatchmentZonesSupportConfig DomainSupportBaseConfig <|-- GeologySupportConfig DomainSupportConfig ..> DomainSupportBaseConfig SpatialSupportProviderRegistry o-- SpatialSupportProvider SpatialSupportProvider <|.. GeneratedBandsSupportProvider SpatialSupportProvider <|.. GeneratedRingsSupportProvider SpatialSupportProvider <|.. CatchmentZonesSupportProvider SpatialSupportProvider <|.. GeologySupportProvider GeneratedBandsSupportProvider --> GeneratedBandsSupportField : builds GeneratedRingsSupportProvider --> GeneratedRingsSupportField : builds CatchmentZonesSupportProvider --> RasterZonesSupportField : builds CatchmentZonesSupportProvider ..> CatchmentZonesField : adapts source zone GeologySupportProvider --> AliasedSpatialSupportField : optional alias GeologySupportProvider ..> GeologyField : returns or delegates Field <|-- AliasedSpatialSupportField Field <|-- RasterZonesSupportField Field <|-- GeneratedBandsSupportField Field <|-- GeneratedRingsSupportField Field <|-- GeologyField FieldDiscretization <|-- WeightedAverageFieldDiscretization Field --> WeightedAverageFieldDiscretization : on_mesh(...) FieldParam ..> Field : support selected by field_spatial_id FieldParam ..> FieldDiscretization : heterogeneous mapping Domain o-- "0..*" Field : stores Field-compatible supports in zones Domain o-- "0..*" CatchmentZonesField : may store source zonations note bottom of CatchmentZonesField CatchmentZonesField is a compact semantic zone matrix. It is not itself a Field implementation; the CatchmentZonesSupportProvider adapts it to RasterZonesSupportField. end note @enduml

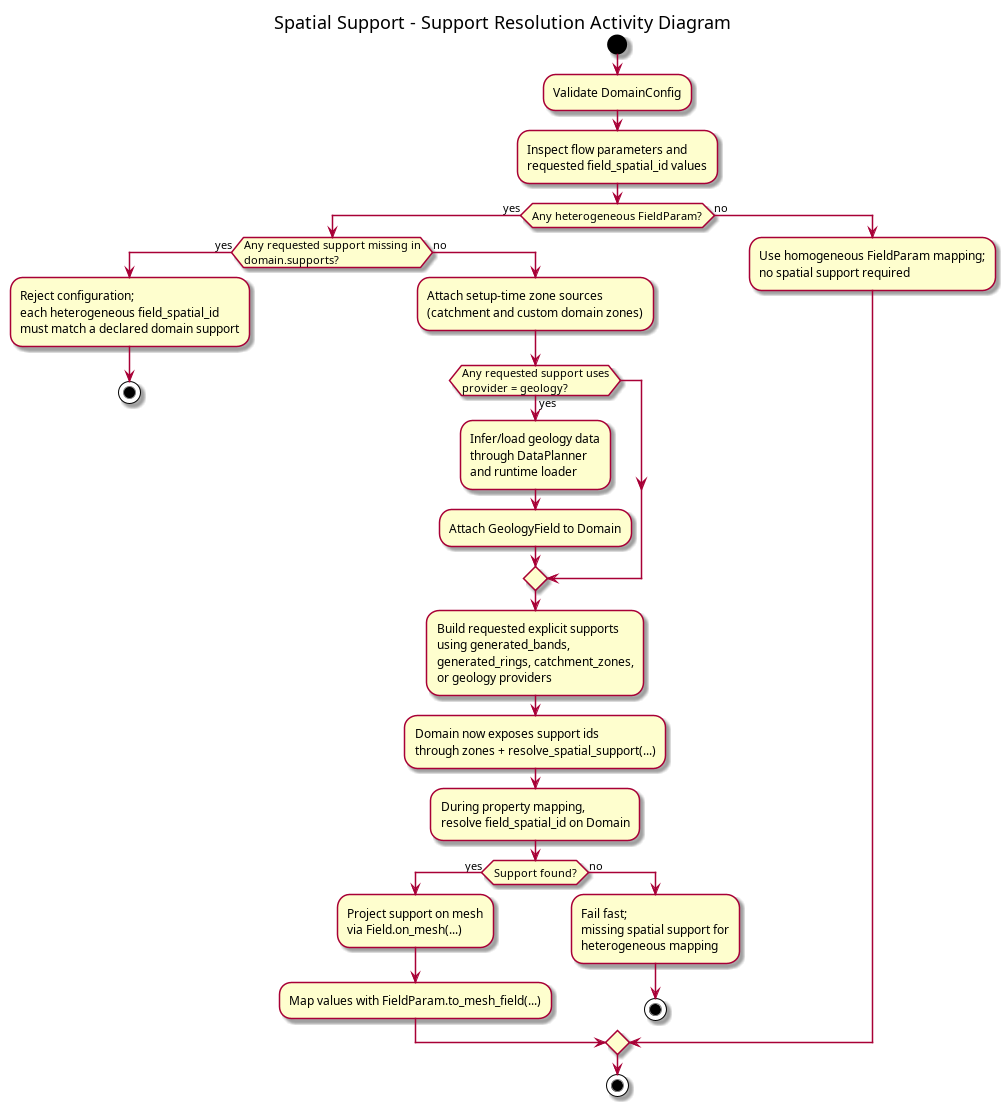

Support-Resolution Activity Diagram#

Use this diagram to explain how explicit support declarations drive runtime behavior and data dependencies.

@startuml title Spatial Support - Support Resolution Activity Diagram start :Validate DomainConfig; :Inspect flow parameters and\nrequested field_spatial_id values; if (Any heterogeneous FieldParam?) then (yes) if (Any requested support missing in\ndomain.supports?) then (yes) :Reject configuration;\neach heterogeneous field_spatial_id\nmust match a declared domain support; stop else (no) :Attach setup-time zone sources\n(catchment and custom domain zones); if (Any requested support uses\nprovider = geology?) then (yes) :Infer/load geology data\nthrough DataPlanner\nand runtime loader; :Attach GeologyField to Domain; endif :Build requested explicit supports\nusing generated_bands,\ngenerated_rings, catchment_zones,\nor geology providers; :Domain now exposes support ids\nthrough zones + resolve_spatial_support(...); :During property mapping,\nresolve field_spatial_id on Domain; if (Support found?) then (yes) :Project support on mesh\nvia Field.on_mesh(...); :Map values with FieldParam.to_mesh_field(...); else (no) :Fail fast;\nmissing spatial support for\nheterogeneous mapping; stop endif endif else (no) :Use homogeneous FieldParam mapping;\nno spatial support required; endif stop @enduml

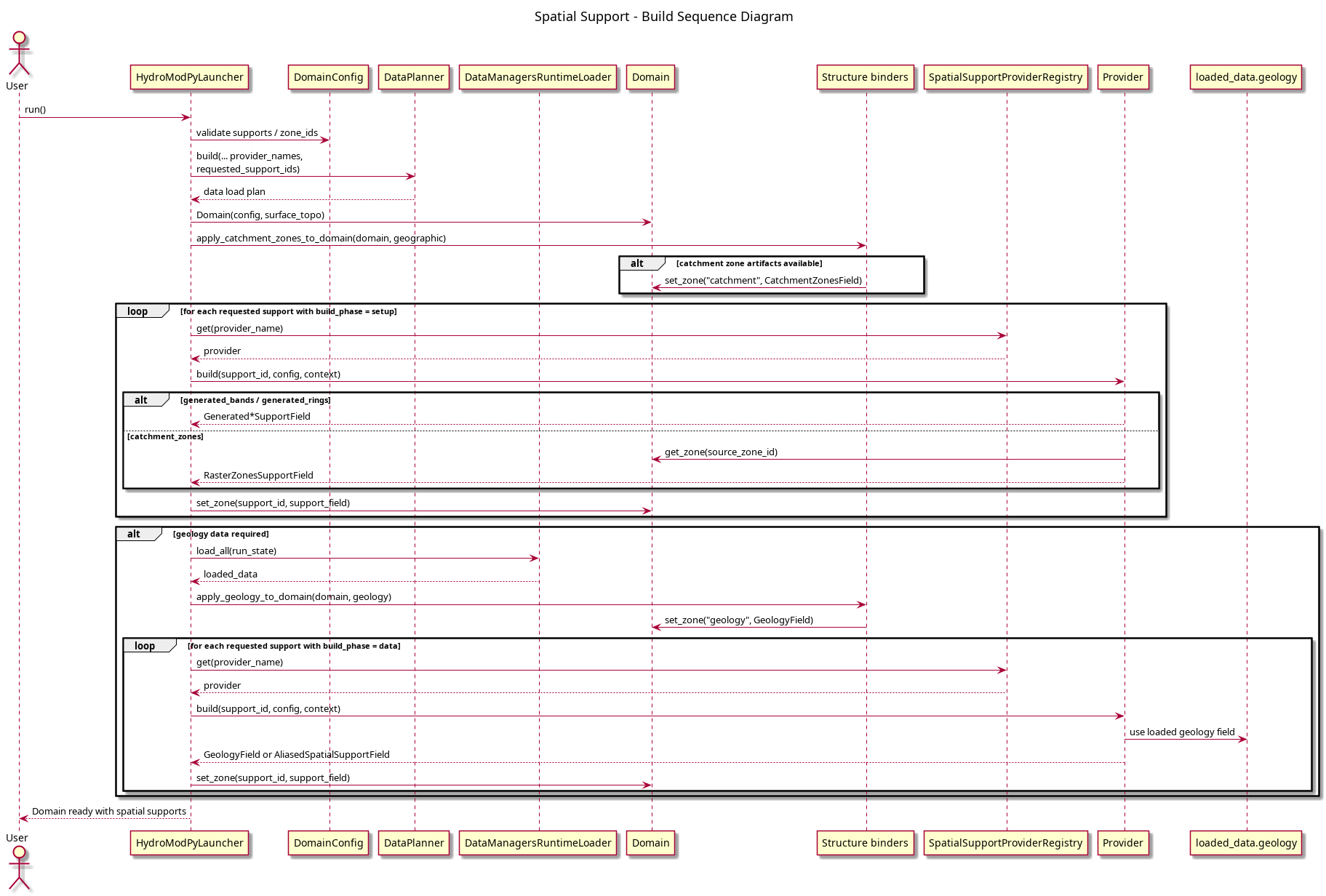

Support-Build Sequence Diagram#

Use this diagram to describe how the project facade builds and registers support objects during setup and data phases.

@startuml title Spatial Support - Build Sequence Diagram actor User participant "HydroModPyLauncher" as Launcher participant "DomainConfig" as DomainCfg participant "DataPlanner" as Planner participant "DataManagersRuntimeLoader" as Loader participant "Domain" as Domain participant "Structure binders" as Binders participant "SpatialSupportProviderRegistry" as Registry participant "Provider" as Provider participant "loaded_data.geology" as Geology User -> Launcher: run() Launcher -> DomainCfg: validate supports / zone_ids Launcher -> Planner: build(... provider_names,\nrequested_support_ids) Planner --> Launcher: data load plan Launcher -> Domain: Domain(config, surface_topo) Launcher -> Binders: apply_catchment_zones_to_domain(domain, geographic) alt catchment zone artifacts available Binders -> Domain: set_zone("catchment", CatchmentZonesField) end loop for each requested support with build_phase = setup Launcher -> Registry: get(provider_name) Registry --> Launcher: provider Launcher -> Provider: build(support_id, config, context) alt generated_bands / generated_rings Provider --> Launcher: Generated*SupportField else catchment_zones Provider -> Domain: get_zone(source_zone_id) Provider --> Launcher: RasterZonesSupportField end Launcher -> Domain: set_zone(support_id, support_field) end alt geology data required Launcher -> Loader: load_all(run_state) Loader --> Launcher: loaded_data Launcher -> Binders: apply_geology_to_domain(domain, geology) Binders -> Domain: set_zone("geology", GeologyField) loop for each requested support with build_phase = data Launcher -> Registry: get(provider_name) Registry --> Launcher: provider Launcher -> Provider: build(support_id, config, context) Provider -> Geology: use loaded geology field Provider --> Launcher: GeologyField or AliasedSpatialSupportField Launcher -> Domain: set_zone(support_id, support_field) end end Launcher --> User: Domain ready with spatial supports @enduml

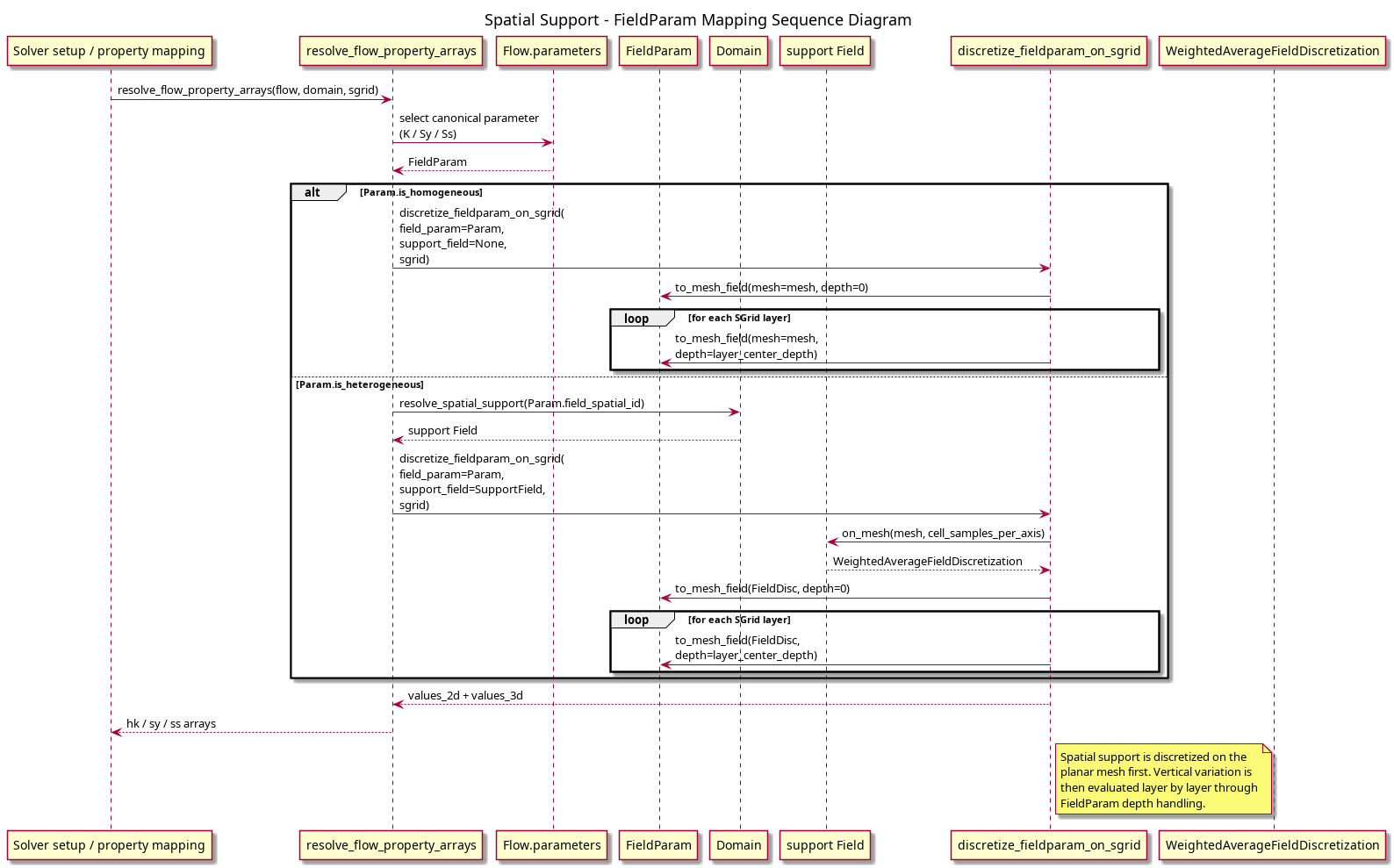

FieldParam-Mapping Sequence Diagram#

Use this diagram to describe how a support is consumed when a heterogeneous FieldParam is mapped to solver arrays.

@startuml title Spatial Support - FieldParam Mapping Sequence Diagram participant "Solver setup / property mapping" as Solver participant "resolve_flow_property_arrays" as PropertyMapping participant "Flow.parameters" as FlowParams participant "FieldParam" as Param participant "Domain" as Domain participant "support Field" as SupportField participant "discretize_fieldparam_on_sgrid" as Discretizer participant "WeightedAverageFieldDiscretization" as FieldDisc Solver -> PropertyMapping: resolve_flow_property_arrays(flow, domain, sgrid) PropertyMapping -> FlowParams: select canonical parameter\n(K / Sy / Ss) FlowParams --> PropertyMapping: FieldParam alt Param.is_homogeneous PropertyMapping -> Discretizer: discretize_fieldparam_on_sgrid(\nfield_param=Param,\nsupport_field=None,\nsgrid) Discretizer -> Param: to_mesh_field(mesh=mesh, depth=0) loop for each SGrid layer Discretizer -> Param: to_mesh_field(mesh=mesh,\ndepth=layer_center_depth) end else Param.is_heterogeneous PropertyMapping -> Domain: resolve_spatial_support(Param.field_spatial_id) Domain --> PropertyMapping: support Field PropertyMapping -> Discretizer: discretize_fieldparam_on_sgrid(\nfield_param=Param,\nsupport_field=SupportField,\nsgrid) Discretizer -> SupportField: on_mesh(mesh, cell_samples_per_axis) SupportField --> Discretizer: WeightedAverageFieldDiscretization Discretizer -> Param: to_mesh_field(FieldDisc, depth=0) loop for each SGrid layer Discretizer -> Param: to_mesh_field(FieldDisc,\ndepth=layer_center_depth) end end Discretizer --> PropertyMapping: values_2d + values_3d PropertyMapping --> Solver: hk / sy / ss arrays note right of Discretizer Spatial support is discretized on the planar mesh first. Vertical variation is then evaluated layer by layer through FieldParam depth handling. end note @enduml
