Simulation Orchestration Class Diagram#

Scope#

This diagram documents the static orchestration layer that connects the public Project facade to simulation planning and solver execution.

It focuses on:

  • Project as the top-level orchestrator that the CLI (hmp run) and Python users instantiate,

  • SimulationPlanner and the immutable SimulationPlan / ProcessRun objects it builds,

  • SimulationRunner as the runtime dispatcher,

  • the project-owned runtime state exchanged between orchestration phases,

  • process runtimes (Flow, Transport) and the solver adapters they feed.

Code map#

  • hydromodpy/project/facade.py: the public Project facade. Holds the mutable runtime state and wires the pipeline phases.

  • hydromodpy/cli/commands/run.py and hydromodpy/cli/workflows.py: the hmp run <toml> entry point. Loads the TOML, builds a HydroModPyConfig, and delegates to Project.

  • hydromodpy/simulation/planning/planner.py and plan.py: planner boundary and immutable planning result.

  • hydromodpy/simulation/execution/runner.py: runtime dispatcher over ProcessRun entries.

  • hydromodpy/physics/ and hydromodpy/solver/: downstream runtime objects and concrete backends.

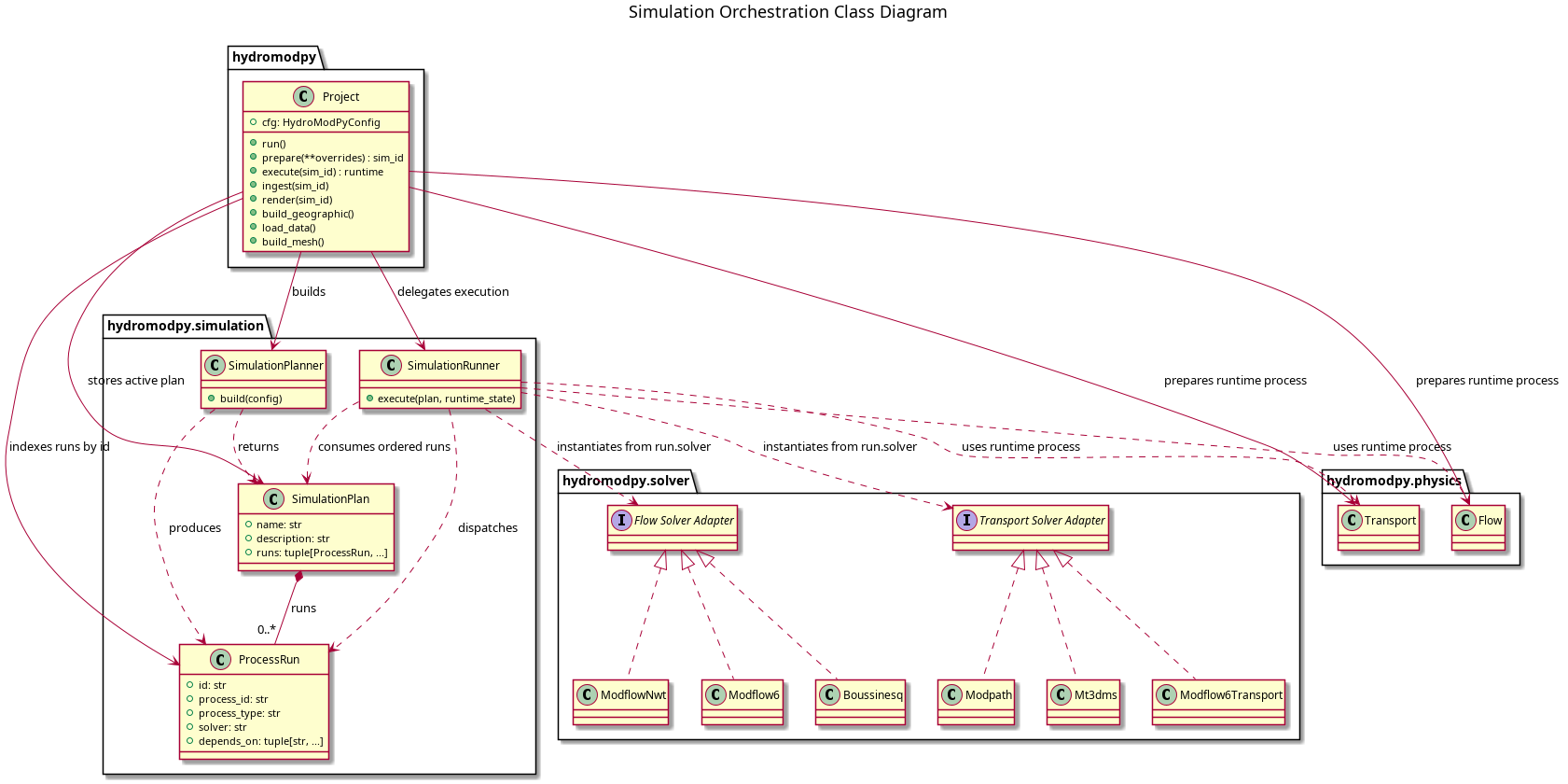

Diagram source#

@startuml title Simulation Orchestration Class Diagram package "hydromodpy" { class Project { +cfg: HydroModPyConfig +run() +prepare(**overrides) : sim_id +execute(sim_id) : runtime +ingest(sim_id) +render(sim_id) +build_geographic() +load_data() +build_mesh() } } package "hydromodpy.simulation" { class SimulationPlanner { +build(config) } class SimulationPlan { +name: str +description: str +runs: tuple[ProcessRun, ...] } class ProcessRun { +id: str +process_id: str +process_type: str +solver: str +depends_on: tuple[str, ...] } class SimulationRunner { +execute(plan, runtime_state) } } package "hydromodpy.physics" { class Flow class Transport } package "hydromodpy.solver" { interface "Flow Solver Adapter" as FlowSolver class ModflowNwt class Modflow6 class Boussinesq interface "Transport Solver Adapter" as TransportSolver class Modpath class Mt3dms class Modflow6Transport } Project --> SimulationPlanner : builds Project --> SimulationRunner : delegates execution SimulationPlanner ..> SimulationPlan : returns SimulationPlanner ..> ProcessRun : produces SimulationPlan *-- "0..*" ProcessRun : runs Project --> SimulationPlan : stores active plan Project --> ProcessRun : indexes runs by id Project --> Flow : prepares runtime process Project --> Transport : prepares runtime process SimulationRunner ..> SimulationPlan : consumes ordered runs SimulationRunner ..> ProcessRun : dispatches SimulationRunner ..> Flow : uses runtime process SimulationRunner ..> Transport : uses runtime process SimulationRunner ..> FlowSolver : instantiates from run.solver SimulationRunner ..> TransportSolver : instantiates from run.solver FlowSolver <|.. ModflowNwt FlowSolver <|.. Modflow6 FlowSolver <|.. Boussinesq TransportSolver <|.. Modpath TransportSolver <|.. Mt3dms TransportSolver <|.. Modflow6Transport @enduml

Notes#

  • SimulationPlan is intentionally immutable. The planner produces it once, then the runner consumes it without rewriting scheduling decisions.

  • The mutable execution state stays owned by Project, which gradually accumulates runtime objects and produced models across phases (setup_workspace, build_geographic, load_data, build_mesh, prepare, execute, ingest, render).

  • SimulationRunner does not decide the schedule. It only dispatches the already-resolved ProcessRun entries to the right solver adapter.

  • Solver adapters are selected from ProcessRun.solver, which keeps solver choice explicit and traceable in the plan itself.
