Process Architecture#

This page is the code-oriented entry point for hydromodpy.physics, the layer that turns validated configuration into the runtime Flow and Transport objects consumed by solver adapters.

It groups the package map, the reusable contracts, the runtime data model, and every UML diagram (component, class, sequence, lifecycle, extension) in one place.

Package map#

The current hydromodpy.physics stack is split into six concerns:

  • hydromodpy.physics: public compatibility facade that re-exports the main process symbols.

  • hydromodpy.physics.contracts: explicit import path for generic process-layer contracts reused internally.

  • hydromodpy.physics.prototype: process-agnostic building blocks (ProcessSpatial, ProcessSpatialConfig, InitialCondition, BoundaryCondition, SinkSource).

  • hydromodpy.physics.flow: concrete flow process plus typed config and payload models.

  • hydromodpy.physics.transport: concrete transport process plus typed config.

  • hydromodpy.physics.forcing: helpers that turn loaded data into process-ready forcing payloads aligned to simulation time.

  • hydromodpy.physics.hydrology: hydrological utilities, synthetic forcing helpers, and the pyhelp coupling stack.

Runtime role:

  • physics defines the hydrological problem payloads,

  • simulation decides when those payloads are executed,

  • solver decides how they are numerically solved.

Reading paths by concern#

Generic process contracts (“what is the shared contract behind process objects?”):

  1. hydromodpy/process/contracts.py

  2. hydromodpy/process/prototype/__init__.py

  3. files under hydromodpy/process/prototype/

Flow process (“what does the project materialize before a flow solve?”):

  1. hydromodpy/process/flow/__init__.py

  2. hydromodpy/process/flow/flow.py

  3. hydromodpy/process/flow/flow_config.py

  4. initial / boundary / sinks-source payload files in the same package

Transport process (“what transport runtime object is passed to the adapter?”):

  1. hydromodpy/process/transport/transport.py

  2. hydromodpy/process/transport/transport_config.py

Forcing bridge (“how do loaded data become solver-ready time series?”):

  1. hydromodpy/process/forcing/forcing_bridge.py

  2. hydromodpy/process/forcing/time_alignment.py

Adding a new process (extension workflow): see the activity diagram below.

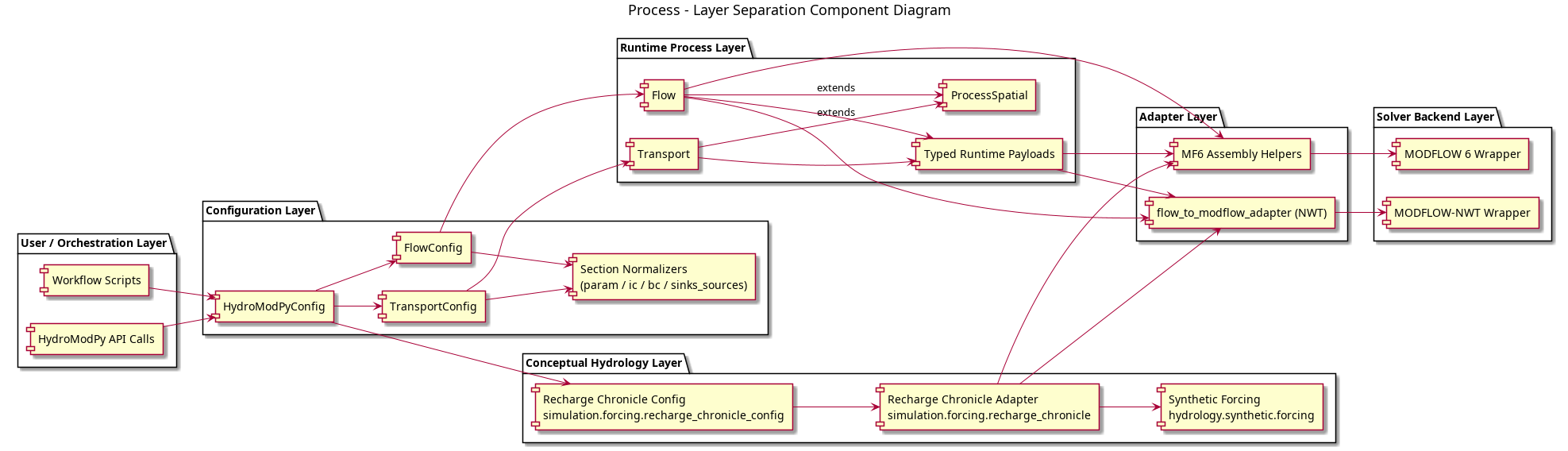

Layer separation (component diagram)#

Architectural boundaries between configuration, runtime process objects, conceptual hydrology helpers, adapter logic, and solver backends.

@startuml title Process - Layer Separation Component Diagram left to right direction package "User / Orchestration Layer" { component "Workflow Scripts" as WorkflowScripts component "HydroModPy API Calls" as ApiCalls } package "Configuration Layer" { component "HydroModPyConfig" as HydroModPyConfig component "FlowConfig" as FlowConfig component "TransportConfig" as TransportConfig component "Section Normalizers\n(param / ic / bc / sinks_sources)" as Normalizers } package "Conceptual Hydrology Layer" { component "Recharge Chronicle Config\nsimulation.forcing.recharge_chronicle_config" as RechargeChronicleConfig component "Recharge Chronicle Adapter\nsimulation.forcing.recharge_chronicle" as RechargeChronicleAdapter component "Synthetic Forcing\nhydrology.synthetic.forcing" as HydrologySyntheticForcing } package "Runtime Process Layer" { component "ProcessSpatial" as ProcessSpatial component "Flow" as Flow component "Transport" as Transport component "Typed Runtime Payloads" as RuntimePayloads } package "Adapter Layer" { component "flow_to_modflow_adapter (NWT)" as FlowAdapterNwt component "MF6 Assembly Helpers" as Mf6Helpers } package "Solver Backend Layer" { component "MODFLOW-NWT Wrapper" as ModflowNwtWrapper component "MODFLOW 6 Wrapper" as Modflow6Wrapper } WorkflowScripts --> HydroModPyConfig ApiCalls --> HydroModPyConfig HydroModPyConfig --> FlowConfig HydroModPyConfig --> TransportConfig HydroModPyConfig --> RechargeChronicleConfig FlowConfig --> Normalizers TransportConfig --> Normalizers RechargeChronicleConfig --> RechargeChronicleAdapter RechargeChronicleAdapter --> HydrologySyntheticForcing FlowConfig --> Flow TransportConfig --> Transport Flow --> ProcessSpatial : extends Transport --> ProcessSpatial : extends Flow --> RuntimePayloads Transport --> RuntimePayloads Flow --> FlowAdapterNwt Flow --> Mf6Helpers RuntimePayloads --> FlowAdapterNwt RuntimePayloads --> Mf6Helpers RechargeChronicleAdapter --> FlowAdapterNwt RechargeChronicleAdapter --> Mf6Helpers FlowAdapterNwt --> ModflowNwtWrapper Mf6Helpers --> Modflow6Wrapper @enduml

Notes:

  • Config parsing and validation are isolated from solver-specific code.

  • Conceptual hydrology forcing remains outside hydromodpy.physics and is exposed through the simulation forcing adapter layer.

  • Runtime process classes are solver-agnostic containers.

  • Adapter components are the only layer allowed to translate runtime data to solver input formats.

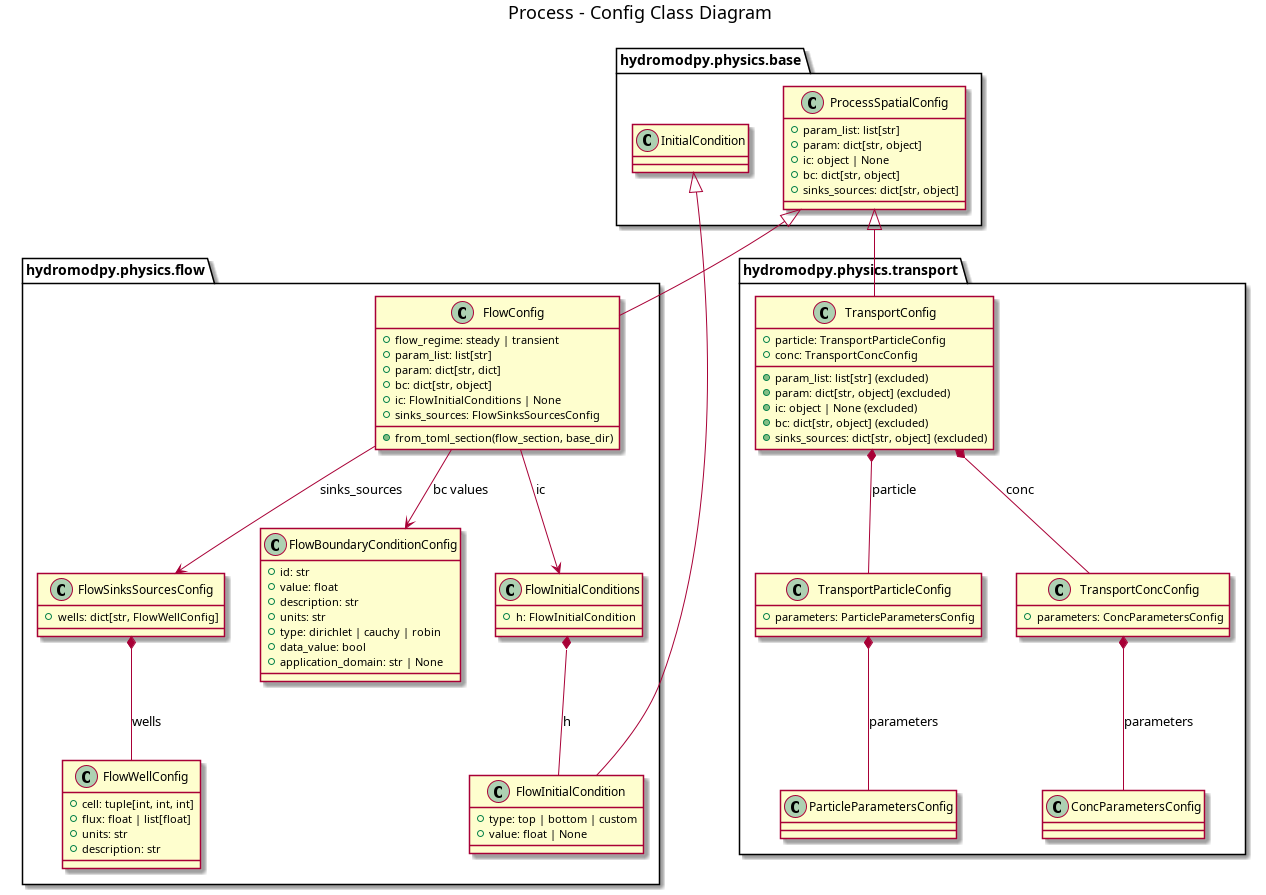

Config class diagram#

Validated configuration classes (Pydantic models): shared ProcessSpatialConfig base, FlowConfig and TransportConfig specialisations, flow-specific initial conditions, boundary conditions, and sink/source configs.

@startuml title Process - Config Class Diagram package "hydromodpy.physics.base" { class ProcessSpatialConfig { +param_list: list[str] +param: dict[str, object] +ic: object | None +bc: dict[str, object] +sinks_sources: dict[str, object] } class InitialCondition } package "hydromodpy.physics.flow" { class FlowConfig { +flow_regime: steady | transient +param_list: list[str] +param: dict[str, dict] +bc: dict[str, object] +ic: FlowInitialConditions | None +sinks_sources: FlowSinksSourcesConfig +from_toml_section(flow_section, base_dir) } class FlowInitialCondition { +type: top | bottom | custom +value: float | None } class FlowInitialConditions { +h: FlowInitialCondition } class FlowBoundaryConditionConfig { +id: str +value: float +description: str +units: str +type: dirichlet | cauchy | robin +data_value: bool +application_domain: str | None } class FlowWellConfig { +cell: tuple[int, int, int] +flux: float | list[float] +units: str +description: str } class FlowSinksSourcesConfig { +wells: dict[str, FlowWellConfig] } } package "hydromodpy.physics.transport" { class TransportConfig { +particle: TransportParticleConfig +conc: TransportConcConfig +param_list: list[str] (excluded) +param: dict[str, object] (excluded) +ic: object | None (excluded) +bc: dict[str, object] (excluded) +sinks_sources: dict[str, object] (excluded) } class ParticleParametersConfig class TransportParticleConfig { +parameters: ParticleParametersConfig } class ConcParametersConfig class TransportConcConfig { +parameters: ConcParametersConfig } } ProcessSpatialConfig <|-- FlowConfig ProcessSpatialConfig <|-- TransportConfig InitialCondition <|-- FlowInitialCondition FlowInitialConditions *-- FlowInitialCondition : h FlowConfig --> FlowInitialConditions : ic FlowConfig --> FlowBoundaryConditionConfig : bc values FlowConfig --> FlowSinksSourcesConfig : sinks_sources FlowSinksSourcesConfig *-- FlowWellConfig : wells TransportConfig *-- TransportParticleConfig : particle TransportConfig *-- TransportConcConfig : conc TransportParticleConfig *-- ParticleParametersConfig : parameters TransportConcConfig *-- ConcParametersConfig : parameters @enduml

Notes:

  • FlowConfig and TransportConfig inherit from ProcessSpatialConfig.

  • FlowInitialCondition inherits from prototype InitialCondition.

  • FlowBoundaryConditionConfig and FlowSinksSourcesConfig are dedicated flow models (not subclasses of prototype BoundaryCondition / SinkSource).

  • TransportConfig currently keeps boundary and sink/source payloads as generic mappings.

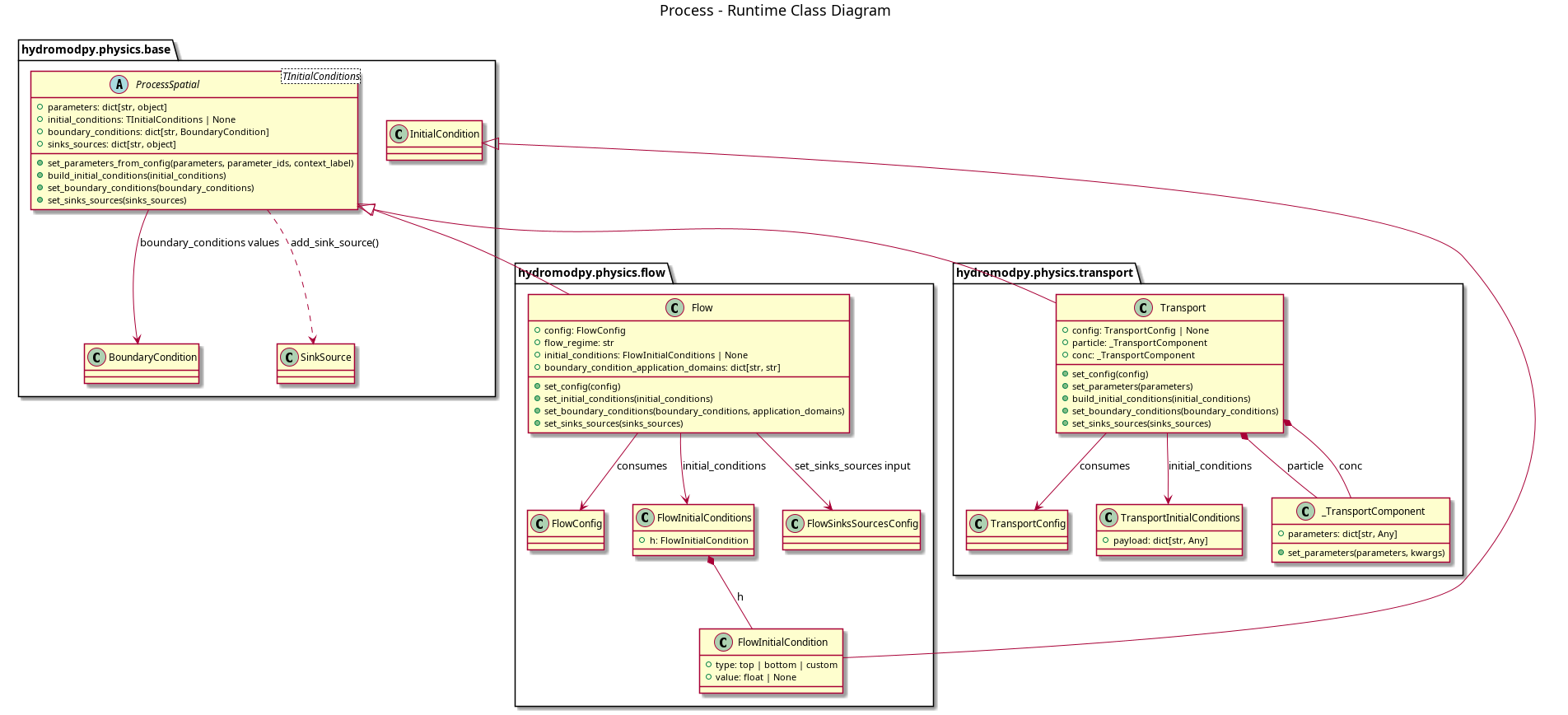

Runtime class diagram#

Runtime inheritance and composition for process objects: ProcessSpatial as the abstract runtime base, Flow and Transport as concrete implementations, runtime initial conditions, boundary conditions, and sink/source containers.

@startuml title Process - Runtime Class Diagram package "hydromodpy.physics.base" { abstract class "ProcessSpatial<TInitialConditions>" as ProcessSpatialT { +parameters: dict[str, object] +initial_conditions: TInitialConditions | None +boundary_conditions: dict[str, BoundaryCondition] +sinks_sources: dict[str, object] +set_parameters_from_config(parameters, parameter_ids, context_label) +build_initial_conditions(initial_conditions) +set_boundary_conditions(boundary_conditions) +set_sinks_sources(sinks_sources) } class InitialCondition class BoundaryCondition class SinkSource } package "hydromodpy.physics.flow" { class Flow { +config: FlowConfig +flow_regime: str +initial_conditions: FlowInitialConditions | None +boundary_condition_application_domains: dict[str, str] +set_config(config) +set_initial_conditions(initial_conditions) +set_boundary_conditions(boundary_conditions, application_domains) +set_sinks_sources(sinks_sources) } class FlowConfig class FlowInitialCondition { +type: top | bottom | custom +value: float | None } class FlowInitialConditions { +h: FlowInitialCondition } class FlowSinksSourcesConfig } package "hydromodpy.physics.transport" { class Transport { +config: TransportConfig | None +particle: _TransportComponent +conc: _TransportComponent +set_config(config) +set_parameters(parameters) +build_initial_conditions(initial_conditions) +set_boundary_conditions(boundary_conditions) +set_sinks_sources(sinks_sources) } class TransportConfig class TransportInitialConditions { +payload: dict[str, Any] } class _TransportComponent { +parameters: dict[str, Any] +set_parameters(parameters, kwargs) } } ProcessSpatialT <|-- Flow ProcessSpatialT <|-- Transport Flow --> FlowConfig : consumes Transport --> TransportConfig : consumes InitialCondition <|-- FlowInitialCondition FlowInitialConditions *-- FlowInitialCondition : h Flow --> FlowInitialConditions : initial_conditions Transport --> TransportInitialConditions : initial_conditions ProcessSpatialT --> BoundaryCondition : boundary_conditions values ProcessSpatialT ..> SinkSource : add_sink_source() Transport *-- _TransportComponent : particle Transport *-- _TransportComponent : conc Flow --> FlowSinksSourcesConfig : set_sinks_sources input @enduml

Notes:

  • Flow and Transport both inherit from ProcessSpatial.

  • FlowInitialCondition inherits from prototype InitialCondition.

  • Runtime boundary conditions stored by ProcessSpatial use prototype BoundaryCondition.

  • Runtime sink/source storage is generic (dict[str, object]), with process-specific payloads injected by child classes.

  • Recharge chronicle preparation stays outside this inheritance tree and is handled by simulation forcing services before solver assembly.

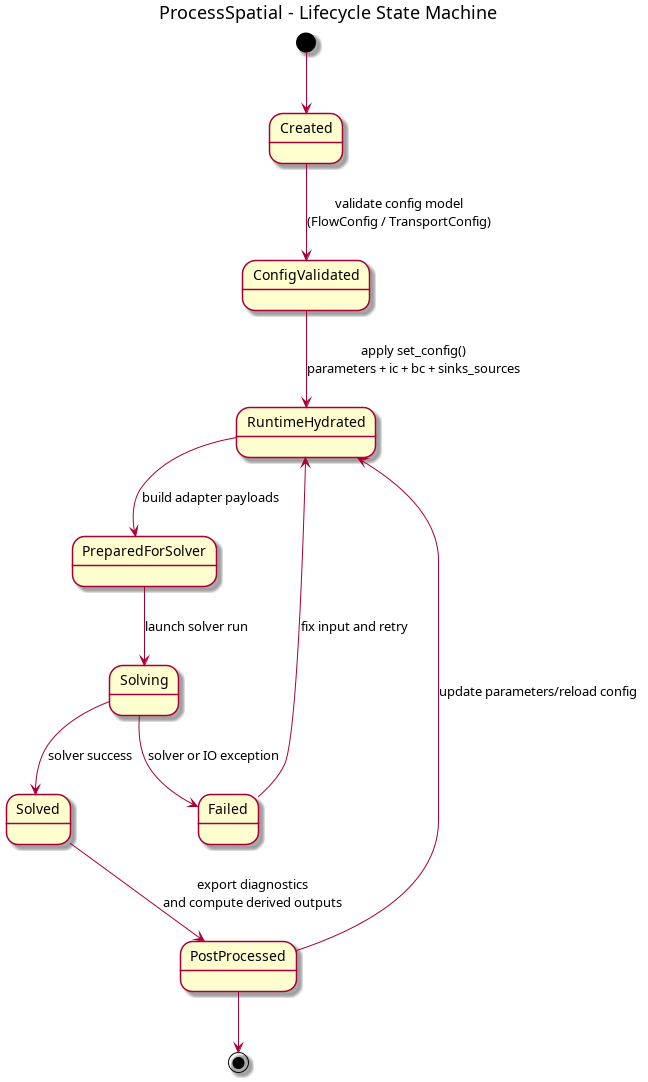

Lifecycle state machine#

The usual lifecycle of a ProcessSpatial-based runtime object, from creation to solver execution and post-processing.

@startuml title ProcessSpatial - Lifecycle State Machine [*] --> Created Created --> ConfigValidated : validate config model\n(FlowConfig / TransportConfig) ConfigValidated --> RuntimeHydrated : apply set_config()\nparameters + ic + bc + sinks_sources RuntimeHydrated --> PreparedForSolver : build adapter payloads PreparedForSolver --> Solving : launch solver run Solving --> Solved : solver success Solving --> Failed : solver or IO exception Solved --> PostProcessed : export diagnostics\nand compute derived outputs PostProcessed --> RuntimeHydrated : update parameters/reload config Failed --> RuntimeHydrated : fix input and retry PostProcessed --> [*] @enduml

Notes:

  • RuntimeHydrated means parameters, IC, BC, and sinks/sources are set.

  • PreparedForSolver represents adapter-resolved arrays / dictionaries.

  • Failures can route back to hydration after config or data corrections.

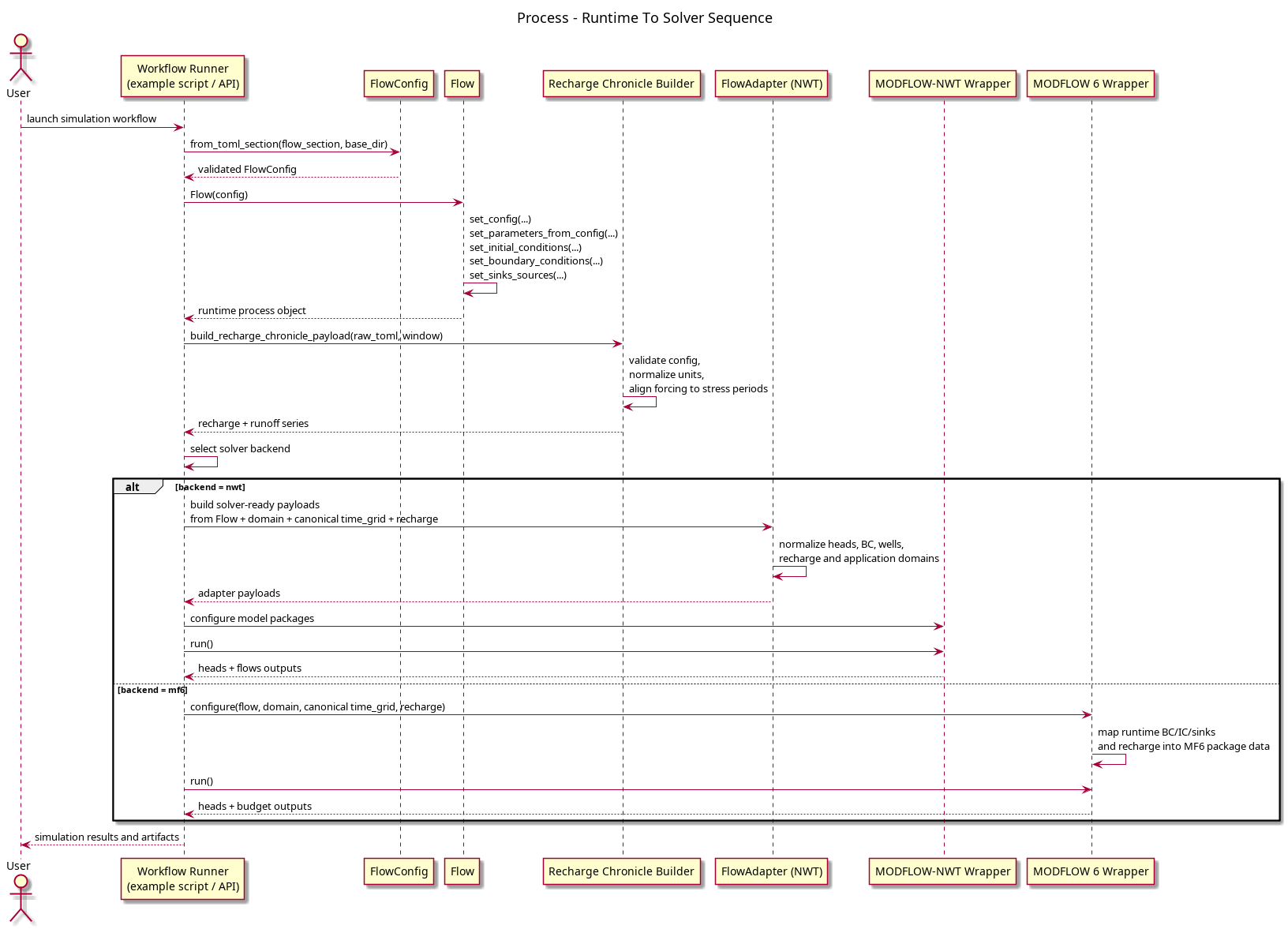

Runtime-to-solver sequence#

The main runtime handoff from process objects to solver backends: runtime construction of Flow from validated config, recharge chronicle preparation before solver assembly, adapter-level transformation into solver payloads, and backend-specific execution.

@startuml title Process - Runtime To Solver Sequence actor User participant "Workflow Runner\n(example script / API)" as Runner participant "FlowConfig" as FlowConfig participant "Flow" as Flow participant "Recharge Chronicle Builder" as RechargeBuilder participant "FlowAdapter (NWT)" as FlowAdapter participant "MODFLOW-NWT Wrapper" as NWT participant "MODFLOW 6 Wrapper" as MF6 User -> Runner: launch simulation workflow Runner -> FlowConfig: from_toml_section(flow_section, base_dir) FlowConfig --> Runner: validated FlowConfig Runner -> Flow: Flow(config) Flow -> Flow: set_config(...)\nset_parameters_from_config(...)\nset_initial_conditions(...)\nset_boundary_conditions(...)\nset_sinks_sources(...) Flow --> Runner: runtime process object Runner -> RechargeBuilder: build_recharge_chronicle_payload(raw_toml, window) RechargeBuilder -> RechargeBuilder: validate config,\nnormalize units,\nalign forcing to stress periods RechargeBuilder --> Runner: recharge + runoff series Runner -> Runner: select solver backend alt backend = nwt Runner -> FlowAdapter: build solver-ready payloads\nfrom Flow + domain + canonical time_grid + recharge FlowAdapter -> FlowAdapter: normalize heads, BC, wells,\nrecharge and application domains FlowAdapter --> Runner: adapter payloads Runner -> NWT: configure model packages Runner -> NWT: run() NWT --> Runner: heads + flows outputs else backend = mf6 Runner -> MF6: configure(flow, domain, canonical time_grid, recharge) MF6 -> MF6: map runtime BC/IC/sinks\nand recharge into MF6 package data Runner -> MF6: run() MF6 --> Runner: heads + budget outputs end Runner --> User: simulation results and artifacts @enduml

Notes:

  • The sequence is logical and backend-agnostic at the high level.

  • Payload conversion is explicitly separated from process runtime state.

  • Recharge forcing is prepared before solver assembly and injected as already-aligned series.

  • Solver wrappers remain consumers of already-normalised process data.

  • For detailed DIS payload semantics, see MODFLOW-NWT Contracts.

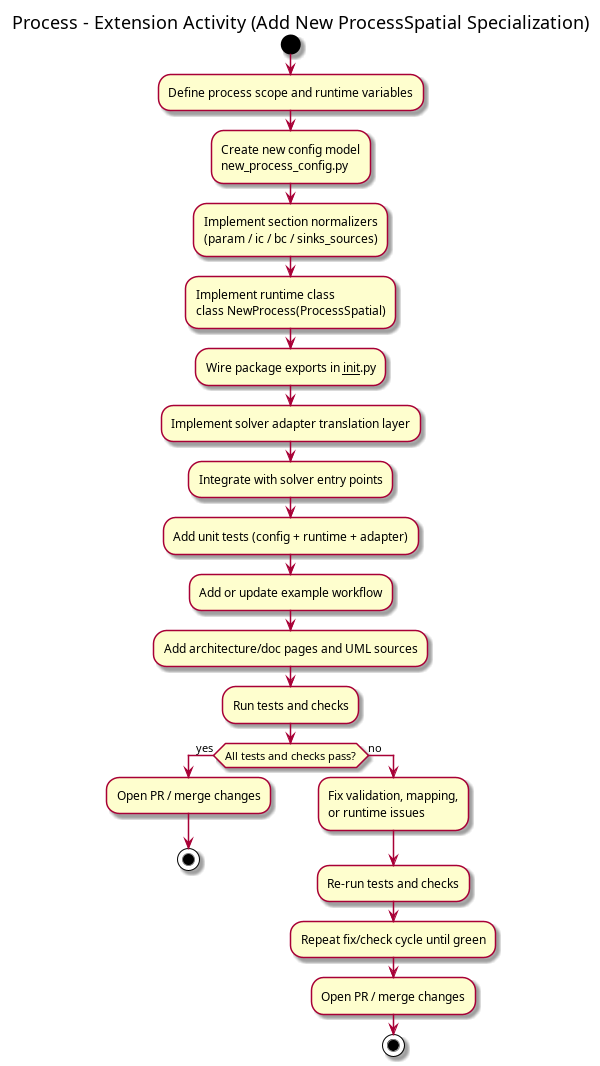

Extending with a new process#

Practical workflow to add a new ProcessSpatial specialisation: config model first, then runtime class, then adapters. Testing and documentation updates are mandatory completion steps; iteration is expected before final integration.

Reading path before extending:

  1. hydromodpy/process/prototype/process_spatial_config.py

  2. hydromodpy/process/prototype/process_spatial.py

  3. hydromodpy/process/flow/ as the main concrete example

  4. hydromodpy/solver/base/registry.py

  5. hydromodpy/solver/compatibility.py

@startuml title Process - Extension Activity (Add New ProcessSpatial Specialization) start :Define process scope and runtime variables; :Create new config model\nnew_process_config.py; :Implement section normalizers\n(param / ic / bc / sinks_sources); :Implement runtime class\nclass NewProcess(ProcessSpatial); :Wire package exports in __init__.py; :Implement solver adapter translation layer; :Integrate with solver entry points; :Add unit tests (config + runtime + adapter); :Add or update example workflow; :Add architecture/doc pages and UML sources; :Run tests and checks; if (All tests and checks pass?) then (yes) :Open PR / merge changes; stop else (no) :Fix validation, mapping,\nor runtime issues; :Re-run tests and checks; :Repeat fix/check cycle until green; :Open PR / merge changes; stop endif @enduml
