Boussinesq Solver UML Diagrams#

Scope#

These diagrams document the software architecture of hydromodpy.solver.boussinesq.

They are intentionally limited to four views:

  • package context;

  • core classes;

  • process-to-backend runtime sequence;

  • transient-step activity.

This is the right level for this package. The mathematical derivation already lives in the scientific notes, so the architecture documentation should focus on structure, responsibilities and handoff boundaries.

Simplification Review#

The current Boussinesq package is already much clearer than before:

  • the canonical Dirichlet concept is now prescribed boundary cells;

  • the active driver/runtime path now uses that prescribed-cell representation;

  • edge-based boundary diagnostics are rebuilt explicitly in boundary_flux_reconstruction.py instead of driving the solve path;

  • the method and engine taxonomy is explicit;

  • runtime state construction is centralized;

  • steady and transient orchestration have been extracted out of the main driver;

  • process-to-runtime normalization is extracted into solver_contract.py;

  • forcing resolution is now split into a stable facade plus specialized submodules;

  • shared boundary/ocean/drainage preparation is isolated in drivers/forcing.py;

  • the public assembly layer is now one facade over dedicated internal modules for inputs, fluxes, surface closures and residual builders;

  • the public semianalytic Jacobian layer is now one facade over dedicated internal modules for common helpers and sparse triplet builders;

  • runtime summary shaping and common runtime-result packaging are extracted into dedicated helpers;

  • the process-to-solver contract is explicit.

The main remaining simplification targets are:

  • keep the driver thin and avoid regrowing orchestration logic in boussinesq.py;

  • keep future cleanups focused on assembly_residuals.py, assembly_fluxes.py, jacobian_operator_triplets.py and jacobian_partition_triplets.py, which are now the main size hotspots;

  • continue factoring small pieces of common runtime bookkeeping only when the resulting helper stays clearer than the duplicated code.

Diagram 1: Package Context#

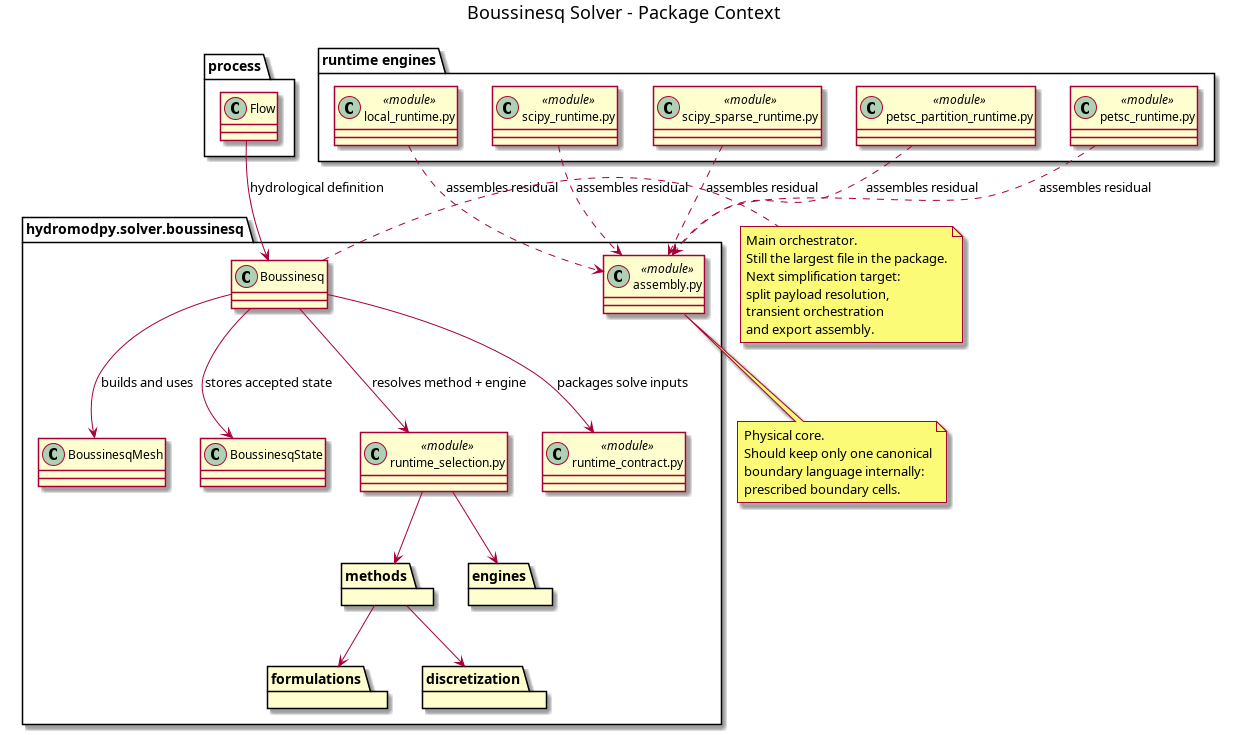

@startuml allowmixing title Boussinesq Solver - Package Context package "process" { class Flow } package "hydromodpy.solver.boussinesq" { class Boussinesq class BoussinesqMesh class BoussinesqState class "assembly.py" as AssemblyModule <<module>> class "runtime_selection.py" as RuntimeSelection <<module>> class "runtime_contract.py" as RuntimeContract <<module>> package methods package engines package formulations package discretization } package "runtime engines" { class "local_runtime.py" as LocalRuntime <<module>> class "scipy_runtime.py" as ScipyRuntime <<module>> class "scipy_sparse_runtime.py" as SparseRuntime <<module>> class "petsc_partition_runtime.py" as PetscPartitionRuntime <<module>> class "petsc_runtime.py" as PetscRuntime <<module>> } Flow --> Boussinesq : hydrological definition Boussinesq --> BoussinesqMesh : builds and uses Boussinesq --> RuntimeSelection : resolves method + engine RuntimeSelection --> methods RuntimeSelection --> engines methods --> formulations methods --> discretization Boussinesq --> RuntimeContract : packages solve inputs LocalRuntime ..> AssemblyModule : assembles residual ScipyRuntime ..> AssemblyModule : assembles residual SparseRuntime ..> AssemblyModule : assembles residual PetscPartitionRuntime ..> AssemblyModule : assembles residual PetscRuntime ..> AssemblyModule : assembles residual Boussinesq --> BoussinesqState : stores accepted state note right of Boussinesq Main orchestrator. Still the largest file in the package. Next simplification target: split payload resolution, transient orchestration and export assembly. end note note bottom of AssemblyModule Physical core. Should keep only one canonical boundary language internally: prescribed boundary cells. end note @enduml

Diagram 2: Core Classes#

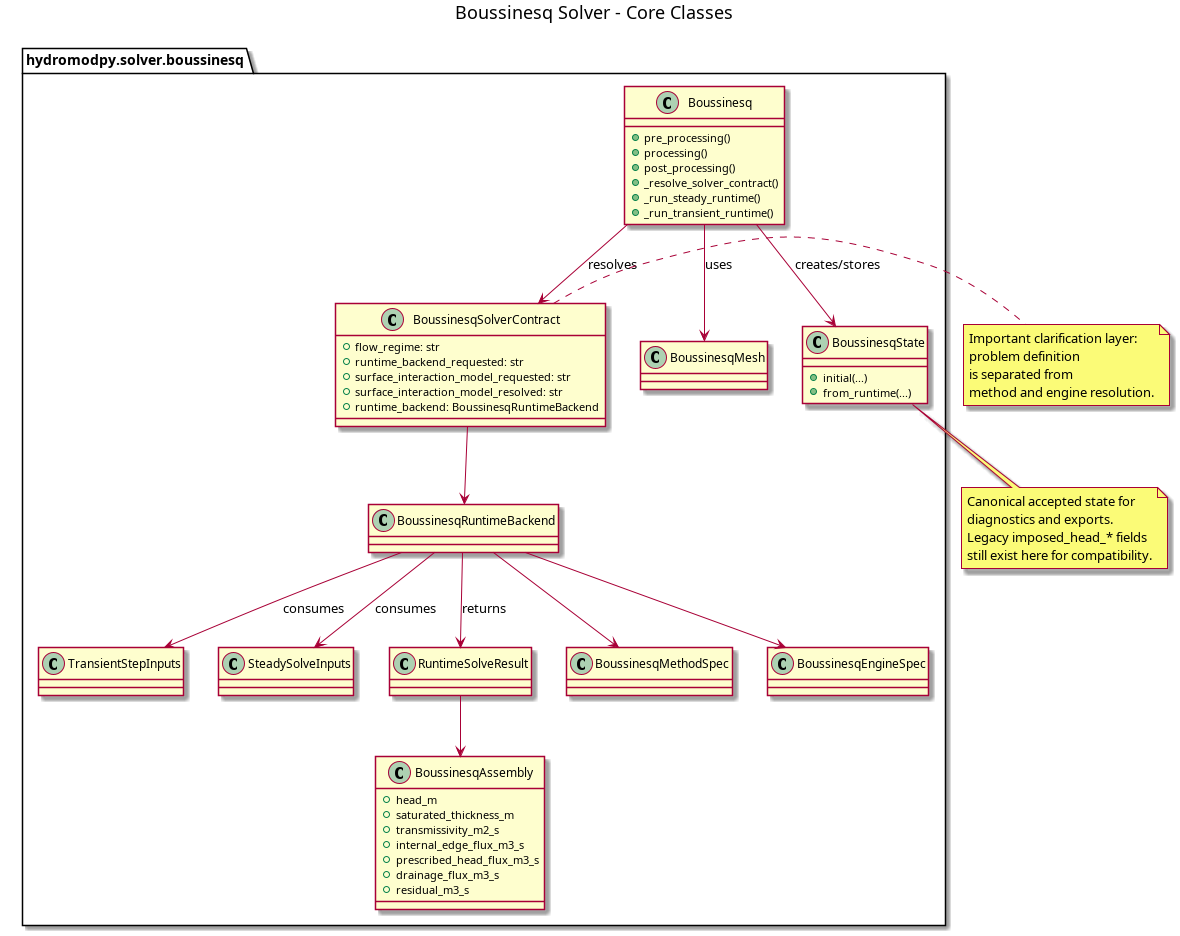

@startuml allowmixing title Boussinesq Solver - Core Classes package "hydromodpy.solver.boussinesq" { class Boussinesq { +pre_processing() +processing() +post_processing() +_resolve_solver_contract() +_run_steady_runtime() +_run_transient_runtime() } class BoussinesqSolverContract { +flow_regime: str +runtime_backend_requested: str +surface_interaction_model_requested: str +surface_interaction_model_resolved: str +runtime_backend: BoussinesqRuntimeBackend } class BoussinesqMesh class BoussinesqState { +initial(...) +from_runtime(...) } class BoussinesqAssembly { +head_m +saturated_thickness_m +transmissivity_m2_s +internal_edge_flux_m3_s +prescribed_head_flux_m3_s +drainage_flux_m3_s +residual_m3_s } class TransientStepInputs class SteadySolveInputs class RuntimeSolveResult class BoussinesqRuntimeBackend class BoussinesqMethodSpec class BoussinesqEngineSpec } Boussinesq --> BoussinesqMesh : uses Boussinesq --> BoussinesqState : creates/stores Boussinesq --> BoussinesqSolverContract : resolves BoussinesqSolverContract --> BoussinesqRuntimeBackend BoussinesqRuntimeBackend --> BoussinesqMethodSpec BoussinesqRuntimeBackend --> BoussinesqEngineSpec BoussinesqRuntimeBackend --> TransientStepInputs : consumes BoussinesqRuntimeBackend --> SteadySolveInputs : consumes BoussinesqRuntimeBackend --> RuntimeSolveResult : returns RuntimeSolveResult --> BoussinesqAssembly note bottom of BoussinesqState Canonical accepted state for diagnostics and exports. Legacy imposed_head_* fields still exist here for compatibility. end note note right of BoussinesqSolverContract Important clarification layer: problem definition is separated from method and engine resolution. end note @enduml

Diagram 3: Process To Backend Sequence#

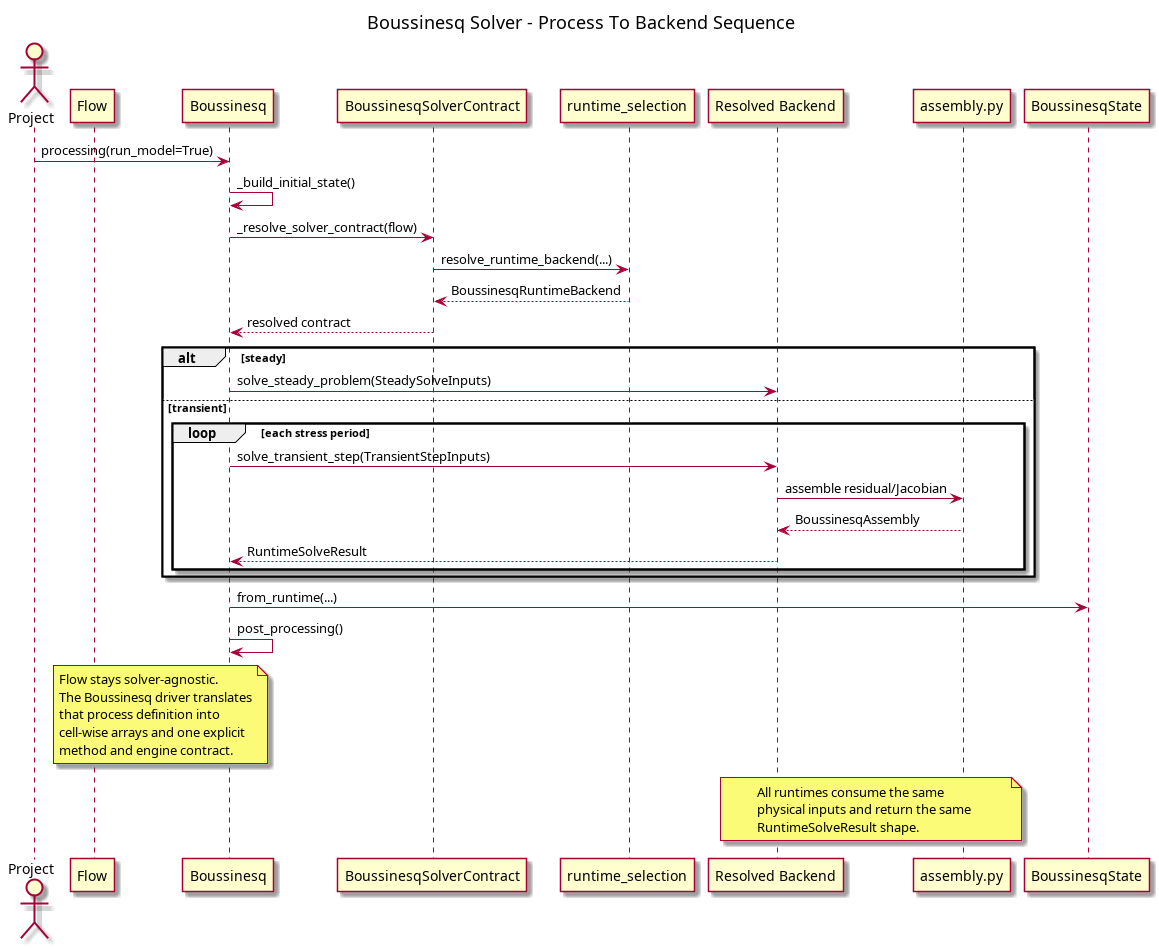

@startuml title Boussinesq Solver - Process To Backend Sequence actor Project participant Flow participant "Boussinesq" as Solver participant "BoussinesqSolverContract" as Contract participant "runtime_selection" as Selection participant "Resolved Backend" as Backend participant "assembly.py" as Assembly participant "BoussinesqState" as State Project -> Solver : processing(run_model=True) Solver -> Solver : _build_initial_state() Solver -> Contract : _resolve_solver_contract(flow) Contract -> Selection : resolve_runtime_backend(...) Selection --> Contract : BoussinesqRuntimeBackend Contract --> Solver : resolved contract alt steady Solver -> Backend : solve_steady_problem(SteadySolveInputs) else transient loop each stress period Solver -> Backend : solve_transient_step(TransientStepInputs) Backend -> Assembly : assemble residual/Jacobian Assembly --> Backend : BoussinesqAssembly Backend --> Solver : RuntimeSolveResult end end Solver -> State : from_runtime(...) Solver -> Solver : post_processing() note over Flow, Solver Flow stays solver-agnostic. The Boussinesq driver translates that process definition into cell-wise arrays and one explicit method and engine contract. end note note over Backend, Assembly All runtimes consume the same physical inputs and return the same RuntimeSolveResult shape. end note @enduml

Diagram 4: Transient Step Activity#

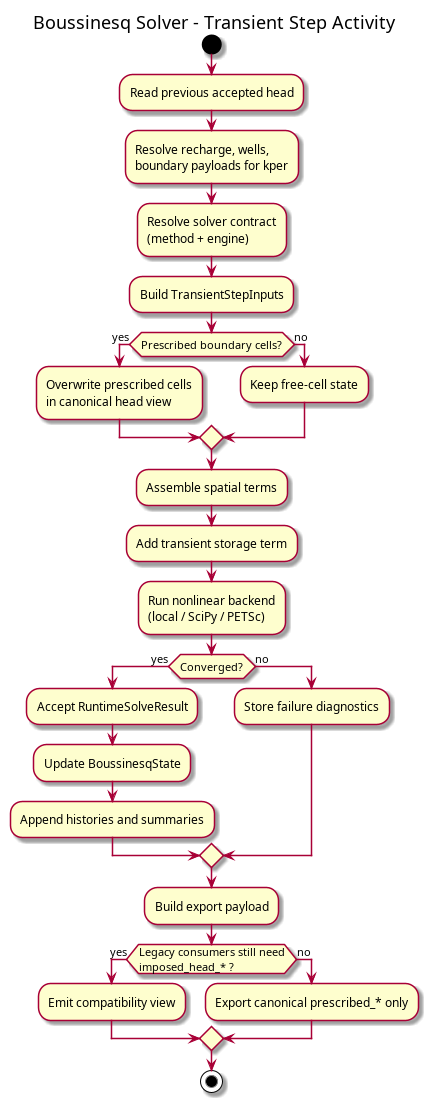

@startuml title Boussinesq Solver - Transient Step Activity start :Read previous accepted head; :Resolve recharge, wells,\nboundary payloads for kper; :Resolve solver contract\n(method + engine); :Build TransientStepInputs; if (Prescribed boundary cells?) then (yes) :Overwrite prescribed cells\nin canonical head view; else (no) :Keep free-cell state; endif :Assemble spatial terms; :Add transient storage term; :Run nonlinear backend\n(local / SciPy / PETSc); if (Converged?) then (yes) :Accept RuntimeSolveResult; :Update BoussinesqState; :Append histories and summaries; else (no) :Store failure diagnostics; endif :Build export payload; if (Legacy consumers still need\nimposed_head_* ?) then (yes) :Emit compatibility view; else (no) :Export canonical prescribed_* only; endif stop @enduml

Notes#

  • The canonical runtime path is now based on prescribed_head_m_by_cell.

  • The main orchestration split is now:

    • boussinesq.py for top-level coordination;

    • drivers/steady.py and drivers/transient.py for solve execution;

    • solver_contract.py for process-to-runtime normalization;

    • runtime_summary.py for runtime-summary shaping;

    • forcing_resolution.py plus forcing/ for process-to-array mapping;

    • drivers/forcing.py for shared boundary and drainage preparation;

    • jacobian/semianalytic.py plus its internal triplet modules for the semianalytic linearization layer.

  • The diagrams deliberately separate:

    • hydrological problem definition;

    • method and formulation selection;

    • execution-engine selection;

    • nonlinear runtime execution;

    • export and diagnostics.
