Catchment-Mesh Architecture#

This page documents the dedicated catchment-mesh workflow built around hydromodpy.spatial.mesh: package layout, runtime entry points, batch loop, simulation embedding, output layout, and the conformal Gmsh meshing core.

Code map#

  • hydromodpy/spatial/mesh/runtime.py: public mono-catchment entry point. Called by Project.build_mesh().

  • hydromodpy/spatial/mesh/hydro_mesh.py: concrete HydroMesh runtime object behind the public facade.

  • hydromodpy/spatial/mesh/batch.py: batch orchestration and manifest handling.

  • hydromodpy/spatial/mesh/batch_io.py and batch_reporting.py: IO and reporting helpers used by batch.py.

  • hydromodpy/spatial/mesh/config.py: Pydantic configuration schema ([mesh_catchment] block).

  • hydromodpy/spatial/mesh/gmsh_grid/zone_meshing/: conformal meshing core and export helpers.

  • hydromodpy/spatial/geographic and related domain helpers: geographic context preparation before meshing.

Recommended reading path:

  1. hydromodpy/spatial/mesh/runtime.py

  2. hydromodpy/spatial/mesh/hydro_mesh.py

  3. hydromodpy/spatial/mesh/gmsh_grid/runtime_support.py

  4. hydromodpy/spatial/mesh/gmsh_grid/zone_meshing/conformal.py

  5. hydromodpy/spatial/mesh/batch.py and config.py

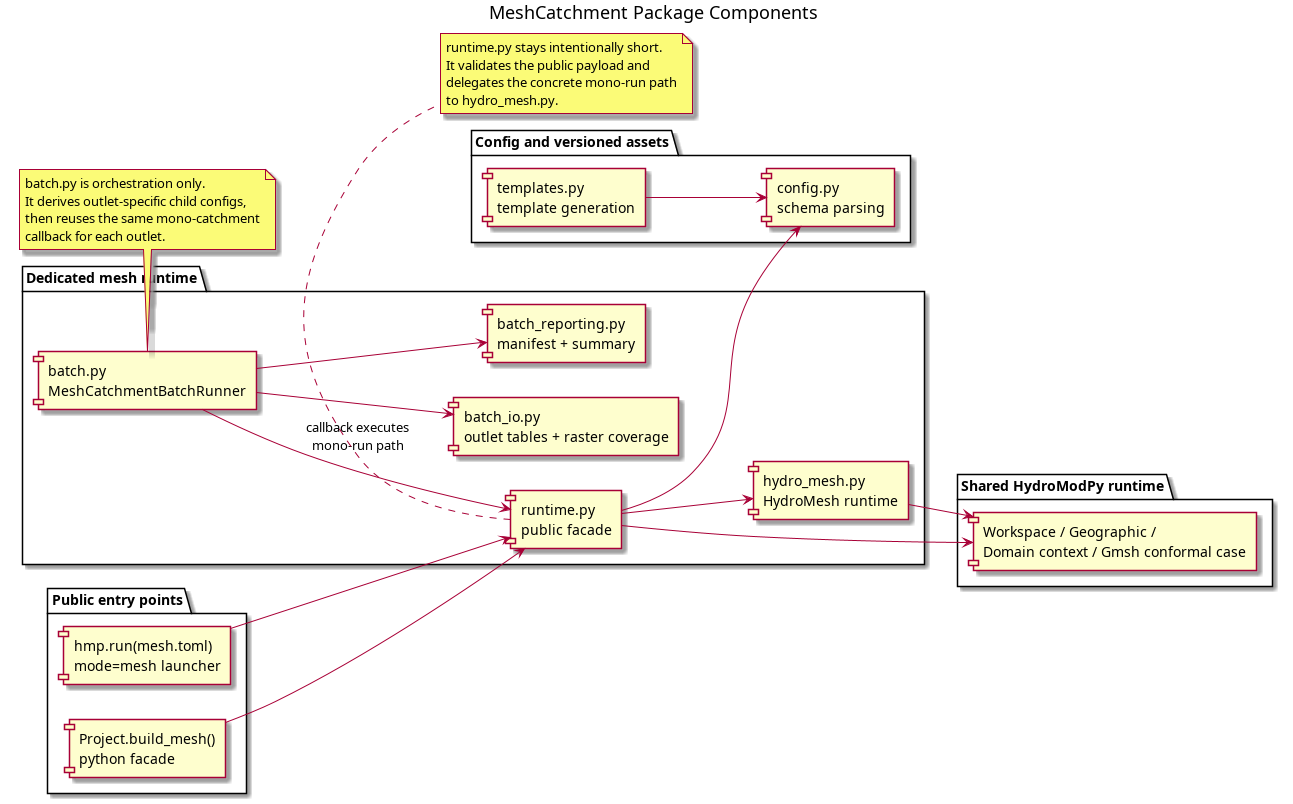

Package components#

The internal package layout: public runtime entry points, the runtime facade and the concrete mono-run execution path, batch-specific IO and reporting helpers, and the configuration objects describing a meshing case.

@startuml title MeshCatchment Package Components left to right direction package "Public entry points" { component "hmp.run(mesh.toml)\nmode=mesh launcher" as MainCli component "Project.build_mesh()\npython facade" as Facade } package "Config and versioned assets" { component "config.py\nschema parsing" as Config component "templates.py\ntemplate generation" as Templates } package "Dedicated mesh runtime" { component "runtime.py\npublic facade" as Runtime component "hydro_mesh.py\nHydroMesh runtime" as HydroMesh component "batch.py\nMeshCatchmentBatchRunner" as Batch component "batch_io.py\noutlet tables + raster coverage" as BatchIO component "batch_reporting.py\nmanifest + summary" as BatchReporting } package "Shared HydroModPy runtime" { component "Workspace / Geographic /\nDomain context / Gmsh conformal case" as SharedRuntime } MainCli --> Runtime Facade --> Runtime Runtime --> Config Templates --> Config Runtime --> HydroMesh Batch --> BatchIO Batch --> BatchReporting Batch --> Runtime : callback executes\nmono-run path HydroMesh --> SharedRuntime Runtime --> SharedRuntime note bottom of Runtime runtime.py stays intentionally short. It validates the public payload and delegates the concrete mono-run path to hydro_mesh.py. end note note bottom of Batch batch.py is orchestration only. It derives outlet-specific child configs, then reuses the same mono-catchment callback for each outlet. end note @enduml

Notes:

  • runtime.py is intentionally thin. It validates the public payload and delegates concrete execution to hydro_mesh.py.

  • batch.py does not implement a second meshing engine. It derives one outlet-specific child runtime, then reuses the same mono-catchment callback.

Conformal meshing pipeline#

The chain that turns one domain plus optional geology zones and river constraints into one planar mesh, one QA sidecar, one optional figure, and one optional exchange bundle.

The chosen UML set is intentionally narrow: an activity diagram for the branching driven by constraints_mode and constraint availability, a sequence diagram for the runtime handoff between public mesh facade, shared runtime helpers, geographic context, conformal case, and exports, and a component diagram for the stable boundaries between orchestration, domain preparation, constraint sources, meshing core, and exporters.

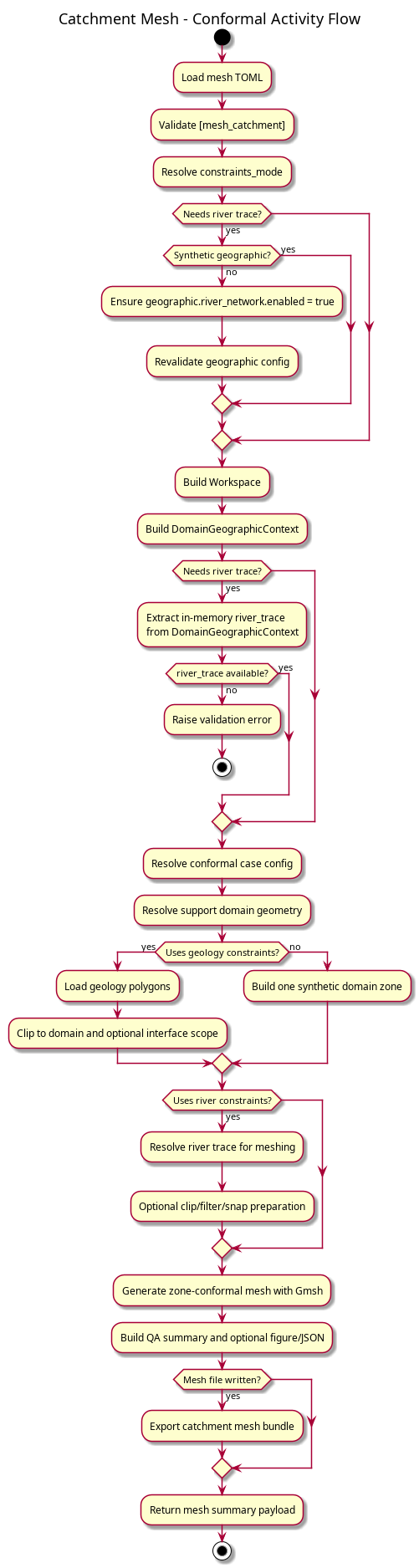

Activity:

@startuml title Catchment Mesh - Conformal Activity Flow start :Load mesh TOML; :Validate [mesh_catchment]; :Resolve constraints_mode; if (Needs river trace?) then (yes) if (Synthetic geographic?) then (yes) else (no) :Ensure geographic.river_network.enabled = true; :Revalidate geographic config; endif endif :Build Workspace; :Build DomainGeographicContext; if (Needs river trace?) then (yes) :Extract in-memory river_trace\nfrom DomainGeographicContext; if (river_trace available?) then (yes) else (no) :Raise validation error; stop endif endif :Resolve conformal case config; :Resolve support domain geometry; if (Uses geology constraints?) then (yes) :Load geology polygons; :Clip to domain and optional interface scope; else (no) :Build one synthetic domain zone; endif if (Uses river constraints?) then (yes) :Resolve river trace for meshing; :Optional clip/filter/snap preparation; endif :Generate zone-conformal mesh with Gmsh; :Build QA summary and optional figure/JSON; if (Mesh file written?) then (yes) :Export catchment mesh bundle; endif :Return mesh summary payload; stop @enduml

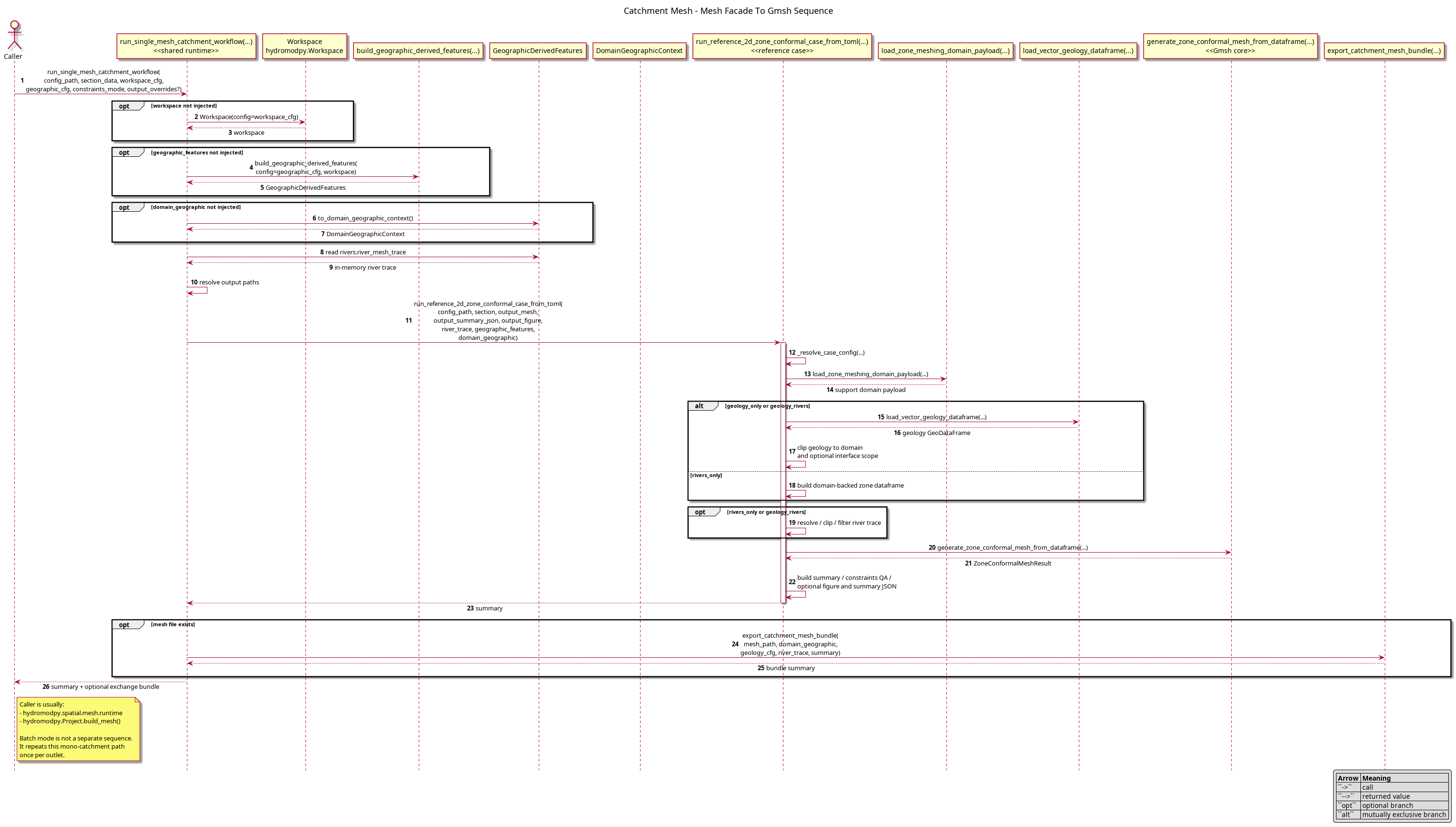

Sequence (mesh facade to Gmsh):

@startuml title Catchment Mesh - Mesh Facade To Gmsh Sequence autonumber hide footbox skinparam sequenceMessageAlign center skinparam responseMessageBelowArrow true legend right |= Arrow |= Meaning | | ``->`` | call | | ``-->`` | returned value | | ``opt`` | optional branch | | ``alt`` | mutually exclusive branch | endlegend actor Caller participant "run_single_mesh_catchment_workflow(...)\n<<shared runtime>>" as Runtime participant "Workspace\nhydromodpy.Workspace" as Workspace participant "build_geographic_derived_features(...)" as GeoPipeline participant "GeographicDerivedFeatures" as GeoFeatures participant "DomainGeographicContext" as DomainCtx participant "run_reference_2d_zone_conformal_case_from_toml(...)\n<<reference case>>" as Case participant "load_zone_meshing_domain_payload(...)" as DomainLoader participant "load_vector_geology_dataframe(...)" as GeologyIO participant "generate_zone_conformal_mesh_from_dataframe(...)\n<<Gmsh core>>" as GmshCore participant "export_catchment_mesh_bundle(...)" as BundleExporter Caller -> Runtime: run_single_mesh_catchment_workflow(\nconfig_path, section_data, workspace_cfg,\ngeographic_cfg, constraints_mode, output_overrides?) opt workspace not injected Runtime -> Workspace: Workspace(config=workspace_cfg) Workspace --> Runtime: workspace end opt geographic_features not injected Runtime -> GeoPipeline: build_geographic_derived_features(\nconfig=geographic_cfg, workspace) GeoPipeline --> Runtime: GeographicDerivedFeatures end opt domain_geographic not injected Runtime -> GeoFeatures: to_domain_geographic_context() GeoFeatures --> Runtime: DomainGeographicContext end Runtime -> GeoFeatures: read rivers.river_mesh_trace GeoFeatures --> Runtime: in-memory river trace Runtime -> Runtime: resolve output paths Runtime -> Case: run_reference_2d_zone_conformal_case_from_toml(\nconfig_path, section, output_mesh,\noutput_summary_json, output_figure,\nriver_trace, geographic_features,\ndomain_geographic) activate Case Case -> Case: _resolve_case_config(...) Case -> DomainLoader: load_zone_meshing_domain_payload(...) DomainLoader --> Case: support domain payload alt geology_only or geology_rivers Case -> GeologyIO: load_vector_geology_dataframe(...) GeologyIO --> Case: geology GeoDataFrame Case -> Case: clip geology to domain\nand optional interface scope else rivers_only Case -> Case: build domain-backed zone dataframe end opt rivers_only or geology_rivers Case -> Case: resolve / clip / filter river trace end Case -> GmshCore: generate_zone_conformal_mesh_from_dataframe(...) GmshCore --> Case: ZoneConformalMeshResult Case -> Case: build summary / constraints QA /\noptional figure and summary JSON Case --> Runtime: summary deactivate Case opt mesh file exists Runtime -> BundleExporter: export_catchment_mesh_bundle(\nmesh_path, domain_geographic,\ngeology_cfg, river_trace, summary) BundleExporter --> Runtime: bundle summary end Runtime --> Caller: summary + optional exchange bundle note right of Caller Caller is usually: - hydromodpy.spatial.mesh.runtime - hydromodpy.Project.build_mesh() Batch mode is not a separate sequence. It repeats this mono-catchment path once per outlet. end note @enduml

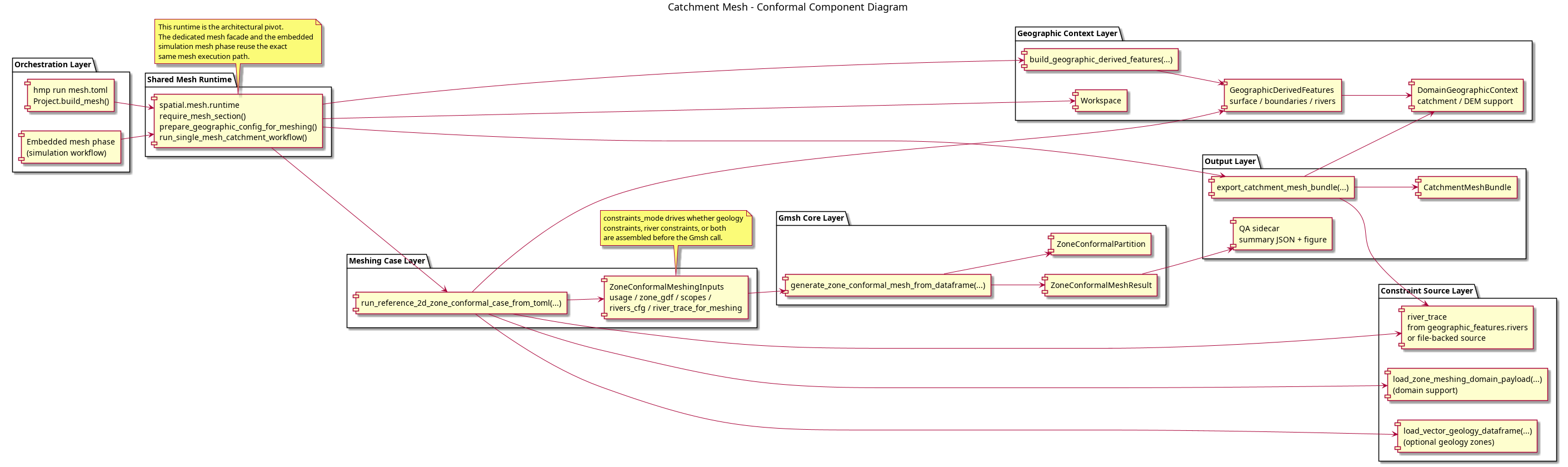

Components:

@startuml title Catchment Mesh - Conformal Component Diagram left to right direction package "Orchestration Layer" { component "hmp run mesh.toml\nProject.build_mesh()" as MeshFacade component "Embedded mesh phase\n(simulation workflow)" as SimulationPhase } package "Shared Mesh Runtime" { component "spatial.mesh.runtime\nrequire_mesh_section()\nprepare_geographic_config_for_meshing()\nrun_single_mesh_catchment_workflow()" as Runtime } package "Geographic Context Layer" { component "Workspace" as Workspace component "build_geographic_derived_features(...)" as GeographicPipeline component "GeographicDerivedFeatures\nsurface / boundaries / rivers" as GeographicFeatures component "DomainGeographicContext\ncatchment / DEM support" as DomainContext } package "Constraint Source Layer" { component "load_zone_meshing_domain_payload(...)\n(domain support)" as DomainSupport component "load_vector_geology_dataframe(...)\n(optional geology zones)" as GeologySource component "river_trace\nfrom geographic_features.rivers\nor file-backed source" as RiverTrace } package "Meshing Case Layer" { component "run_reference_2d_zone_conformal_case_from_toml(...)" as Case component "ZoneConformalMeshingInputs\nusage / zone_gdf / scopes /\nrivers_cfg / river_trace_for_meshing" as Inputs } package "Gmsh Core Layer" { component "generate_zone_conformal_mesh_from_dataframe(...)" as GmshCore component "ZoneConformalPartition" as Partition component "ZoneConformalMeshResult" as MeshResult } package "Output Layer" { component "QA sidecar\nsummary JSON + figure" as QaOutputs component "export_catchment_mesh_bundle(...)" as BundleExporter component "CatchmentMeshBundle" as Bundle } MeshFacade --> Runtime SimulationPhase --> Runtime Runtime --> Workspace Runtime --> GeographicPipeline GeographicPipeline --> GeographicFeatures GeographicFeatures --> DomainContext Runtime --> Case Runtime --> BundleExporter Case --> DomainSupport Case --> GeologySource Case --> GeographicFeatures Case --> RiverTrace Case --> Inputs Inputs --> GmshCore GmshCore --> Partition GmshCore --> MeshResult MeshResult --> QaOutputs BundleExporter --> DomainContext BundleExporter --> RiverTrace BundleExporter --> Bundle note bottom of Runtime This runtime is the architectural pivot. The dedicated mesh facade and the embedded simulation mesh phase reuse the exact same mesh execution path. end note note bottom of Inputs constraints_mode drives whether geology constraints, river constraints, or both are assembled before the Gmsh call. end note @enduml

Notes:

  • mesh_catchment_batch is intentionally not modeled as a separate meshing engine.

  • The diagrams stop at the planar catchment mesh plus exchange bundle. 3D extrusion and field-parameter discretization are documented in Structured Grid Architecture and Mesh Architecture Pivot.

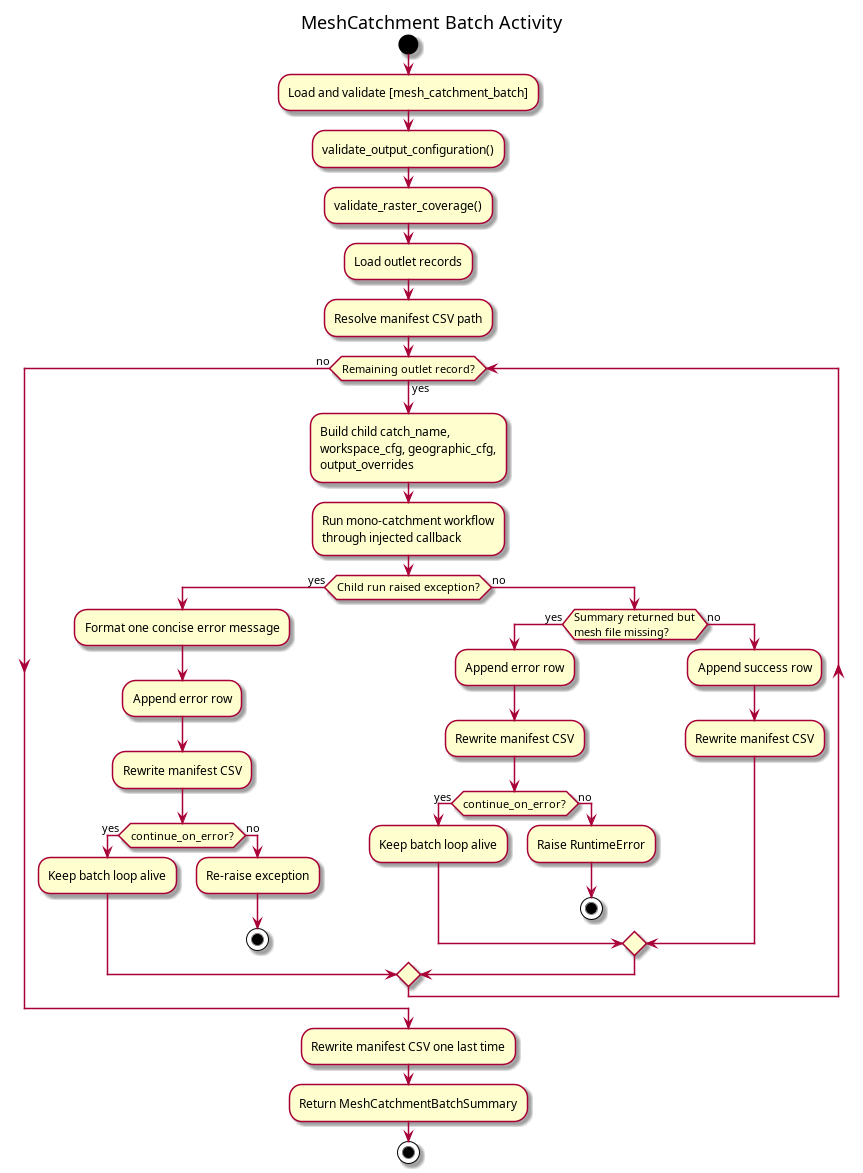

Batch loop#

The [mesh_catchment_batch] loop: pre-loop validation of outputs and raster coverage, derivation of child workspaces and outlet coordinates, incremental manifest updates, and the continue_on_error branch that decides whether the loop stops or keeps running.

@startuml title MeshCatchment Batch Activity start :Load and validate [mesh_catchment_batch]; :validate_output_configuration(); :validate_raster_coverage(); :Load outlet records; :Resolve manifest CSV path; while (Remaining outlet record?) is (yes) :Build child catch_name,\nworkspace_cfg, geographic_cfg,\noutput_overrides; :Run mono-catchment workflow\nthrough injected callback; if (Child run raised exception?) then (yes) :Format one concise error message; :Append error row; :Rewrite manifest CSV; if (continue_on_error?) then (yes) :Keep batch loop alive; else (no) :Re-raise exception; stop endif else (no) if (Summary returned but\nmesh file missing?) then (yes) :Append error row; :Rewrite manifest CSV; if (continue_on_error?) then (yes) :Keep batch loop alive; else (no) :Raise RuntimeError; stop endif else (no) :Append success row; :Rewrite manifest CSV; endif endif endwhile (no) :Rewrite manifest CSV one last time; :Return MeshCatchmentBatchSummary; stop @enduml

Notes:

  • The batch loop reuses the same mono-catchment callback as the public runtime entry point.

  • The manifest CSV is rewritten after each outlet so progress remains visible even when the batch stops early.

  • A summary that returns without a written mesh file is treated as a failure.

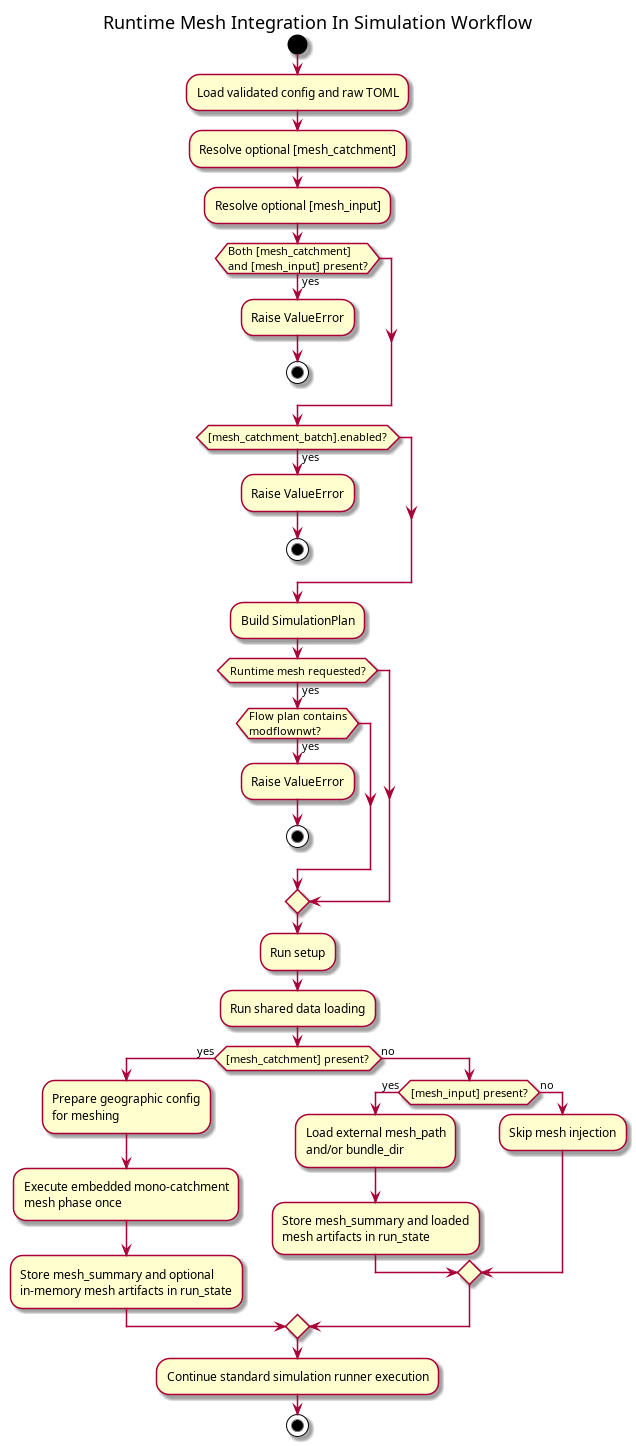

In-process simulation embedding#

How the simulation pipeline accepts, rejects, or reuses runtime meshes: the mutual exclusion between [mesh_catchment] and [mesh_input], the early rejection of [mesh_catchment_batch] inside the simulation workflow, the solver-compatibility guard that rejects runtime Gmsh meshes with modflownwt, and the handoff of loaded or generated mesh artifacts into the Project runtime state before solver execution.

@startuml title Runtime Mesh Integration In Simulation Workflow start :Load validated config and raw TOML; :Resolve optional [mesh_catchment]; :Resolve optional [mesh_input]; if (Both [mesh_catchment]\nand [mesh_input] present?) then (yes) :Raise ValueError; stop endif if ([mesh_catchment_batch].enabled?) then (yes) :Raise ValueError; stop endif :Build SimulationPlan; if (Runtime mesh requested?) then (yes) if (Flow plan contains\nmodflownwt?) then (yes) :Raise ValueError; stop endif endif :Run setup; :Run shared data loading; if ([mesh_catchment] present?) then (yes) :Prepare geographic config\nfor meshing; :Execute embedded mono-catchment\nmesh phase once; :Store mesh_summary and optional\nin-memory mesh artifacts in run_state; else (no) if ([mesh_input] present?) then (yes) :Load external mesh_path\nand/or bundle_dir; :Store mesh_summary and loaded\nmesh artifacts in run_state; else (no) :Skip mesh injection; endif endif :Continue standard simulation runner execution; stop @enduml

Notes:

  • The simulation workflow can embed one mono-catchment mesh phase or reuse one precomputed mesh, but not both in the same run.

  • Runtime Gmsh meshes are currently intended for boussinesq and modflow6. modflownwt stays on the structured sgrid path.

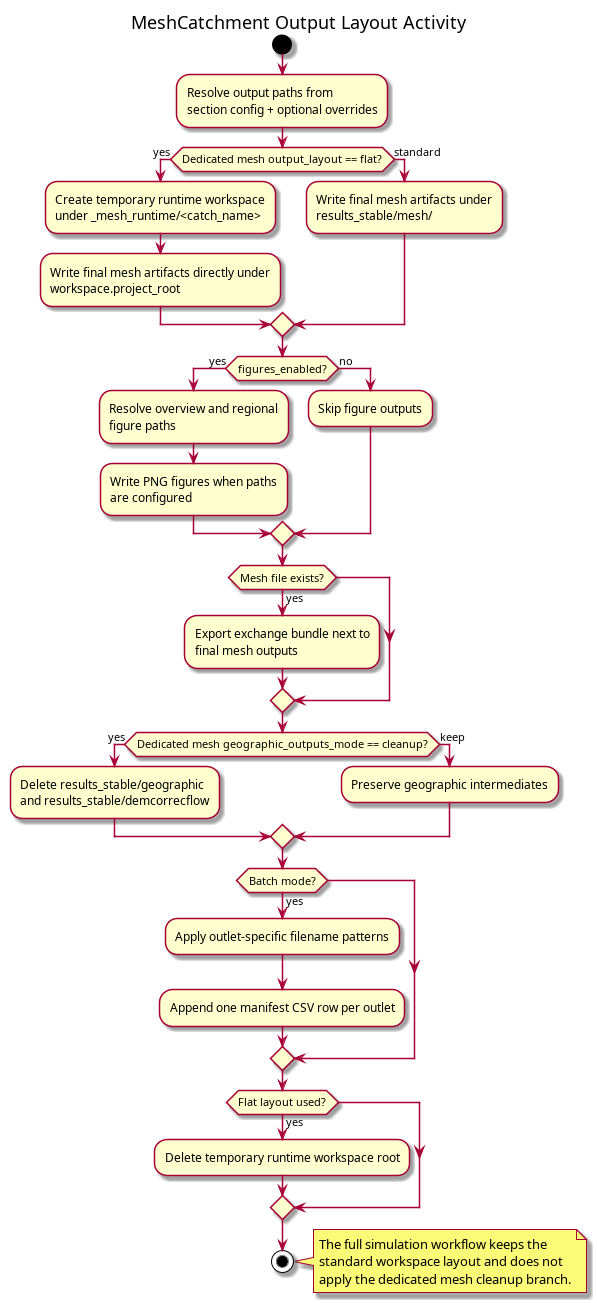

Output layout#

How the dedicated mesh workflow resolves final artifacts and cleanup behavior: the standard versus flat output layout split, optional figure generation, exchange-bundle export, cleanup of intermediate geographic artifacts, and extra naming and manifest rules in batch mode.

@startuml title MeshCatchment Output Layout Activity start :Resolve output paths from\nsection config + optional overrides; if (Dedicated mesh output_layout == flat?) then (yes) :Create temporary runtime workspace\nunder _mesh_runtime/<catch_name>; :Write final mesh artifacts directly under\nworkspace.project_root; else (standard) :Write final mesh artifacts under\nresults_stable/mesh/; endif if (figures_enabled?) then (yes) :Resolve overview and regional\nfigure paths; :Write PNG figures when paths\nare configured; else (no) :Skip figure outputs; endif if (Mesh file exists?) then (yes) :Export exchange bundle next to\nfinal mesh outputs; endif if (Dedicated mesh geographic_outputs_mode == cleanup?) then (yes) :Delete results_stable/geographic\nand results_stable/demcorrecflow; else (keep) :Preserve geographic intermediates; endif if (Batch mode?) then (yes) :Apply outlet-specific filename patterns; :Append one manifest CSV row per outlet; endif if (Flat layout used?) then (yes) :Delete temporary runtime workspace root; endif stop note right The full simulation workflow keeps the standard workspace layout and does not apply the dedicated mesh cleanup branch. end note @enduml

Notes:

  • flat layout is a convenience for the dedicated mesh workflow. It writes the final mesh artifacts directly under workspace.project_root while the intermediate runtime workspace lives elsewhere and can be deleted afterwards.

  • The full simulation workflow keeps the standard workspace structure because it still needs its runtime folders.

  • Batch mode adds per-outlet filename patterns and one manifest CSV, but it still reuses the same mono-catchment output-resolution rules.
