Field Architecture#

This section documents the hydromodpy.spatial.field layer.

Open it when you want:

  • the reusable field abstractions behind FieldSpatial and FieldParam;

  • the concrete mesh implementations reused by geology and solver adapters;

  • the bridge from field-side zoning to solver-side discretization workflows.

Code map#

  • hydromodpy/spatial/field/core/field_spatial.py: reusable field-side zone/value carrier.

  • hydromodpy/spatial/field/core/field_param.py and field_param_config.py: heterogeneous parameter contract consumed downstream by solvers.

  • hydromodpy/spatial/field/meshes/: concrete structured and triangular mesh implementations.

  • hydromodpy/spatial/field/geology/: geology-backed specialisations built on the same field contract.

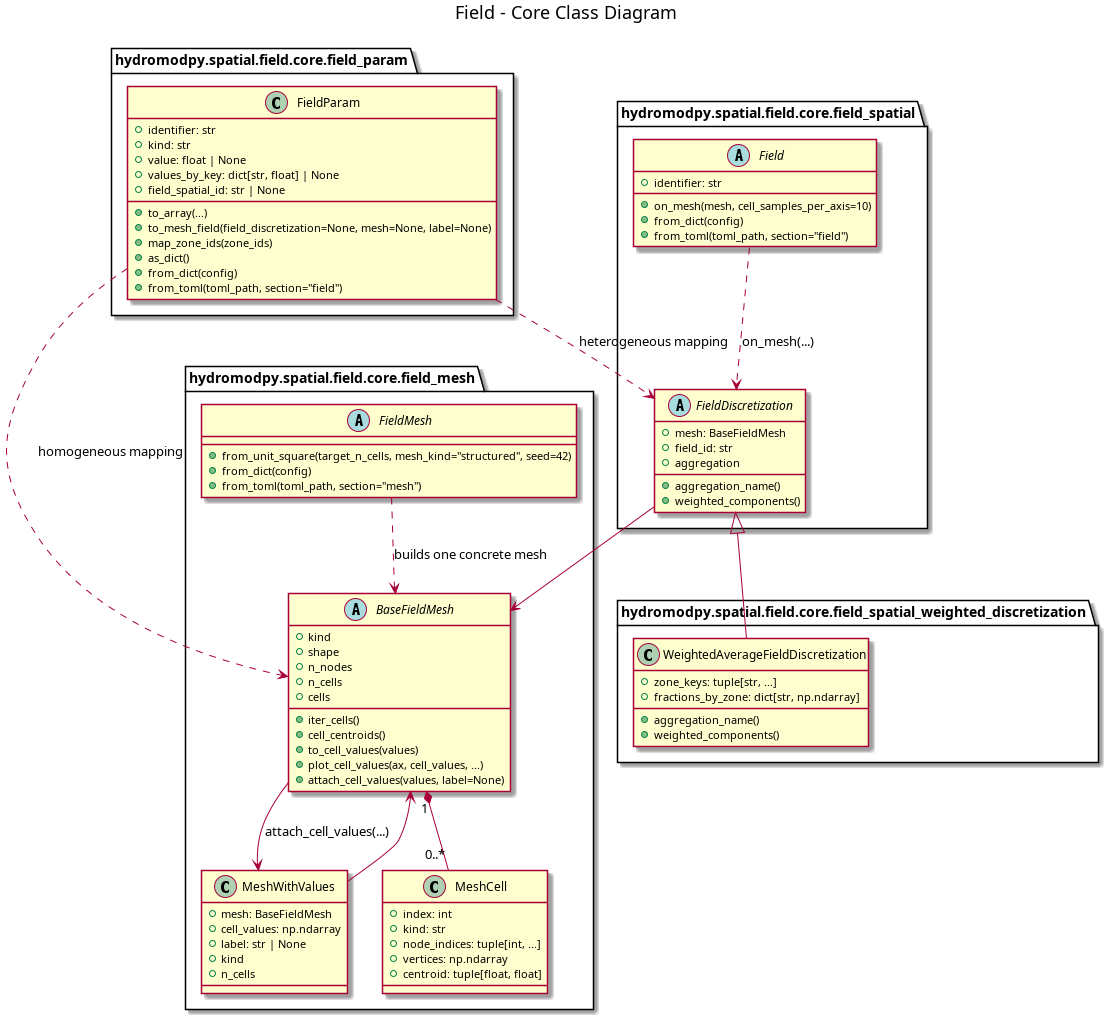

Core class diagram#

This view is intentionally limited to the reusable field.core abstractions.

@startuml title Field - Core Class Diagram package "hydromodpy.spatial.field.core.field_mesh" { class MeshCell { +index: int +kind: str +node_indices: tuple[int, ...] +vertices: np.ndarray +centroid: tuple[float, float] } class MeshWithValues { +mesh: BaseFieldMesh +cell_values: np.ndarray +label: str | None +kind +n_cells } abstract class BaseFieldMesh { +kind +shape +n_nodes +n_cells +cells +iter_cells() +cell_centroids() +to_cell_values(values) +plot_cell_values(ax, cell_values, ...) +attach_cell_values(values, label=None) } abstract class FieldMesh { +from_unit_square(target_n_cells, mesh_kind="structured", seed=42) +from_dict(config) +from_toml(toml_path, section="mesh") } } package "hydromodpy.spatial.field.core.field_spatial" { abstract class Field { +identifier: str +on_mesh(mesh, cell_samples_per_axis=10) +from_dict(config) +from_toml(toml_path, section="field") } abstract class FieldDiscretization { +mesh: BaseFieldMesh +field_id: str +aggregation_name() +aggregation +weighted_components() } } package "hydromodpy.spatial.field.core.field_spatial_weighted_discretization" { class WeightedAverageFieldDiscretization { +zone_keys: tuple[str, ...] +fractions_by_zone: dict[str, np.ndarray] +aggregation_name() +weighted_components() } } package "hydromodpy.spatial.field.core.field_param" { class FieldParam { +identifier: str +kind: str +value: float | None +values_by_key: dict[str, float] | None +field_spatial_id: str | None +to_array(...) +to_mesh_field(field_discretization=None, mesh=None, label=None) +map_zone_ids(zone_ids) +as_dict() +from_dict(config) +from_toml(toml_path, section="field") } } BaseFieldMesh "1" *-- "0..*" MeshCell MeshWithValues --> BaseFieldMesh BaseFieldMesh --> MeshWithValues : attach_cell_values(...) FieldMesh ..> BaseFieldMesh : builds one concrete mesh FieldDiscretization --> BaseFieldMesh FieldDiscretization <|-- WeightedAverageFieldDiscretization Field ..> FieldDiscretization : on_mesh(...) FieldParam ..> BaseFieldMesh : homogeneous mapping FieldParam ..> FieldDiscretization : heterogeneous mapping @enduml

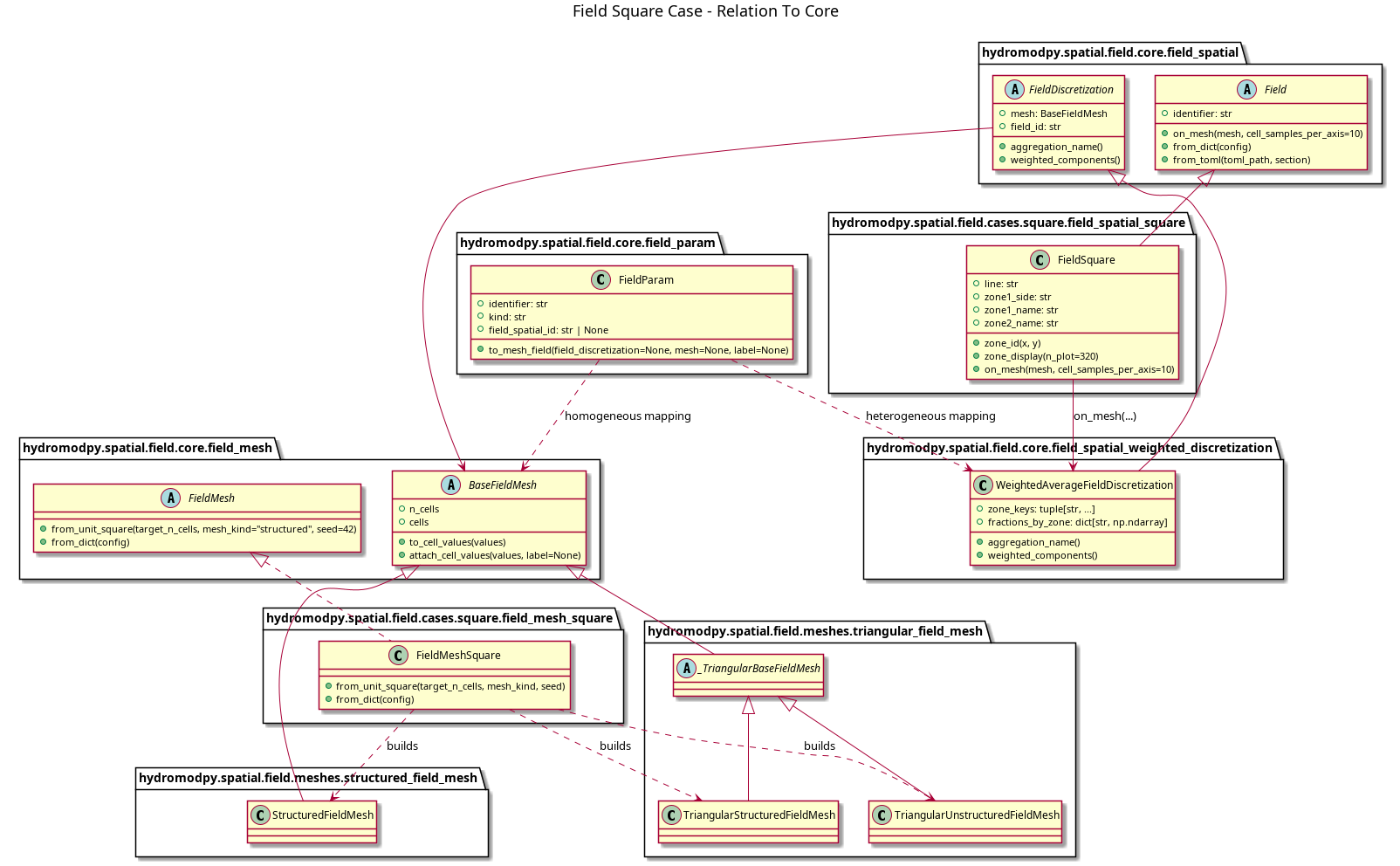

Square case relation diagram#

This view shows how the square example specialises the core abstractions and which concrete mesh implementations it reuses.

@startuml title Field Square Case - Relation To Core package "hydromodpy.spatial.field.core.field_mesh" { abstract class BaseFieldMesh { +n_cells +cells +to_cell_values(values) +attach_cell_values(values, label=None) } abstract class FieldMesh { +from_unit_square(target_n_cells, mesh_kind="structured", seed=42) +from_dict(config) } } package "hydromodpy.spatial.field.core.field_spatial" { abstract class Field { +identifier: str +on_mesh(mesh, cell_samples_per_axis=10) +from_dict(config) +from_toml(toml_path, section) } abstract class FieldDiscretization { +mesh: BaseFieldMesh +field_id: str +aggregation_name() +weighted_components() } } package "hydromodpy.spatial.field.core.field_spatial_weighted_discretization" { class WeightedAverageFieldDiscretization { +zone_keys: tuple[str, ...] +fractions_by_zone: dict[str, np.ndarray] +aggregation_name() +weighted_components() } } package "hydromodpy.spatial.field.core.field_param" { class FieldParam { +identifier: str +kind: str +field_spatial_id: str | None +to_mesh_field(field_discretization=None, mesh=None, label=None) } } package "hydromodpy.spatial.field.cases.square.field_spatial_square" { class FieldSquare { +line: str +zone1_side: str +zone1_name: str +zone2_name: str +zone_id(x, y) +zone_display(n_plot=320) +on_mesh(mesh, cell_samples_per_axis=10) } } package "hydromodpy.spatial.field.cases.square.field_mesh_square" { class FieldMeshSquare { +from_unit_square(target_n_cells, mesh_kind, seed) +from_dict(config) } } package "hydromodpy.spatial.field.meshes.structured_field_mesh" { class StructuredFieldMesh } package "hydromodpy.spatial.field.meshes.triangular_field_mesh" { abstract class _TriangularBaseFieldMesh class TriangularStructuredFieldMesh class TriangularUnstructuredFieldMesh } Field <|-- FieldSquare FieldDiscretization <|-- WeightedAverageFieldDiscretization FieldDiscretization --> BaseFieldMesh FieldSquare --> WeightedAverageFieldDiscretization : on_mesh(...) FieldMesh <|.. FieldMeshSquare BaseFieldMesh <|-- StructuredFieldMesh BaseFieldMesh <|-- _TriangularBaseFieldMesh _TriangularBaseFieldMesh <|-- TriangularStructuredFieldMesh _TriangularBaseFieldMesh <|-- TriangularUnstructuredFieldMesh FieldMeshSquare ..> StructuredFieldMesh : builds FieldMeshSquare ..> TriangularStructuredFieldMesh : builds FieldMeshSquare ..> TriangularUnstructuredFieldMesh : builds FieldParam ..> BaseFieldMesh : homogeneous mapping FieldParam ..> WeightedAverageFieldDiscretization : heterogeneous mapping @enduml

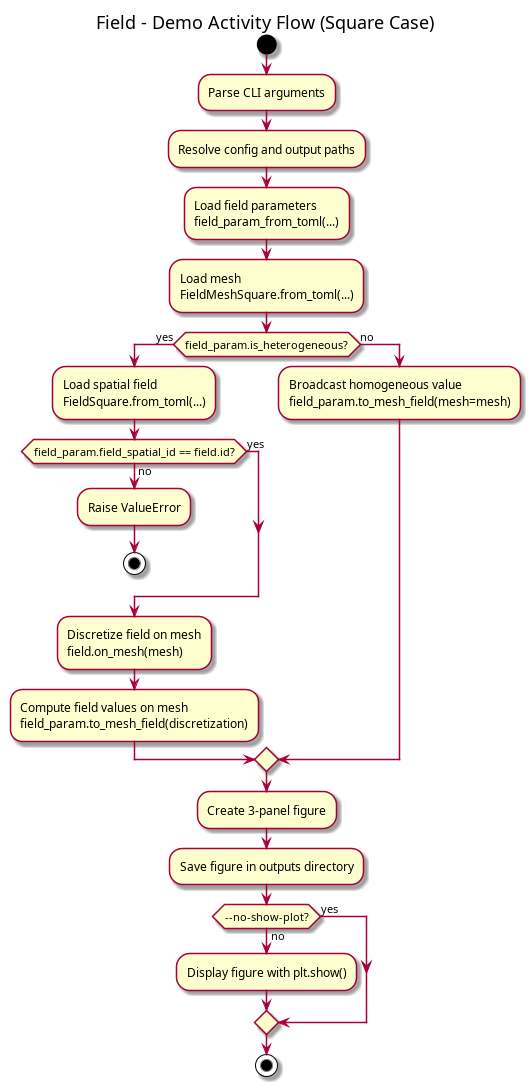

Activity diagram#

@startuml title Field - Demo Activity Flow (Square Case) start :Parse CLI arguments; :Resolve config and output paths; :Load field parameters\nfield_param_from_toml(...); :Load mesh\nFieldMeshSquare.from_toml(...); if (field_param.is_heterogeneous?) then (yes) :Load spatial field\nFieldSquare.from_toml(...); if (field_param.field_spatial_id == field.id?) then (yes) else (no) :Raise ValueError; stop endif :Discretize field on mesh\nfield.on_mesh(mesh); :Compute field values on mesh\nfield_param.to_mesh_field(discretization); else (no) :Broadcast homogeneous value\nfield_param.to_mesh_field(mesh=mesh); endif :Create 3-panel figure; :Save figure in outputs directory; if (--no-show-plot?) then (yes) else (no) :Display figure with plt.show(); endif stop @enduml

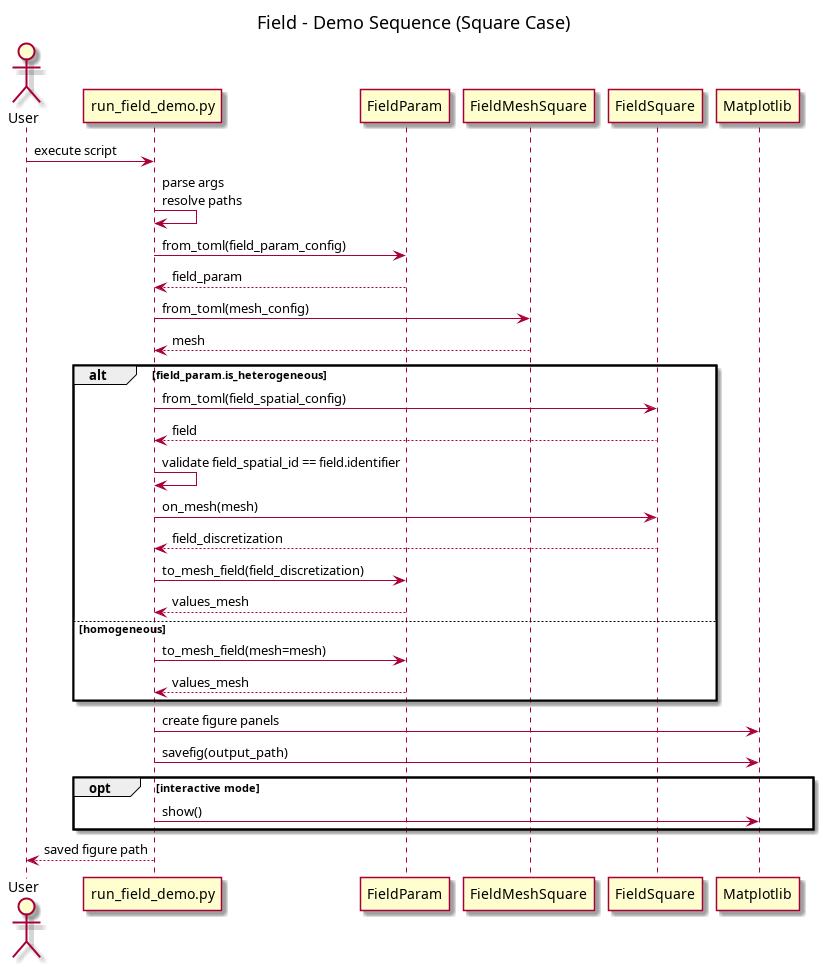

Sequence diagram#

@startuml title Field - Demo Sequence (Square Case) actor User participant "run_field_demo.py" as Runner participant "FieldParam" as Param participant "FieldMeshSquare" as MeshFactory participant "FieldSquare" as SpatialField participant "Matplotlib" as Plot User -> Runner: execute script Runner -> Runner: parse args\nresolve paths Runner -> Param: from_toml(field_param_config) Param --> Runner: field_param Runner -> MeshFactory: from_toml(mesh_config) MeshFactory --> Runner: mesh alt field_param.is_heterogeneous Runner -> SpatialField: from_toml(field_spatial_config) SpatialField --> Runner: field Runner -> Runner: validate field_spatial_id == field.identifier Runner -> SpatialField: on_mesh(mesh) SpatialField --> Runner: field_discretization Runner -> Param: to_mesh_field(field_discretization) Param --> Runner: values_mesh else homogeneous Runner -> Param: to_mesh_field(mesh=mesh) Param --> Runner: values_mesh end Runner -> Plot: create figure panels Runner -> Plot: savefig(output_path) opt interactive mode Runner -> Plot: show() end Runner --> User: saved figure path @enduml
