Structured Grid Architecture#

This page documents the FloPy StructuredGrid path used by the MODFLOW-family solvers: static object model, build sequence, and the bridge to Field / FieldParam for solver-ready arrays.

Code map#

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_config.py: validated grid config contract.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_from_config.py: public build entry point.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_generation.py: StructuredGridBuilder and geometric assembly.

  • hydromodpy/spatial/mesh/cartesian_grid/utils/raster_grid_reader.py: top-surface raster loading.

  • hydromodpy/spatial/mesh/cartesian_grid/utils/planar_discretizer.py: planar discretization helpers.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_mesh_adapter.py: geometry bridge from solver grid to field-side mesh logic.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_field_discretization.py: field discretization helpers.

  • hydromodpy/spatial/mesh/cartesian_grid/sgrid_fieldparam_discretization.py: heterogeneous parameter mapping to solver arrays.

  • hydromodpy/solver/modflow_common/solver_mesh.py: solver-side consumer of the resolved mesh contract.

  • hydromodpy/spatial/field/core/field_param.py: upstream field parameter contract.

Recommended reading path:

  1. sgrid_config.py and sgrid_from_config.py

  2. raster_grid_reader.py and planar_discretizer.py

  3. sgrid_generation.py

  4. sgrid_mesh_adapter.py

  5. sgrid_field_discretization.py and sgrid_fieldparam_discretization.py

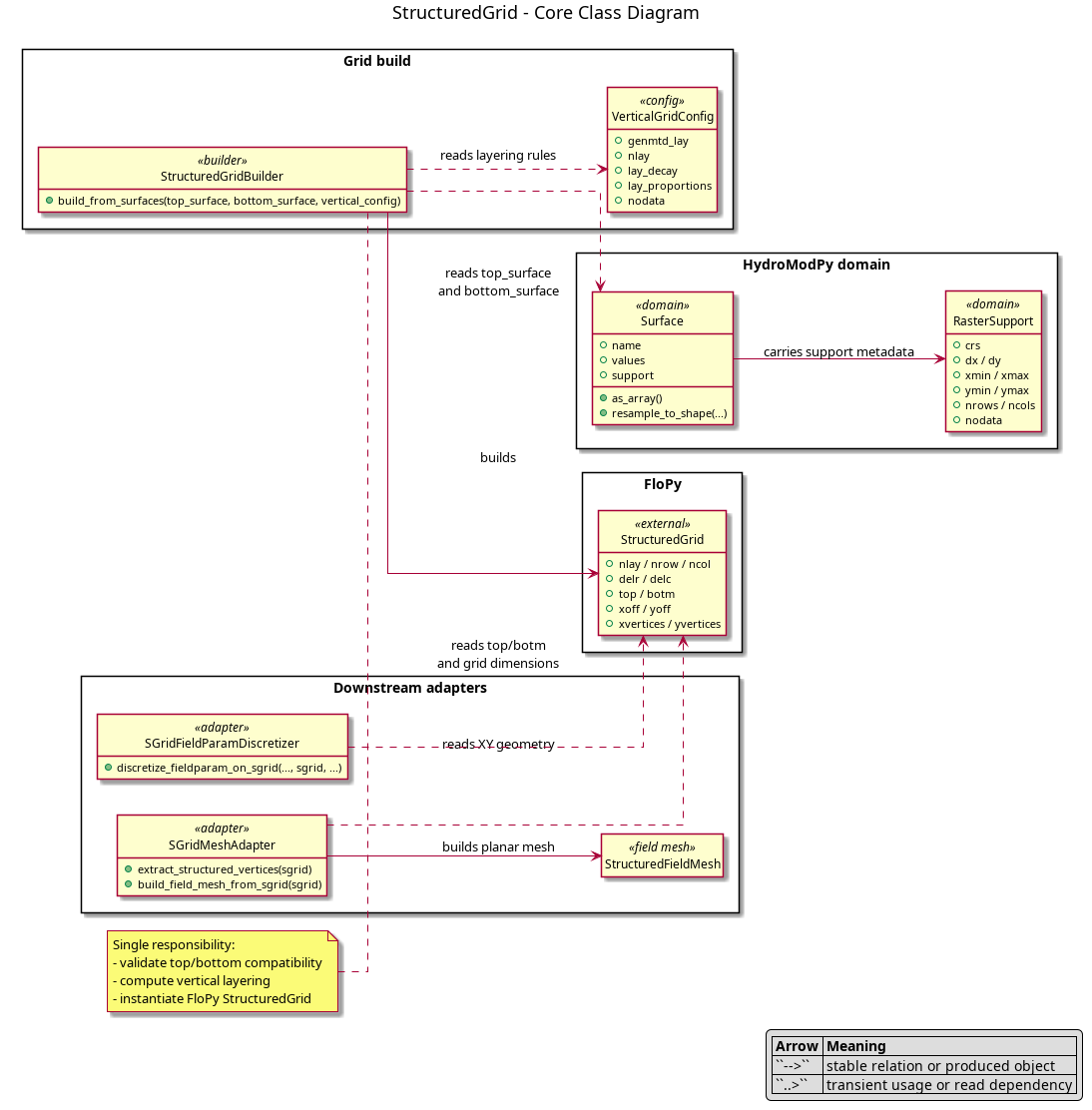

Static class diagram#

The static object model around FloPy StructuredGrid: HydroModPy domain objects that feed the builder, the narrow responsibility of StructuredGridBuilder, the boundary between HydroModPy classes and the external FloPy grid, and the downstream adapters that read StructuredGrid geometry.

Reading guide:

  • --> means a stable relation or a produced object.

  • ..> means a transient usage or read dependency.

@startuml title StructuredGrid - Core Class Diagram left to right direction hide empty members hide circle skinparam linetype ortho skinparam packageStyle rectangle legend right |= Arrow |= Meaning | | ``-->`` | stable relation or produced object | | ``..>`` | transient usage or read dependency | endlegend package "HydroModPy domain" { class RasterSupport <<domain>> { +crs +dx / dy +xmin / xmax +ymin / ymax +nrows / ncols +nodata } class Surface <<domain>> { +name +values +support +as_array() +resample_to_shape(...) } } package "Grid build" { class VerticalGridConfig <<config>> { +genmtd_lay +nlay +lay_decay +lay_proportions +nodata } class StructuredGridBuilder <<builder>> { +build_from_surfaces(top_surface, bottom_surface, vertical_config) } } package "FloPy" { class StructuredGrid <<external>> { +nlay / nrow / ncol +delr / delc +top / botm +xoff / yoff +xvertices / yvertices } } package "Downstream adapters" { class SGridMeshAdapter <<adapter>> { +extract_structured_vertices(sgrid) +build_field_mesh_from_sgrid(sgrid) } class StructuredFieldMesh <<field mesh>> class SGridFieldParamDiscretizer <<adapter>> { +discretize_fieldparam_on_sgrid(..., sgrid, ...) } } note top of StructuredGridBuilder Single responsibility: - validate top/bottom compatibility - compute vertical layering - instantiate FloPy StructuredGrid end note Surface --> RasterSupport : carries support metadata StructuredGridBuilder ..> Surface : reads top_surface\nand bottom_surface StructuredGridBuilder ..> VerticalGridConfig : reads layering rules StructuredGridBuilder --> StructuredGrid : builds SGridMeshAdapter ..> StructuredGrid : reads XY geometry SGridMeshAdapter --> StructuredFieldMesh : builds planar mesh SGridFieldParamDiscretizer ..> StructuredGrid : reads top/botm\nand grid dimensions @enduml

Notes:

  • StructuredGrid itself belongs to FloPy. The diagram focuses on the HydroModPy classes that prepare or consume it.

  • SGridConfig, RasterGridReader, and PlanarDiscretizer are not shown here on purpose; they belong to the build sequence below.

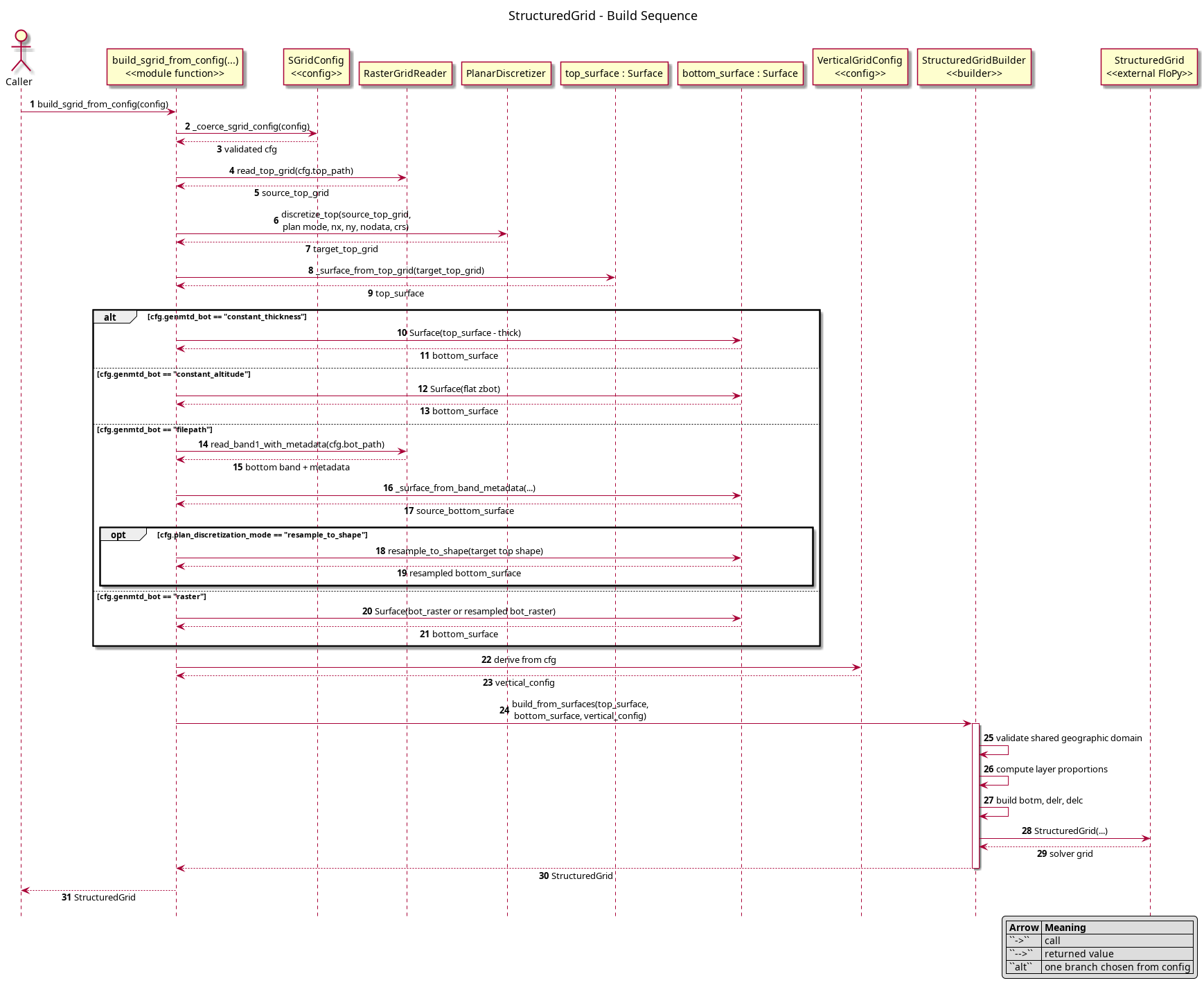

Build sequence#

The dynamic workflow that turns one user-facing SGrid config payload into one FloPy StructuredGrid: validation and normalisation of SGridConfig, top-surface loading and planar discretisation, the branches that resolve the bottom surface, and the final handoff to StructuredGridBuilder.

Reading guide:

  • -> means a call.

  • --> means a returned value.

  • alt blocks show the mutually exclusive bottom-surface strategies driven by cfg.genmtd_bot.

@startuml title StructuredGrid - Build Sequence autonumber hide footbox skinparam sequenceMessageAlign center skinparam responseMessageBelowArrow true legend right |= Arrow |= Meaning | | ``->`` | call | | ``-->`` | returned value | | ``alt`` | one branch chosen from config | endlegend actor Caller participant "build_sgrid_from_config(...)\n<<module function>>" as Factory participant "SGridConfig\n<<config>>" as Cfg participant "RasterGridReader" as Reader participant "PlanarDiscretizer" as Discretizer participant "top_surface : Surface" as TopSurface participant "bottom_surface : Surface" as BottomSurface participant "VerticalGridConfig\n<<config>>" as VerticalCfg participant "StructuredGridBuilder\n<<builder>>" as Builder participant "StructuredGrid\n<<external FloPy>>" as Grid Caller -> Factory: build_sgrid_from_config(config) Factory -> Cfg: _coerce_sgrid_config(config) Cfg --> Factory: validated cfg Factory -> Reader: read_top_grid(cfg.top_path) Reader --> Factory: source_top_grid Factory -> Discretizer: discretize_top(source_top_grid,\nplan mode, nx, ny, nodata, crs) Discretizer --> Factory: target_top_grid Factory -> TopSurface: _surface_from_top_grid(target_top_grid) TopSurface --> Factory: top_surface alt cfg.genmtd_bot == "constant_thickness" Factory -> BottomSurface: Surface(top_surface - thick) BottomSurface --> Factory: bottom_surface else cfg.genmtd_bot == "constant_altitude" Factory -> BottomSurface: Surface(flat zbot) BottomSurface --> Factory: bottom_surface else cfg.genmtd_bot == "filepath" Factory -> Reader: read_band1_with_metadata(cfg.bot_path) Reader --> Factory: bottom band + metadata Factory -> BottomSurface: _surface_from_band_metadata(...) BottomSurface --> Factory: source_bottom_surface opt cfg.plan_discretization_mode == "resample_to_shape" Factory -> BottomSurface: resample_to_shape(target top shape) BottomSurface --> Factory: resampled bottom_surface end else cfg.genmtd_bot == "raster" Factory -> BottomSurface: Surface(bot_raster or resampled bot_raster) BottomSurface --> Factory: bottom_surface end Factory -> VerticalCfg: derive from cfg VerticalCfg --> Factory: vertical_config Factory -> Builder: build_from_surfaces(top_surface,\nbottom_surface, vertical_config) activate Builder Builder -> Builder: validate shared geographic domain Builder -> Builder: compute layer proportions Builder -> Builder: build botm, delr, delc Builder -> Grid: StructuredGrid(...) Grid --> Builder: solver grid Builder --> Factory: StructuredGrid deactivate Builder Factory --> Caller: StructuredGrid @enduml

Notes:

  • build_sgrid_from_config(...) owns config resolution and surface preparation.

  • StructuredGridBuilder stays narrower: it validates top/bottom geometric consistency, computes vertical layering, and instantiates the FloPy grid.

SGrid / FieldParam discretization#

How HydroModPy bridges FloPy StructuredGrid (solver side), planar field meshes (field/geology side), and Field / FieldParam value mapping for solver-ready arrays.

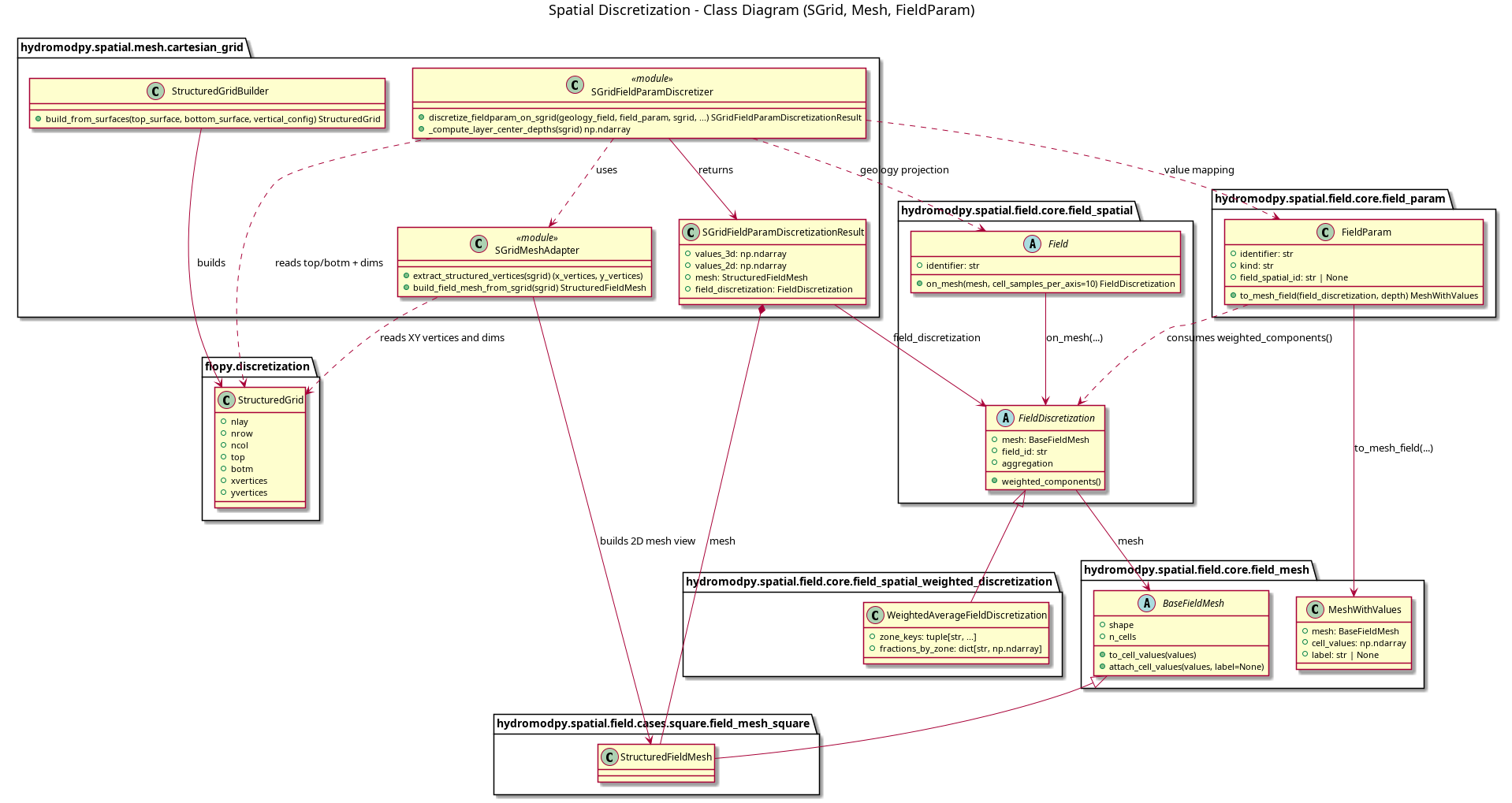

Class view:

@startuml title Spatial Discretization - Class Diagram (SGrid, Mesh, FieldParam) package "flopy.discretization" { class StructuredGrid { +nlay +nrow +ncol +top +botm +xvertices +yvertices } } package "hydromodpy.spatial.mesh.cartesian_grid" { class StructuredGridBuilder { +build_from_surfaces(top_surface, bottom_surface, vertical_config) StructuredGrid } class SGridMeshAdapter <<module>> { +extract_structured_vertices(sgrid) (x_vertices, y_vertices) +build_field_mesh_from_sgrid(sgrid) StructuredFieldMesh } class SGridFieldParamDiscretizer <<module>> { +discretize_fieldparam_on_sgrid(geology_field, field_param, sgrid, ...) SGridFieldParamDiscretizationResult +_compute_layer_center_depths(sgrid) np.ndarray } class SGridFieldParamDiscretizationResult { +values_3d: np.ndarray +values_2d: np.ndarray +mesh: StructuredFieldMesh +field_discretization: FieldDiscretization } } package "hydromodpy.spatial.field.core.field_mesh" { abstract class BaseFieldMesh { +shape +n_cells +to_cell_values(values) +attach_cell_values(values, label=None) } class MeshWithValues { +mesh: BaseFieldMesh +cell_values: np.ndarray +label: str | None } } package "hydromodpy.spatial.field.cases.square.field_mesh_square" { class StructuredFieldMesh } package "hydromodpy.spatial.field.core.field_spatial" { abstract class Field { +identifier: str +on_mesh(mesh, cell_samples_per_axis=10) FieldDiscretization } abstract class FieldDiscretization { +mesh: BaseFieldMesh +field_id: str +aggregation +weighted_components() } } package "hydromodpy.spatial.field.core.field_spatial_weighted_discretization" { class WeightedAverageFieldDiscretization { +zone_keys: tuple[str, ...] +fractions_by_zone: dict[str, np.ndarray] } } package "hydromodpy.spatial.field.core.field_param" { class FieldParam { +identifier: str +kind: str +field_spatial_id: str | None +to_mesh_field(field_discretization, depth) MeshWithValues } } BaseFieldMesh <|-- StructuredFieldMesh StructuredGridBuilder --> StructuredGrid : builds SGridMeshAdapter ..> StructuredGrid : reads XY vertices and dims SGridMeshAdapter --> StructuredFieldMesh : builds 2D mesh view Field --> FieldDiscretization : on_mesh(...) FieldDiscretization <|-- WeightedAverageFieldDiscretization FieldDiscretization --> BaseFieldMesh : mesh FieldParam ..> FieldDiscretization : consumes weighted_components() FieldParam --> MeshWithValues : to_mesh_field(...) SGridFieldParamDiscretizer ..> SGridMeshAdapter : uses SGridFieldParamDiscretizer ..> StructuredGrid : reads top/botm + dims SGridFieldParamDiscretizer ..> Field : geology projection SGridFieldParamDiscretizer ..> FieldParam : value mapping SGridFieldParamDiscretizer --> SGridFieldParamDiscretizationResult : returns SGridFieldParamDiscretizationResult *-- StructuredFieldMesh : mesh SGridFieldParamDiscretizationResult --> FieldDiscretization : field_discretization @enduml

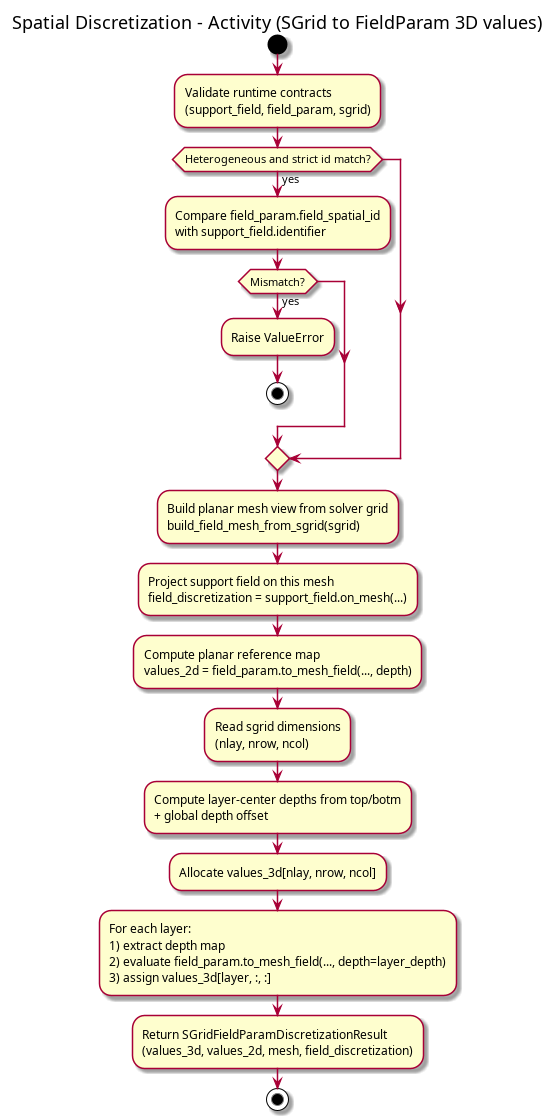

Activity view:

@startuml title Spatial Discretization - Activity (SGrid to FieldParam 3D values) start :Validate runtime contracts\n(support_field, field_param, sgrid); if (Heterogeneous and strict id match?) then (yes) :Compare field_param.field_spatial_id\nwith support_field.identifier; if (Mismatch?) then (yes) :Raise ValueError; stop endif endif :Build planar mesh view from solver grid\nbuild_field_mesh_from_sgrid(sgrid); :Project support field on this mesh\nfield_discretization = support_field.on_mesh(...); :Compute planar reference map\nvalues_2d = field_param.to_mesh_field(..., depth); :Read sgrid dimensions\n(nlay, nrow, ncol); :Compute layer-center depths from top/botm\n+ global depth offset; :Allocate values_3d[nlay, nrow, ncol]; :For each layer:\n1) extract depth map\n2) evaluate field_param.to_mesh_field(..., depth=layer_depth)\n3) assign values_3d[layer, :, :]; :Return SGridFieldParamDiscretizationResult\n(values_3d, values_2d, mesh, field_discretization); stop @enduml
