Site 03 Natural N1 10Km2 Mf6 Bouss

Note

This page and its static assets are auto-generated by python -m tools.doc_gallery. The Sphinx build only reads committed PNG and JSON artifacts.

This page republishes reviewed artifacts from site_03_natural_n1_10km2_mf6_bouss. The gallery generation reads committed comparison outputs only; heavy solver runs are refreshed separately before publication.

See also

Read the gallery and validation reading guide if you want the parameter mapping, a recommended reading order, and the first modifications to try.

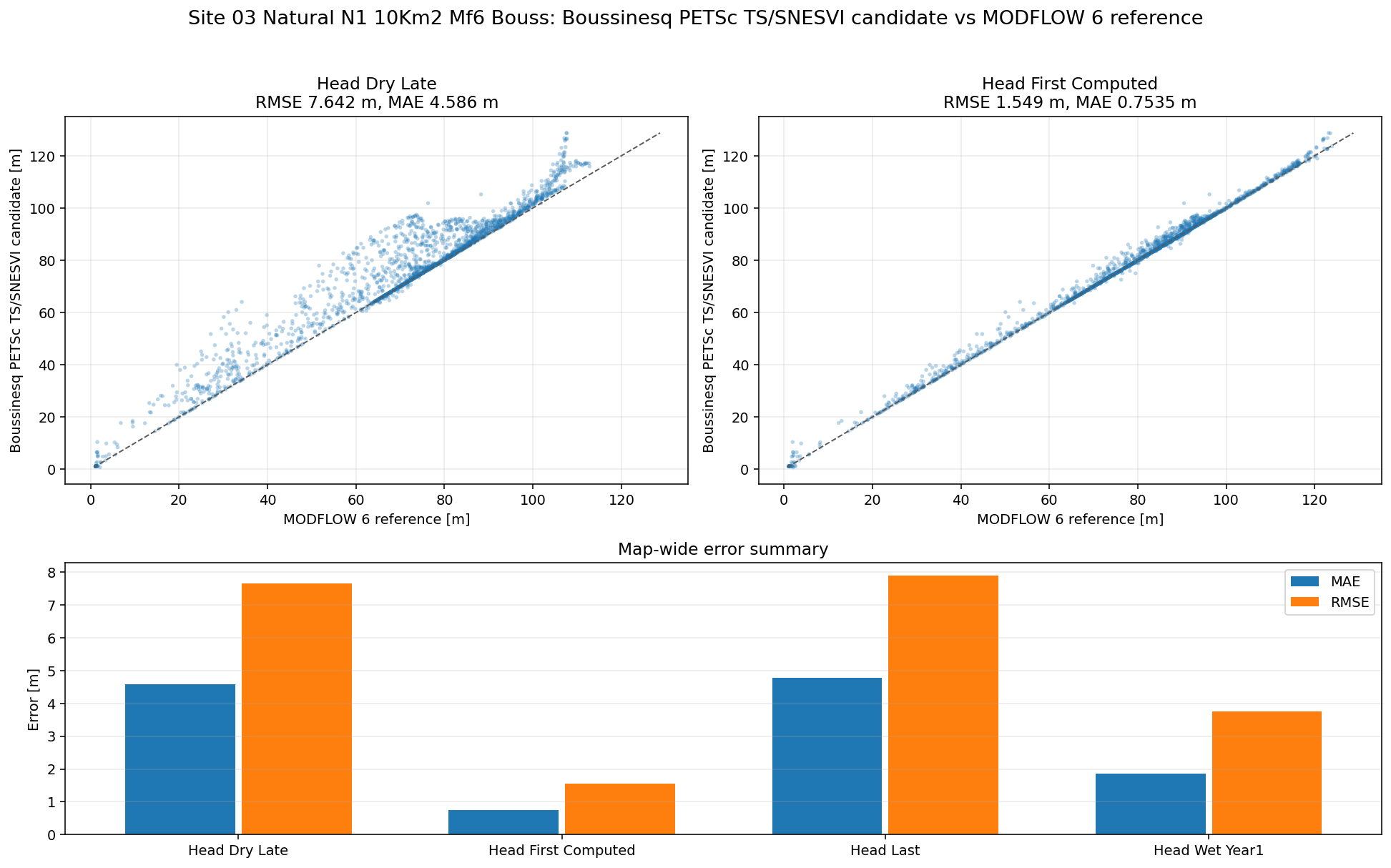

Summary comparison figure for site 03 natural n1 10km2 mf6 bouss.

Case Setup

• Reference simulation: mf6_ref.

• Focus simulation: bouss_candidate.

• Input artifacts are copied from a reviewed comparison output directory.

What It Shows

• How bouss_candidate compares against the mf6_ref reference.

• How map metrics and runtime diagnostics can be published from stable artifacts.

• How documentation pages can be regenerated without rerunning heavy simulations.

Key Parameters

• The published comparison root provides comparison_manifest.json and summary_metrics.csv.

• Execution-time diagnostics should use solver flow time, not whole workflow wall time.

How To Read It

• Read the metrics as a reviewed solver-to-solver comparison, not as a validation benchmark.

• Use the source pointers and optional source manifest to decide when the bundle needs refresh.

Key Metrics

• Head Dry Late RMSE: 7.642 m

• Head Dry Late MAE: 4.586 m

• Head First Computed RMSE: 1.549 m

• Head First Computed MAE: 0.7535 m

• Head Last RMSE: 7.886 m

• Head Last MAE: 4.781 m

• Head Wet Year1 RMSE: 3.759 m

• Head Wet Year1 MAE: 1.861 m

Next Steps

• Use the gallery and validation reading guide to distinguish example pages, comparison pages, and validation pages.

• Go back to the simulation walkthrough when you need to inspect one contributing run in isolation.

Reproduce

Run the underlying example or validation case with:

python -m tools.doc_gallery --only site_03_natural_n1_10km2_mf6_bouss

Refresh the committed gallery artifacts with:

python -m tools.doc_gallery

Source Pointers

• examples/projects/09_capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss/case.json

• examples/projects/09_capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss/comparison_manifest.json

• examples/projects/09_capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss/summary_metrics.csv

Artifacts

• docs/source/_static/capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss.png

• docs/source/_static/capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss_comparison_manifest.json

• docs/source/_static/capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss_summary_metrics.csv

• docs/source/_static/capability_gallery/simulation_comparison/site_03_natural_n1_10km2_mf6_bouss_summary.json stores the displayed metrics plus source hashes used by python -m tools.doc_gallery --check.
