Boussinesq Hillslope Interception 1D#

Note

This page and its static assets are auto-generated by python -m tools.doc_gallery. The Sphinx build only reads committed PNG and JSON artifacts.

Steady synthetic groundwater-flow case used to validate the PETSc VI obstacle flow/boussinesq runtime on a sloping hillslope where the water table reaches the land surface near the outlet.

Case Setup#

  • quasi-1D strip (40 x 3) with alternating triangle diagonals,

  • linear topography descending from 10 m to 5 m,

  • flat impermeable bottom at 0 m,

  • uniform recharge 2 mm/day,

  • homogeneous hydraulic conductivity 1e-4 m/s,

  • fixed head 5 m on the east side,

  • west side left as the natural divide/no-flow boundary.

  • Available solver variants: Boussinesq.

What It Shows#

  • validate the emergence/interception position on a topographic slope,

  • keep a closed-form inland Boussinesq profile on the dry part of the hillslope,

  • benchmark the hard surface-obstacle closure with a metric that remains physically meaningful for seepage onset.

  • Steady seepage/interception onset on a sloping hillslope with the dense in-house Boussinesq runtime

  • Primary metrics: interception-position error, topography-overshoot check, cross-row spread.

Analytical Reference#

  • reference: analytical no-drain steady Boussinesq recharge profile with west divide and east fixed head, intersected with the linear topography,

\[h(x)^2=h_e^2+\frac{R}{K}\left(L^2-x^2\right)\]
\[z_{\mathrm{top}}(x)=z_{\mathrm{toe}}+S\left(L-x\right),\qquad h(x_{\mathrm{int}})=z_{\mathrm{top}}(x_{\mathrm{int}})\]

Solver Coverage#

  • Default solver: Boussinesq

  • Available variants: Boussinesq

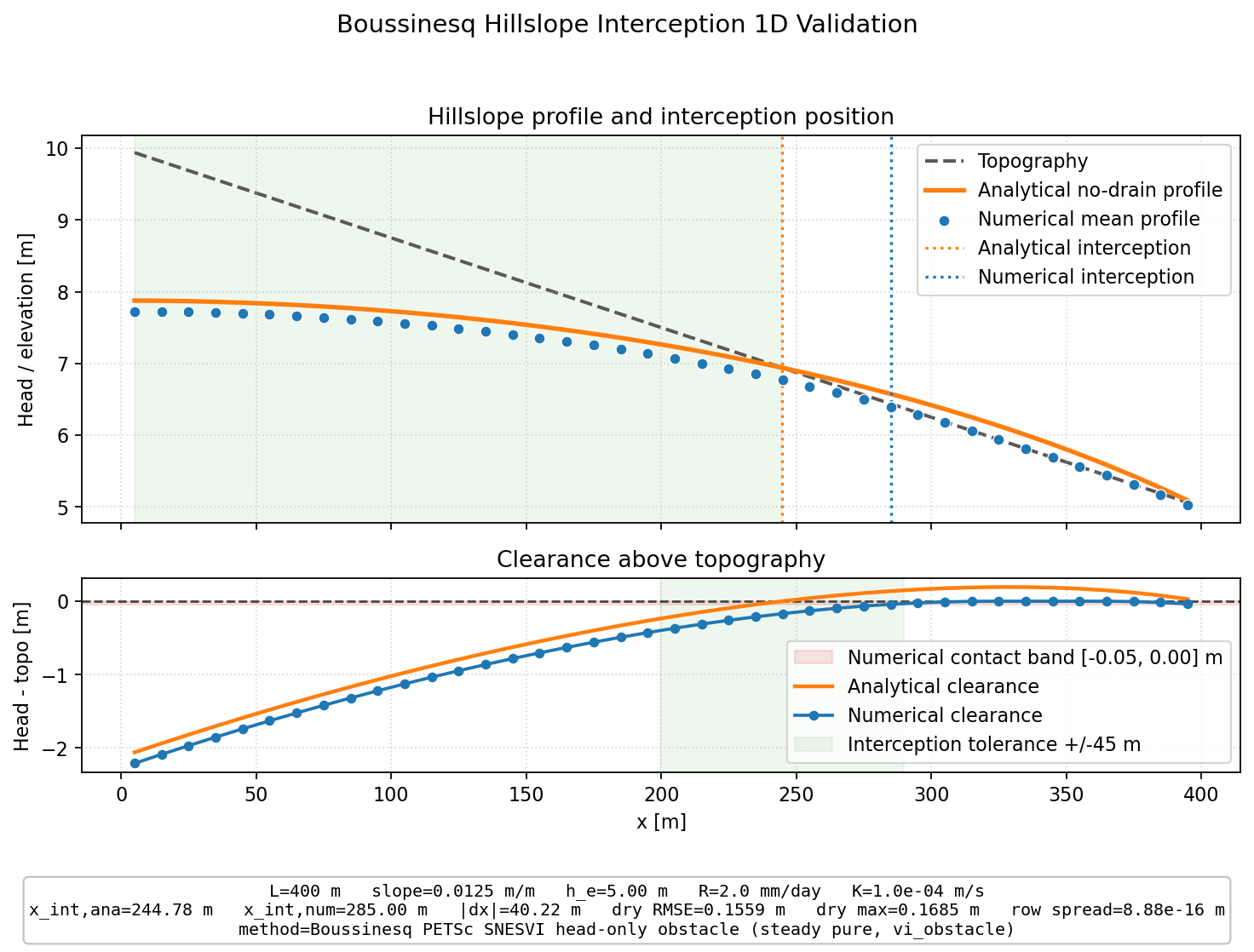

Boussinesq Hillslope Interception 1D validation figure for Boussinesq
Boussinesq Hillslope Interception 1D rendered with Boussinesq for the analytical gallery.

Metrics - Analytical interception x: 244.776 m - Numerical interception x: 285.000 m - Interception x error: 40.224 m - Diagnostic dry-zone RMSE: 0.1559 m - Diagnostic dry-zone max abs error: 0.1685 m - Cross-row head spread: 8.88e-16 m

  • Config file: validation_cases/analytical/steady/boussinesq_hillslope_interception_1d/config_boussinesq.toml

  • Tolerances: validation_cases/analytical/steady/boussinesq_hillslope_interception_1d/tolerances.toml

  • Expected shape: 3 x 40

python -m validation_cases.analytical.steady.boussinesq_hillslope_interception_1d.run_case --no-show

Reproduce#

Run the underlying example or validation case with:

python -m validation_cases.analytical.steady.boussinesq_hillslope_interception_1d.run_case --no-show

Refresh the committed gallery artifacts with:

python -m tools.doc_gallery
