Irregular Mesh Conductivity Mapping#

Note

This page and its static assets are auto-generated by python -m tools.doc_gallery. The Sphinx build only reads committed PNG and JSON artifacts.

This case reuses the synthetic square field but maps it onto an irregular triangular mesh alongside a structured baseline. The comparison highlights how the same property definition behaves on irregular supports.

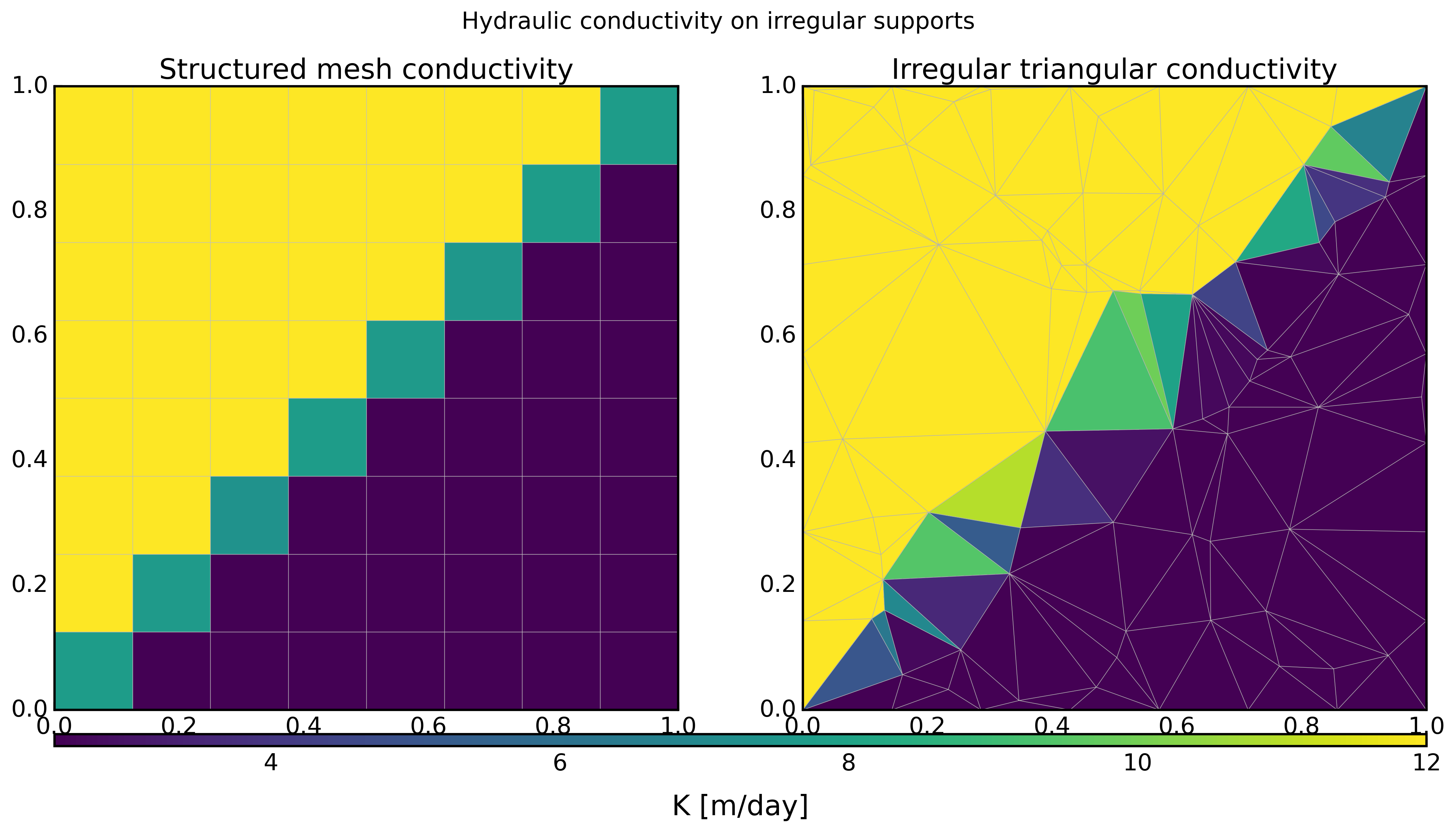

Hydraulic conductivity mapped on structured and irregular triangular meshes
Structured versus irregular triangular conductivity maps for the same field.

Case Setup#

  • Unit-square domain split into granite and micaschist zones.

  • Structured baseline generated with 64 target cells.

  • Irregular triangular mesh generated with a fixed random seed.

What It Shows#

  • How heterogeneous K values transfer onto an irregular triangular mesh.

  • How the same field looks on a structured baseline for visual comparison.

  • How irregular supports preserve zone contrasts while adapting to stochastic cell layout.

Key Metrics#

  • Structured cells: 64

  • Irregular cells: 160

  • Minimum K: 2.5 m/day

  • Maximum K: 12.0 m/day

Reproduce#

Run the underlying example or validation case with:

python -m tools.doc_gallery

Refresh the committed gallery artifacts with:

python -m tools.doc_gallery

Case Parameters#

Selected Parameters#

Field

Meaning

Value

Source

property_case_kind

Hydraulic-property rendering mode used to build this gallery figure.

irregular_mesh

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

parameter_ids

Hydraulic parameters illustrated by the case.

K

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

parameterization_modes

Parameterization modes intentionally demonstrated by the case.

heterogeneous

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

supports

Spatial supports used to render the field or compare variants.

structured, triangular_unstructured

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

Displayed Values#

Field

Meaning

Value

Source

structured_cell_count

Metric displayed on this page.

64

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

irregular_cell_count

Metric displayed on this page.

160

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

k_min_m_per_day

Metric displayed on this page.

2.5 m/day

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

k_max_m_per_day

Metric displayed on this page.

12.0 m/day

docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json

Source Pointers#

  • hydromodpy/spatial/field/core/field_param.py

  • hydromodpy/spatial/field/cases/square/field_mesh_square.py

  • hydromodpy/spatial/field/cases/square/field_spatial_square.py

  • tests/unit/field/test_field_param.py

Artifacts#

  • docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh.png

  • docs/source/_static/capability_gallery/hydraulic_properties/hydraulic_conductivity_irregular_mesh_summary.json stores the displayed metrics plus source hashes used by python -m tools.doc_gallery --check.
